Standard XYR-axis Cross Guide Manual Translation Stage (MXYRP Series)

Model :


• MXYRP40-LB, MXYRP60-LB

1. The MXYRP series translation stages combine an MXY stage with an MRP stage, providing X, Y, and R axis translation.
2. They are primarily constructed of aluminum alloy and feature a black anodized finish, effectively preventing light reflection and providing excellent rust resistance.
3. The load capacity values  are for reference only. They may not be suitable for use under conditions of vibration, high loads, or other loads.
4. Instructions: Loosen the locking knob, adjust the drive mechanism (differential head) to the desired position, and then tighten the locking knob.

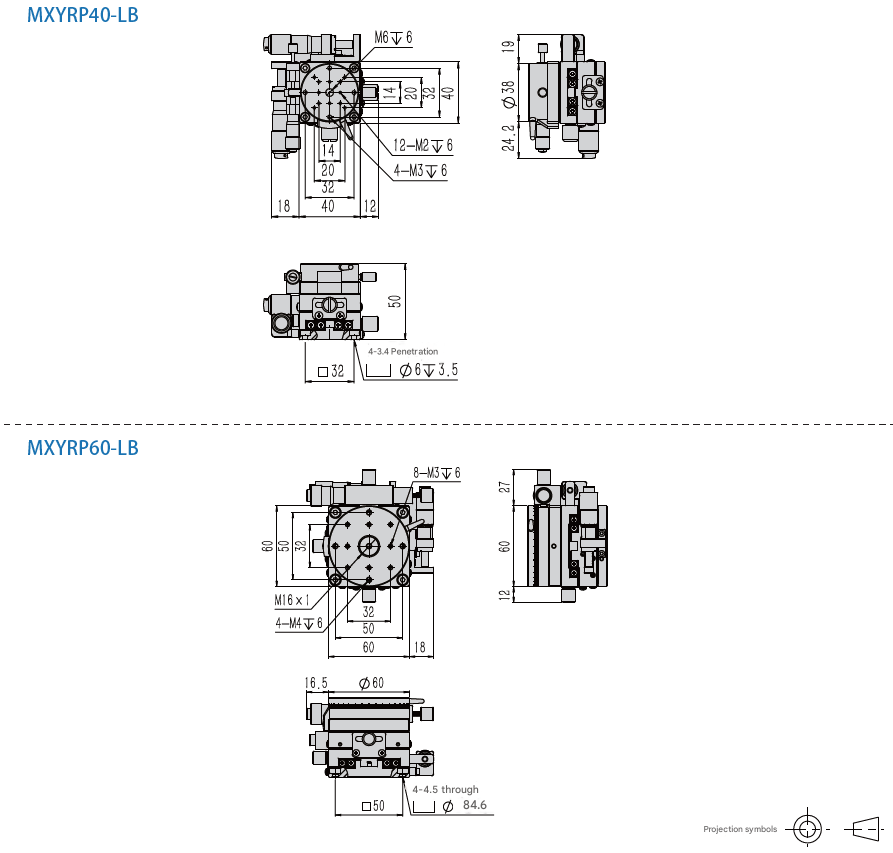

• MXYRP40-LB, MXYRP60-LB

• MXYRP40-LB, MXYRP60-LB
