PRECISION POSITIONING STAGE
Standard XYZ-axis Cross Guide Manual Translation Stage (MXYCZ Series)
Standard XYZ-axis Cross Guide Manual Translation Stage (MXYCZ Series)



Standard XYZ-axis Cross Guide Manual Translation Stage (MXYCZ Series)

SEM Equipment Sdn. Bhd. flag
分类: PRECISION POSITIONING STAGE 当前有货
欲了解更多详情，请游览我们的官方网站 sem-eq.com
游览官方网站 联络我们
详情




Model :







Features :

  1. The MXYCZ series translation stage is a combination of an MXY translation stage and an L-shaped adapter plate, providing X, Y, and Z axis translation.
  2. Constructed primarily of aluminum alloy, it features a black anodized finish that effectively prevents light reflection and offers excellent rust resistance.
  3. The load capacity values are for reference only. They may not be suitable for use under conditions of vibration, high loads, or other loads.
  4. Instructions: Loosen the locking knob, adjust the drive mechanism (differential head) to the desired position, and then tighten the locking knob.

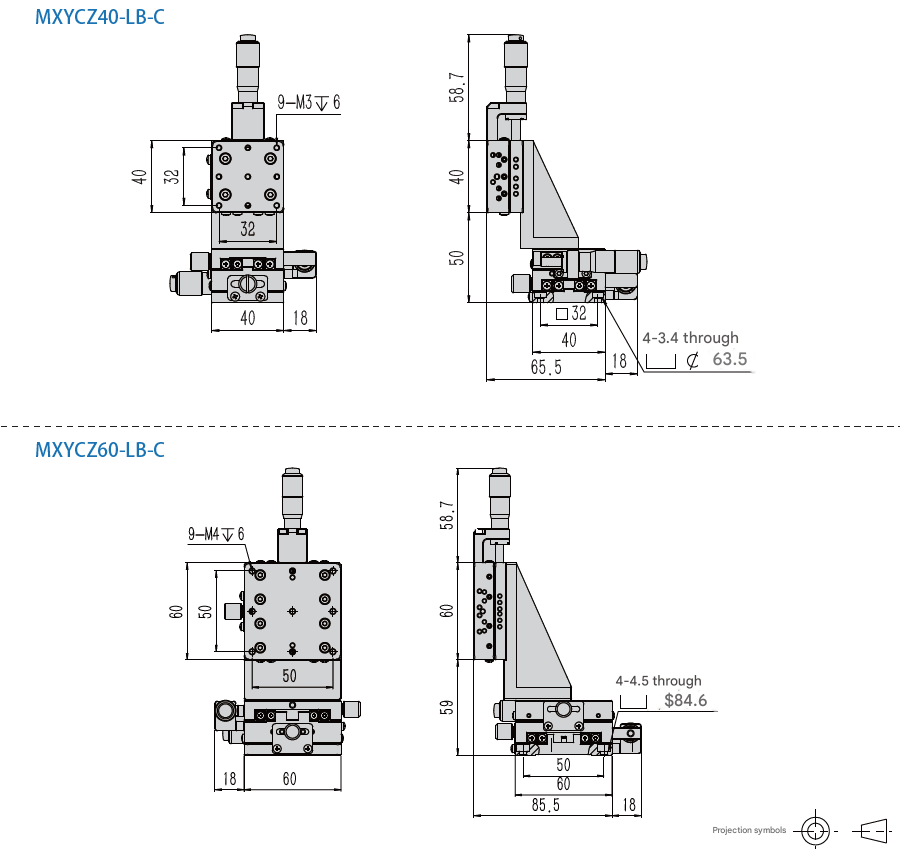

Dimension :







Specifications :


Model MXYCZ40-LB-C MXYZC60-LB-C
Moving direction XYZ axis
Main material Aluminum alloy
(black anodized)
Drive mode Differential head
Countertop size 40 mm × 40 mm 60 mm × 60 mm
Journey XY axis: ±6.5mm; Z axis: ±6.5mm
Load 19.6N (2kgf) 29.4N (3kgf)
Minimum read volume per centricard 0.01 mm
Body weight 0.49kg 0.93kg
