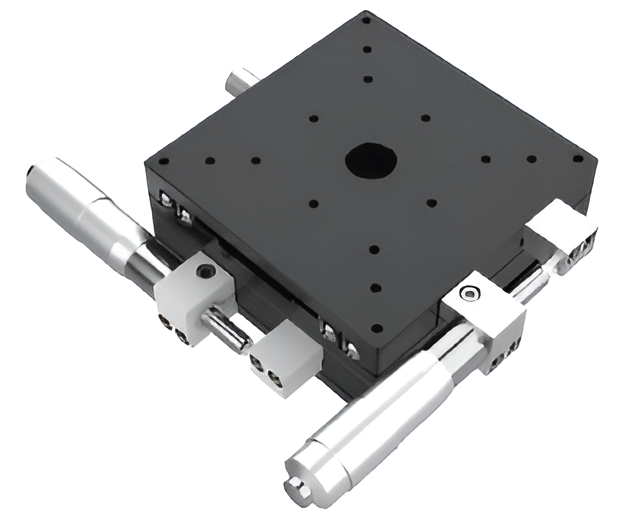

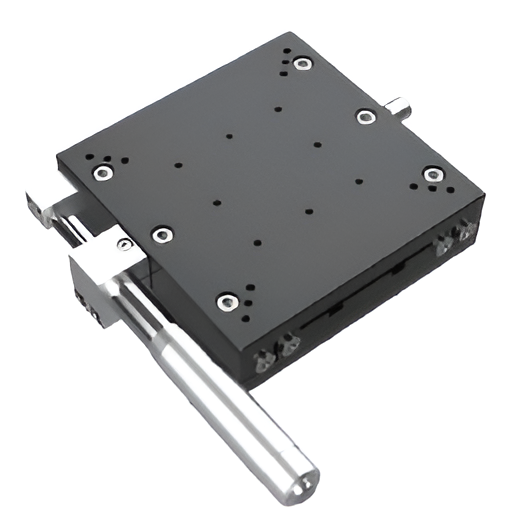

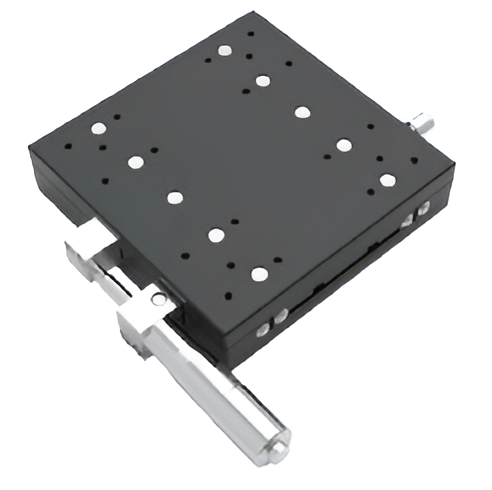

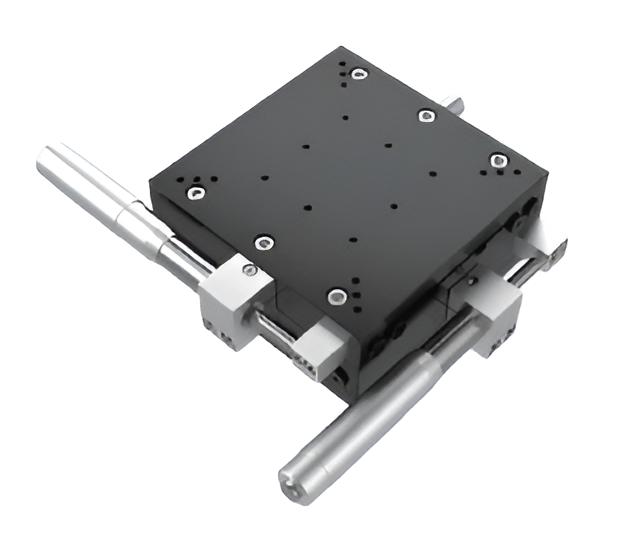

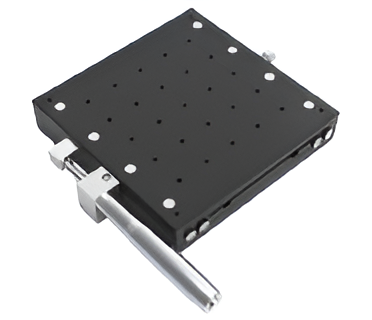

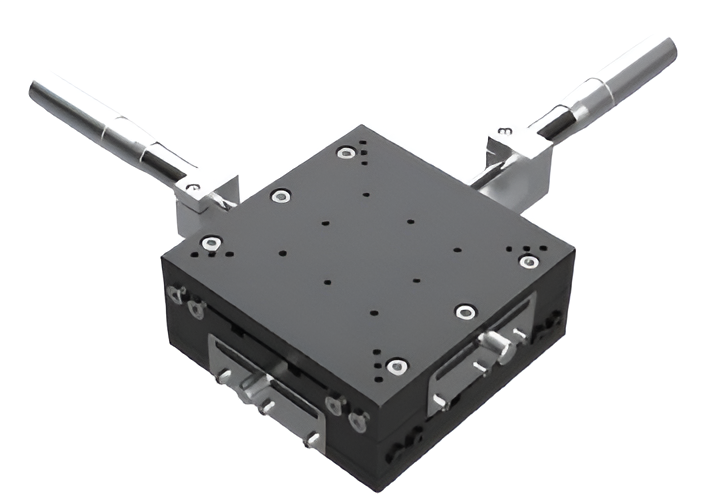

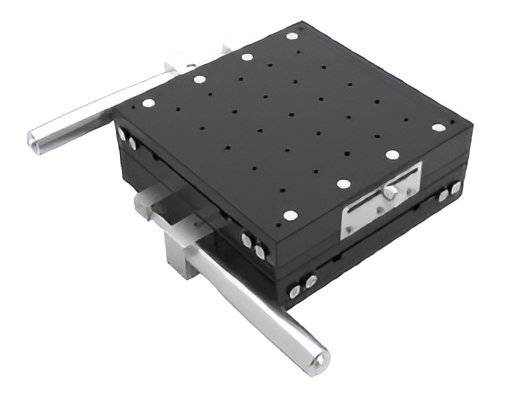

Standard X-axis Cross Guide Manual Translation Stage (MX & MXY Series)

详情

Model :


• MX40-C, MX40-L, MX40-R

• MXY40-C, MXY40-L, MXY40-R



• MX60-C, MX60-L, MX60-R



• MXY60-C, MXY60-L, MXY60-R



• MXY60-CB, MXY60-LB, MXY60-RB



• MXY60-CE, MXY60-LE, MXY60-RE



• MX80-C, MX80-L, MX80-R



• MXY80-C, MXY80-L, MXY80-R



• MX100-C, MX100-L, MX100-R



• MXY100-C, MXY100-L, MXY100-R



• MX120-C, MX120-L, MX120-R



• MXY120-C, MXY120-L, MXY120-R



• MXY120-CB, MXY120-LB, MXY120-RB



• MX125-C, MX125-L, MX125-R



• MXY125-C, MXY125-L, MXY125-R



• MX160-L, MX160-R



• MXY160-L, MXY160-R



---

Features :


1. The Crossed Roller Guide is a limited-travel linear guide featuring two 90-degree V-grooved rails with alternating, orthogonal cylindrical rollers.
2. This unique arrangement allows it to withstand moment loads in any direction, making it particularly suitable for linear guidance applications requiring high rigidity and flexible motion.
3. The Crossed Roller Guide is a limited-travel linear guide featuring two 90-degree V-grooved rails with alternating, orthogonal cylindrical rollers.
4. This unique arrangement allows it to withstand moment loads in any direction, making it particularly suitable for linear guidance applications requiring high rigidity and flexible motion.



---

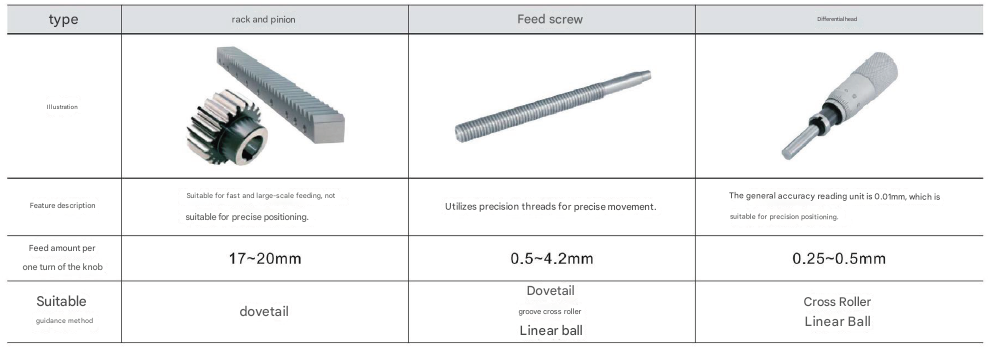

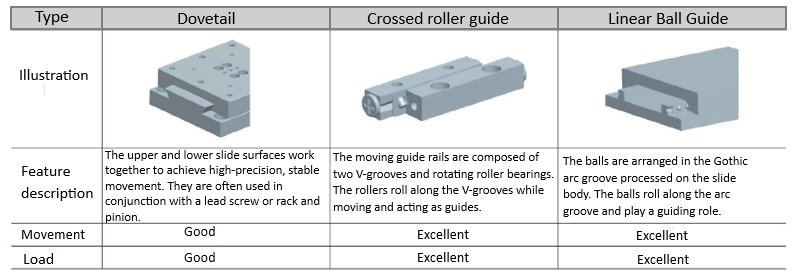

Types :



*Ranking: Excellent, Good, Fair






---

Dimension :

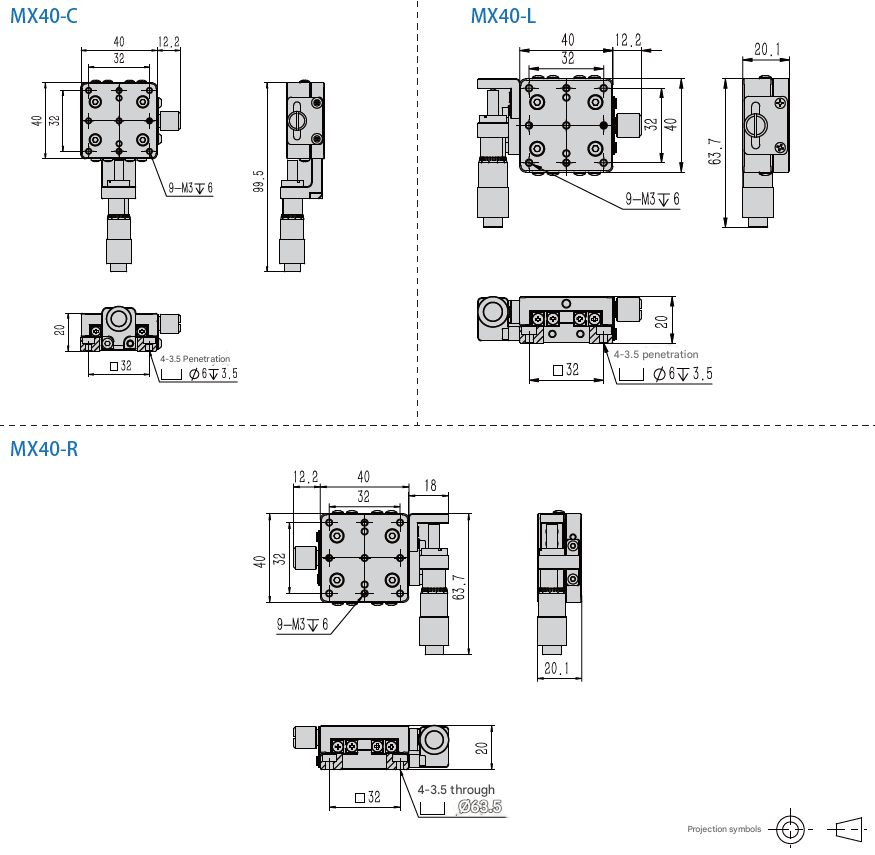

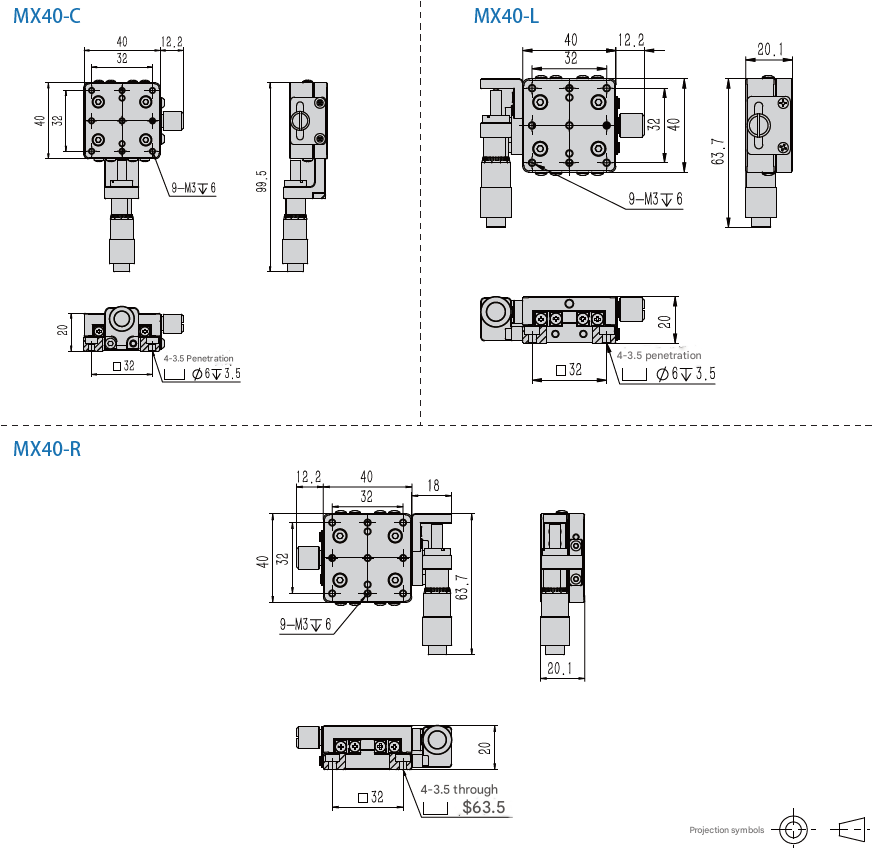

• MX40-C, MX40-L, MX40-R

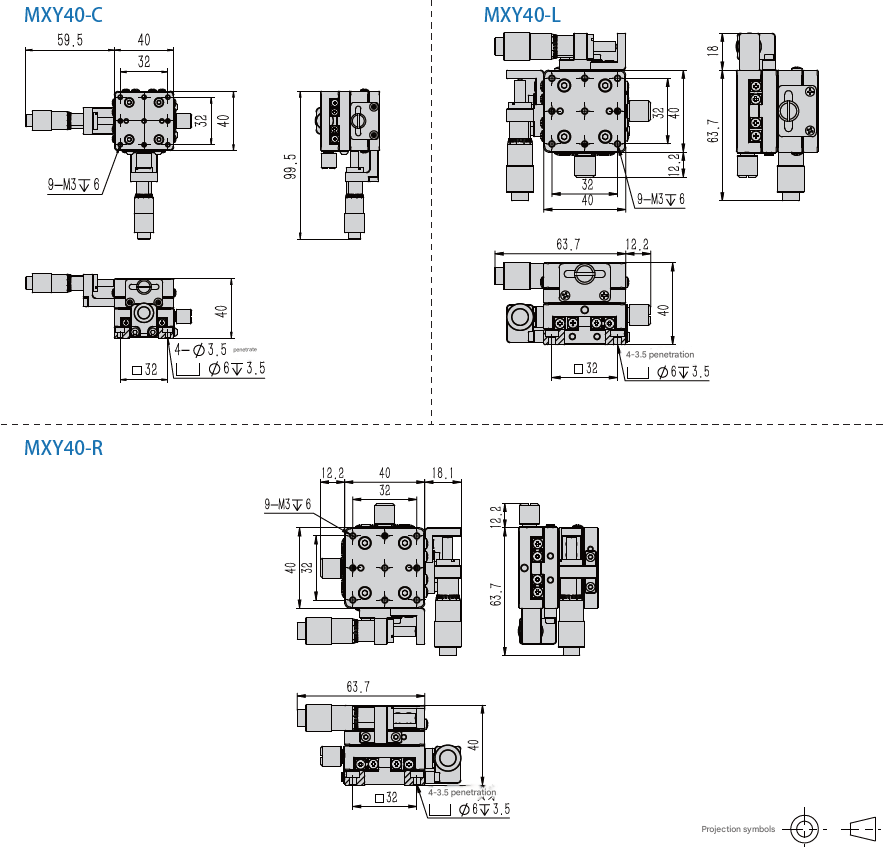

• MXY40-C, MXY40-L, MXY40-R



• MX60-C, MX60-L, MX60-R

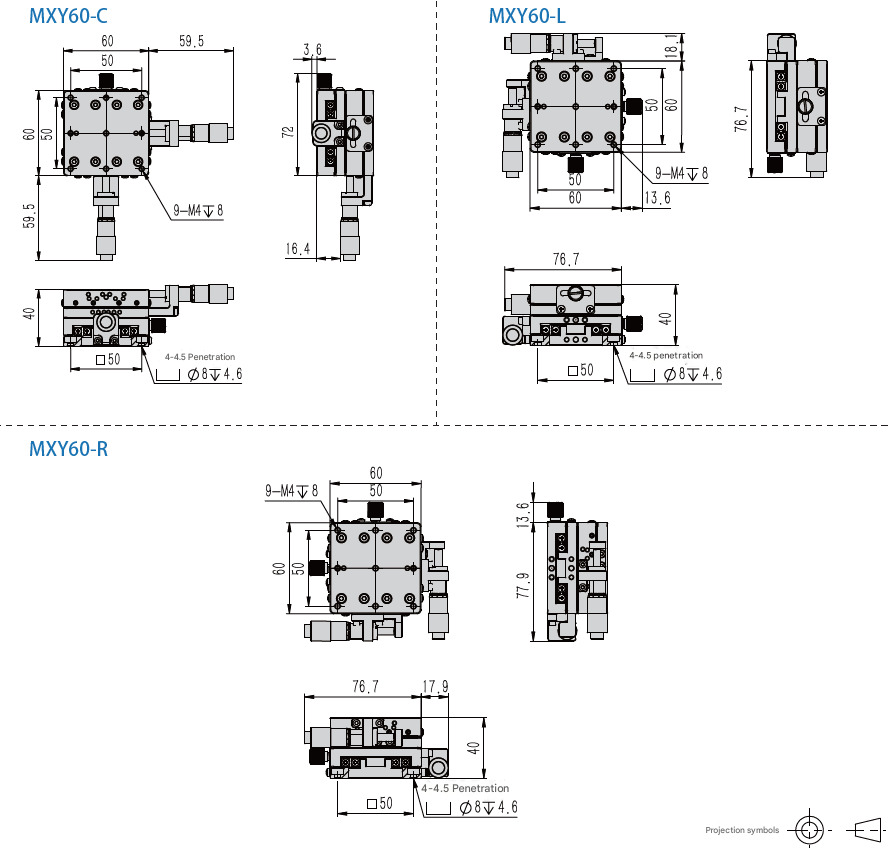

• MXY60-C, MXY60-L, MXY60-R



• MXY60-CB, MXY60-LB, MXY60-RB

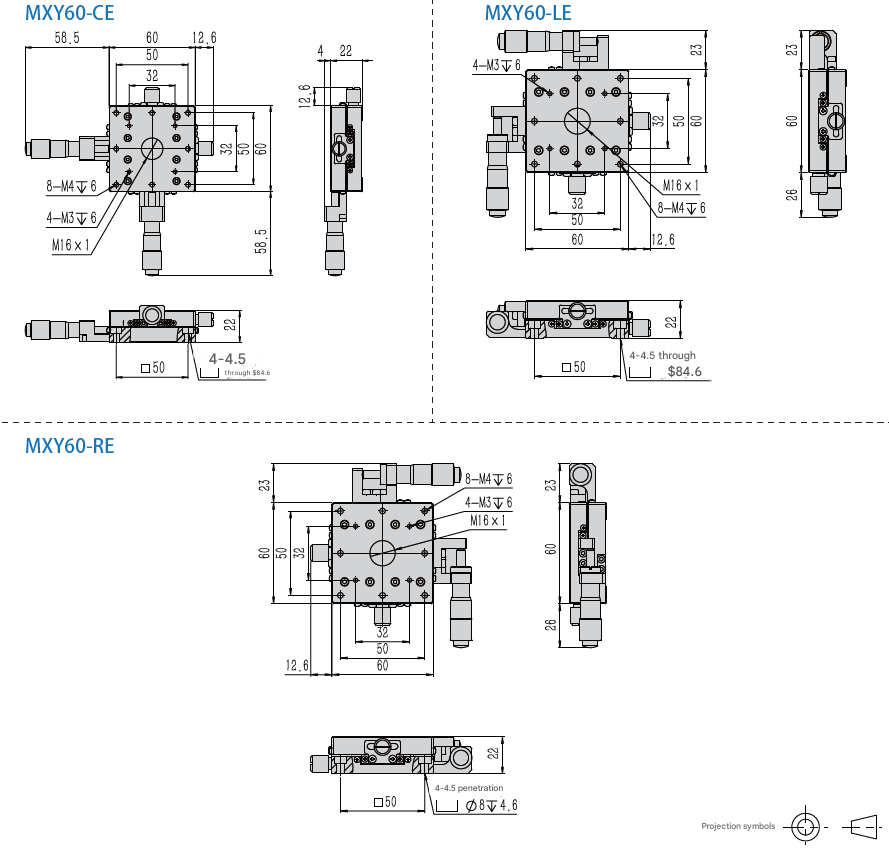

• MXY60-CE, MXY60-LE, MXY60-RE

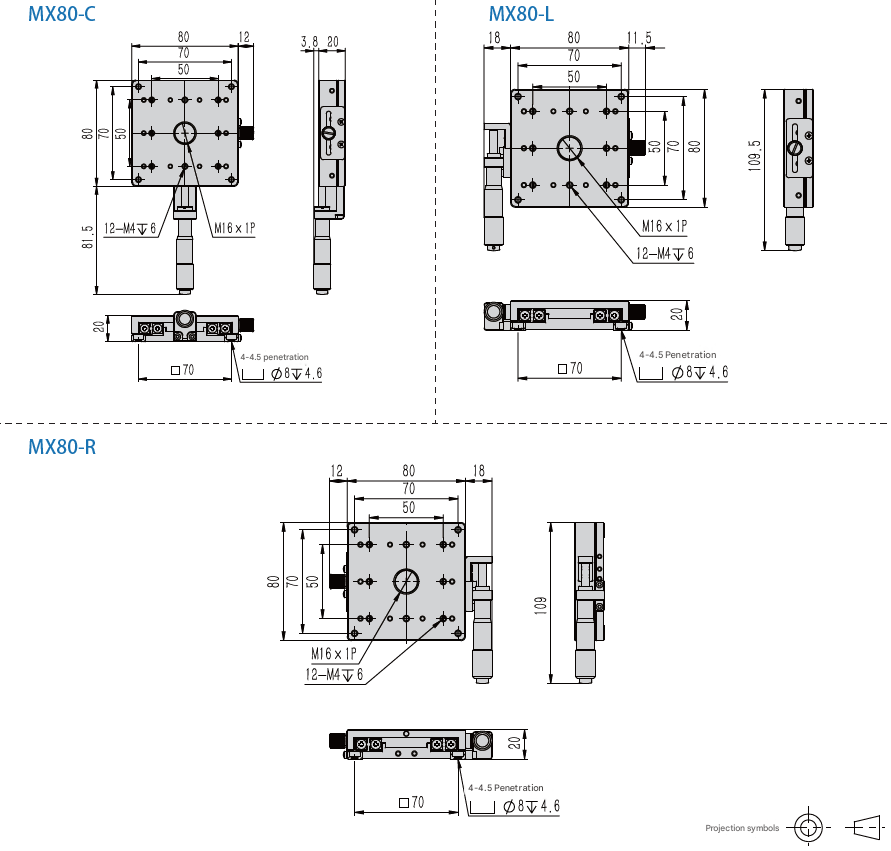

• MX80-C, MX80-L, MX80-R

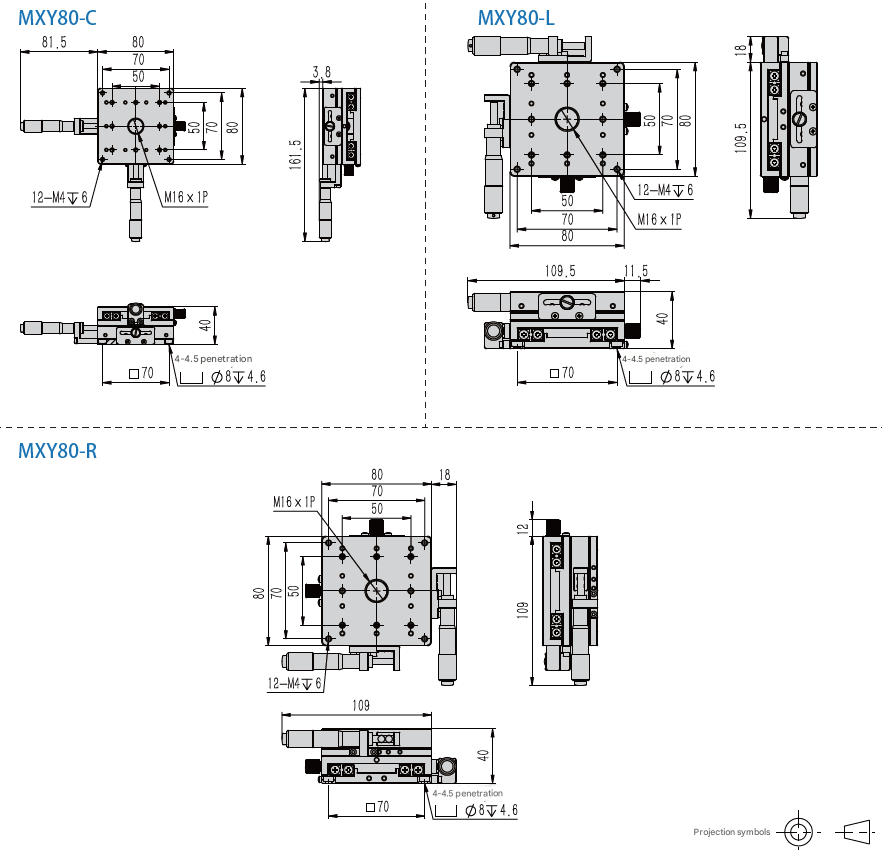

• MXY80-C, MXY80-L, MXY80-R

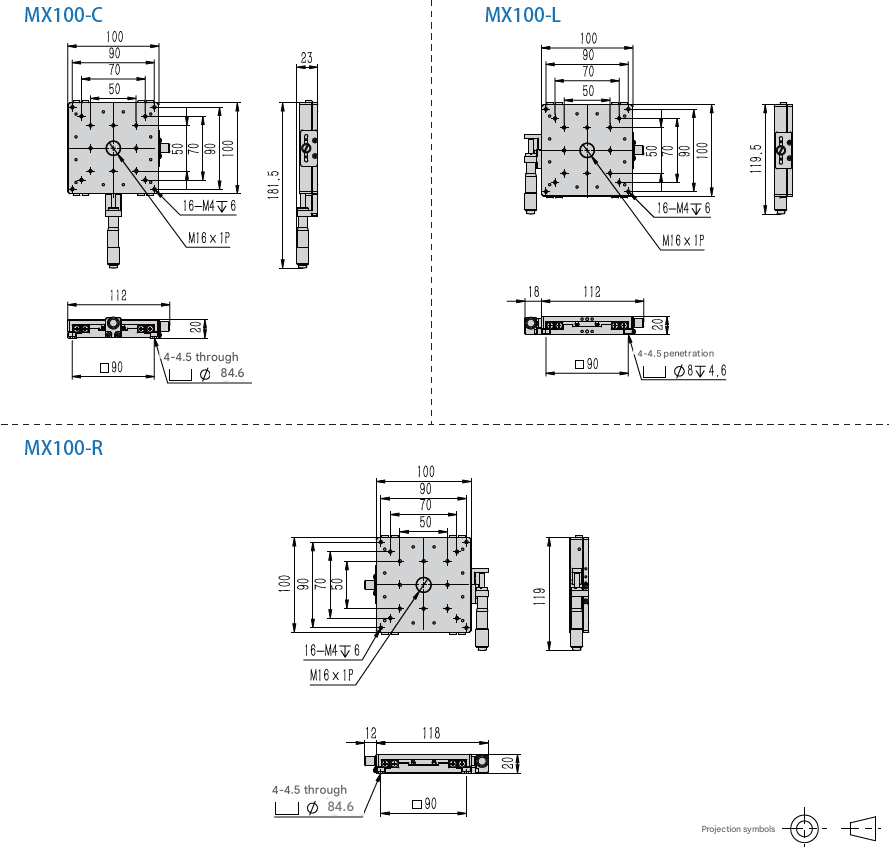

• MX100-C, MX100-L

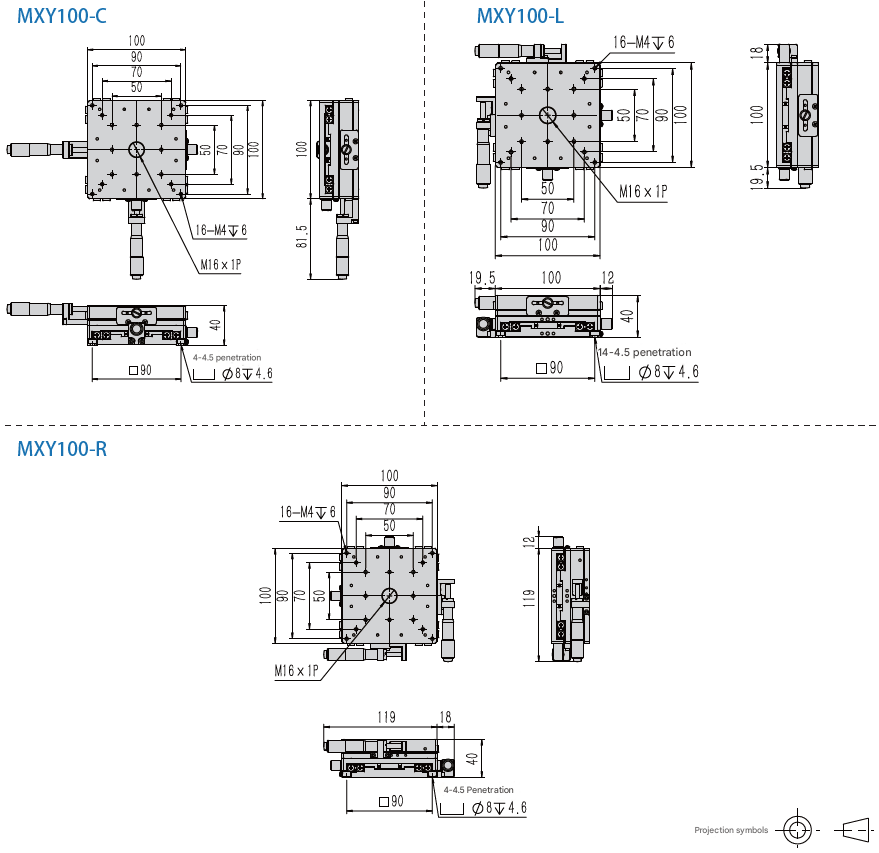

• MXY100-C, MXY100-L

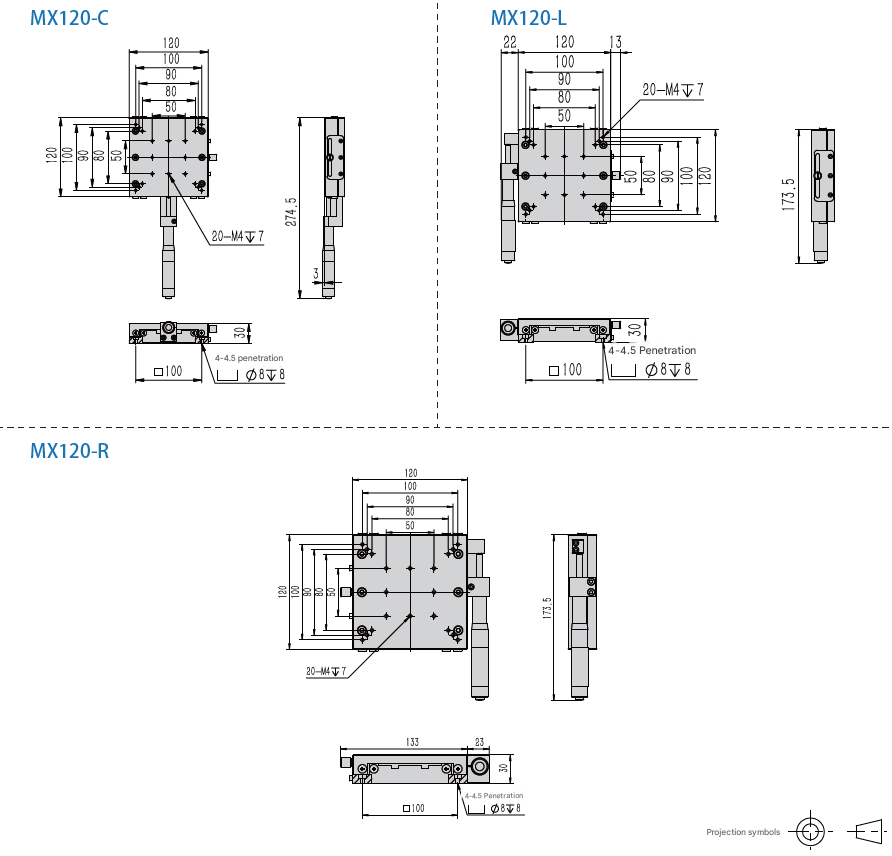

• MX120-C, MX120-L, MX120-R

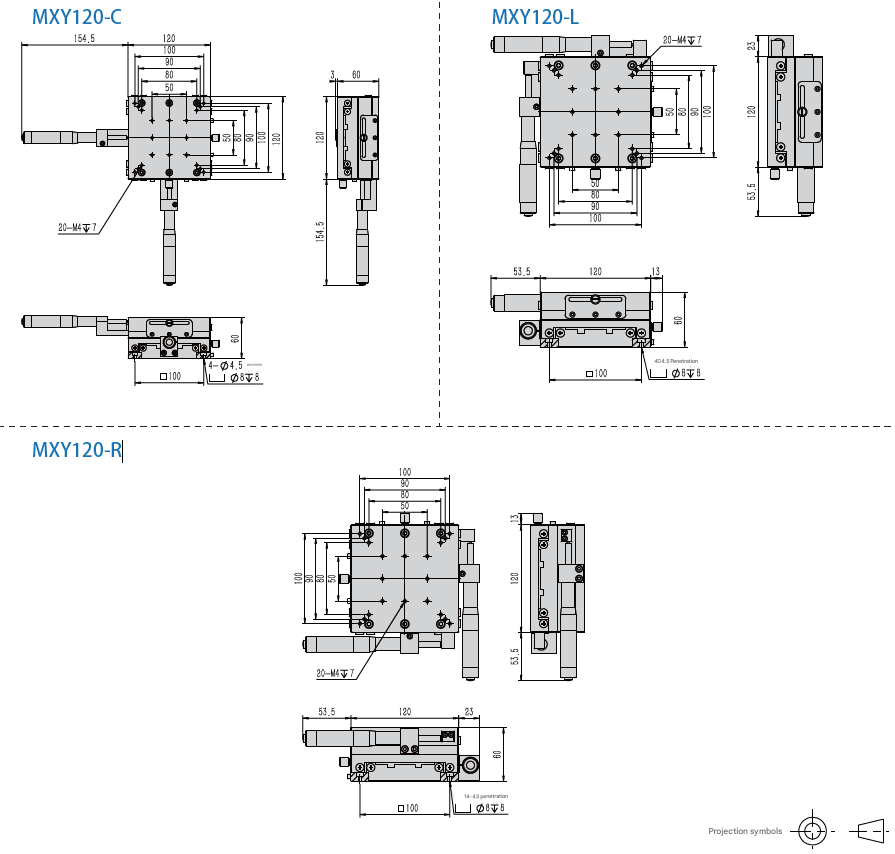

• MXY120-C, MXY120-L, MXY120-R

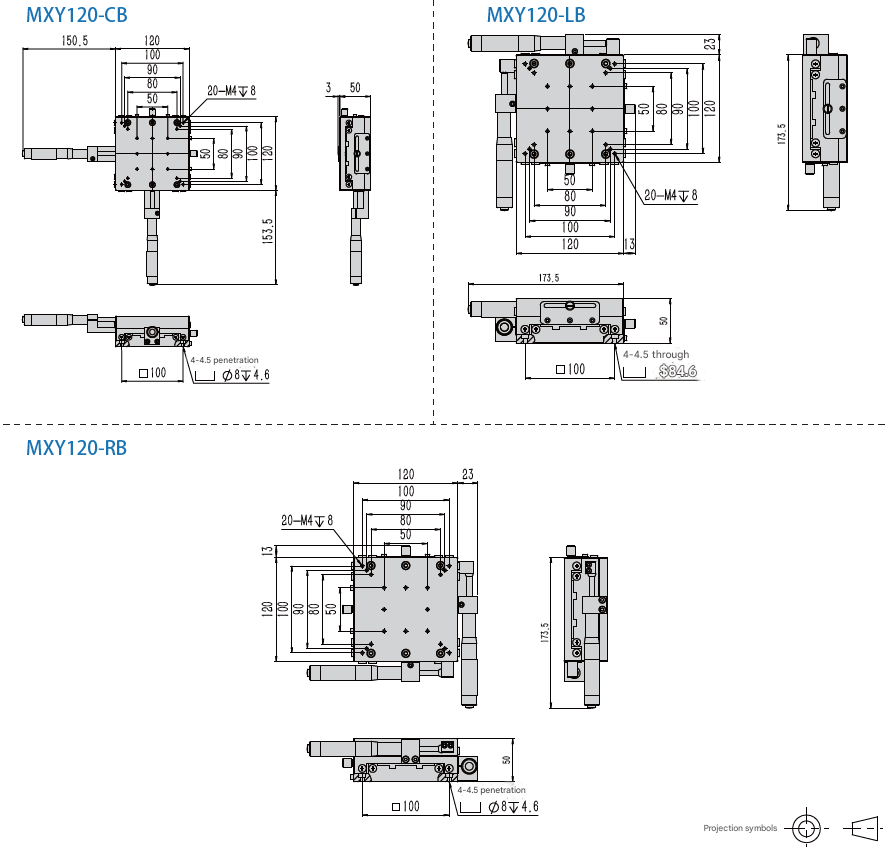

• MXY120-CB, MXY120-LB, MXY120-RB

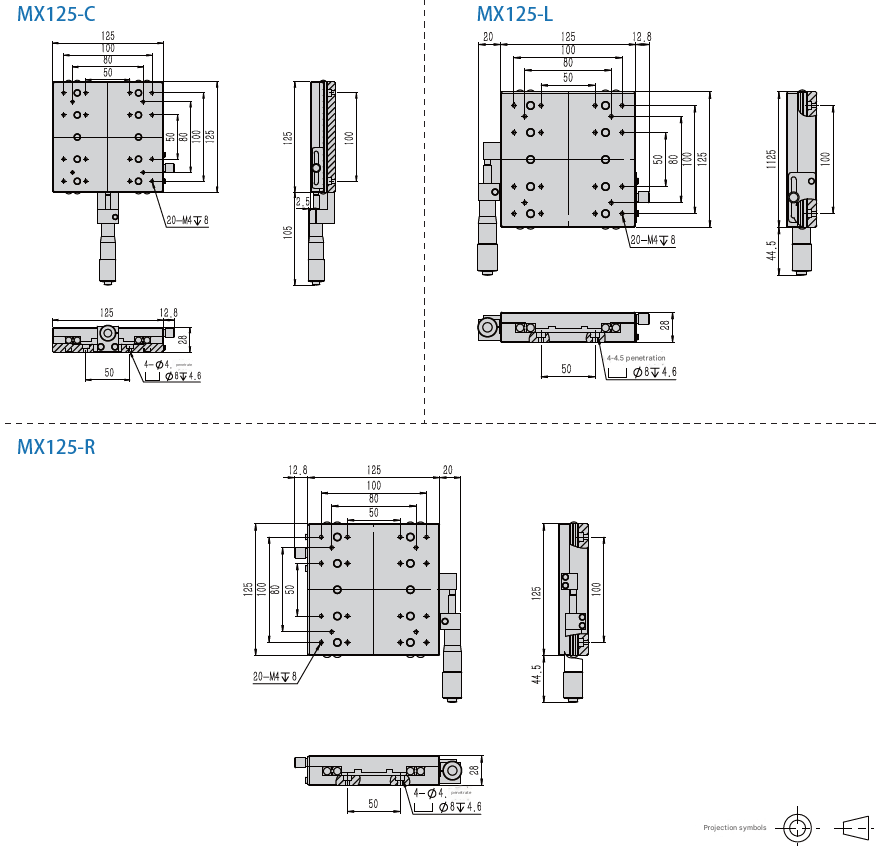

• MX125-C, MX125-L, MX125-R

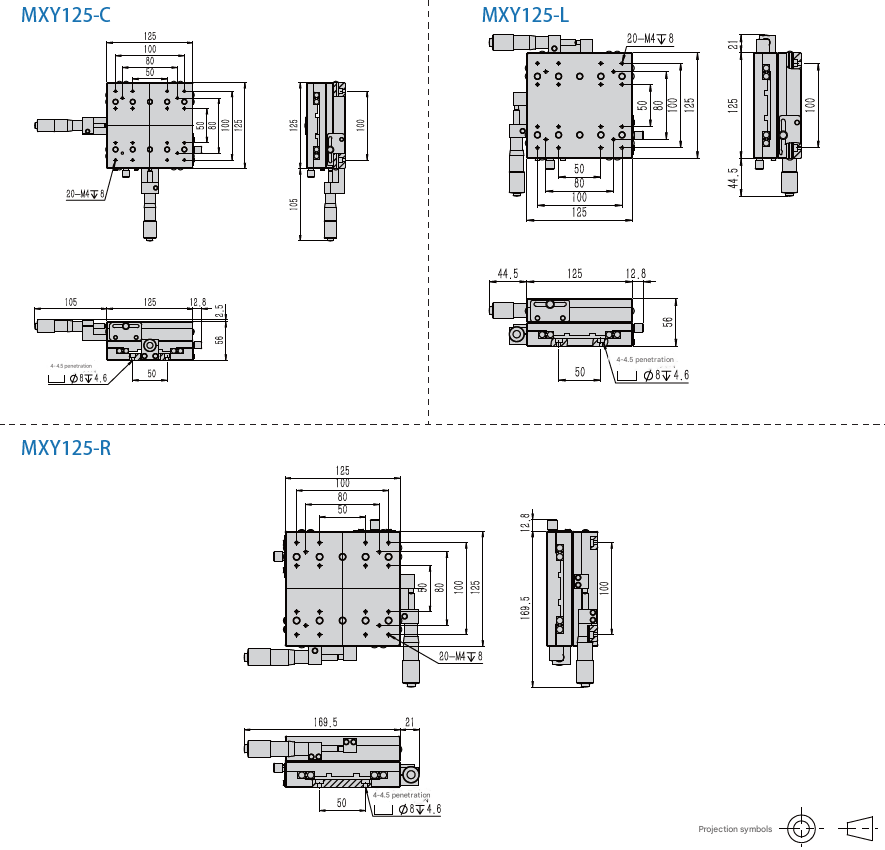

• MXY125-C, MXY125-L, MXY125-R

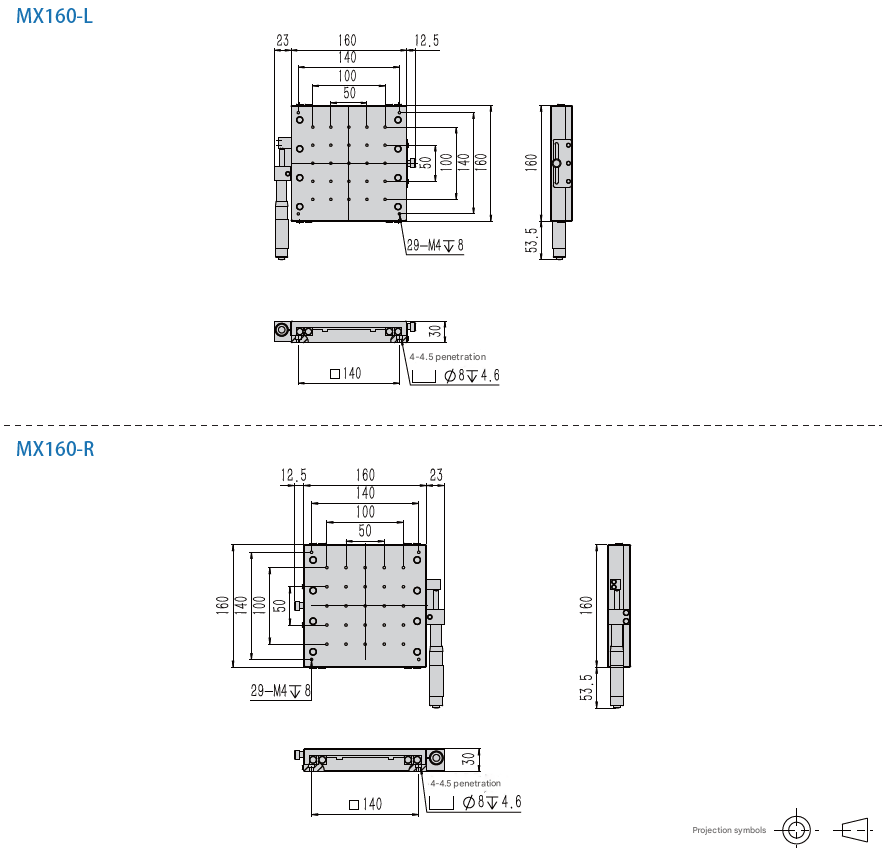

• MX160-L, MX160-R

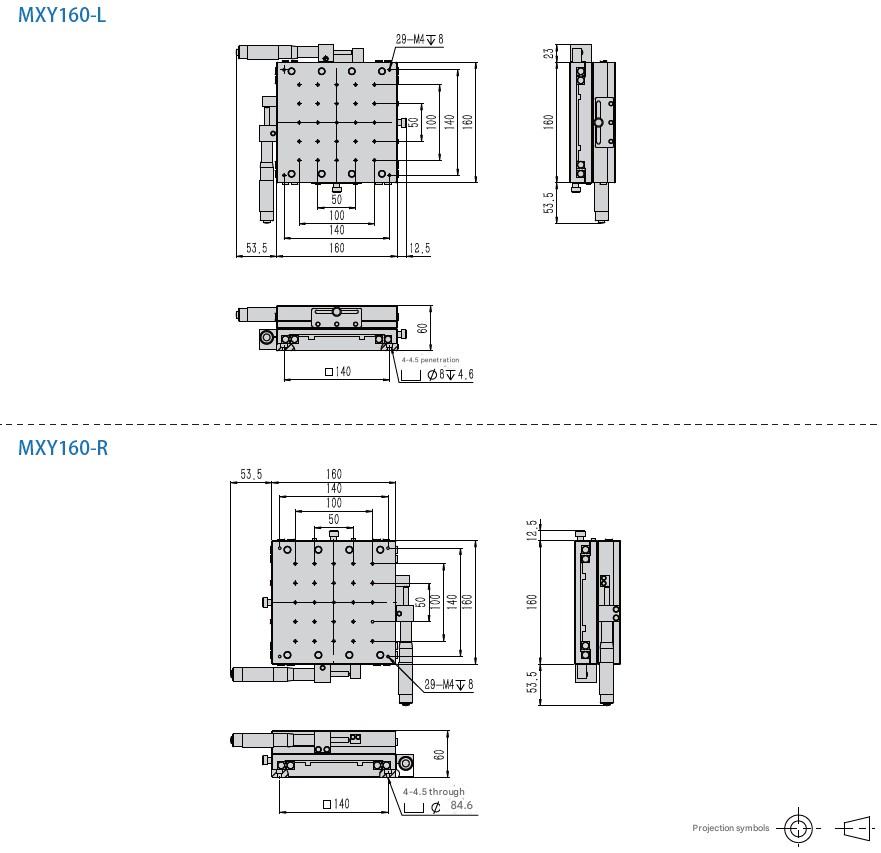

• MXY160-L, MXY160-R



---

Specifications :

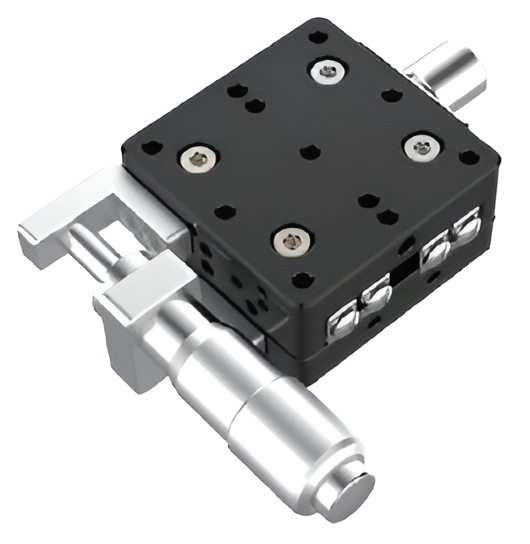

• MX40-C, MX40-L, MX40-R

Model	MX40-C	MX40-L	MX40-R
Moving direction	X-axis
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	40mm × 40mm
Countertop thickness	20mm
Journey	±6.5mm
Load	29. 4N (3kgf)
Minimum read volume per centicard	0.01mm
Moving parallelism	≤0.01mm/13mm
Parallelism	0.02mm
Body weight	0. 14kg





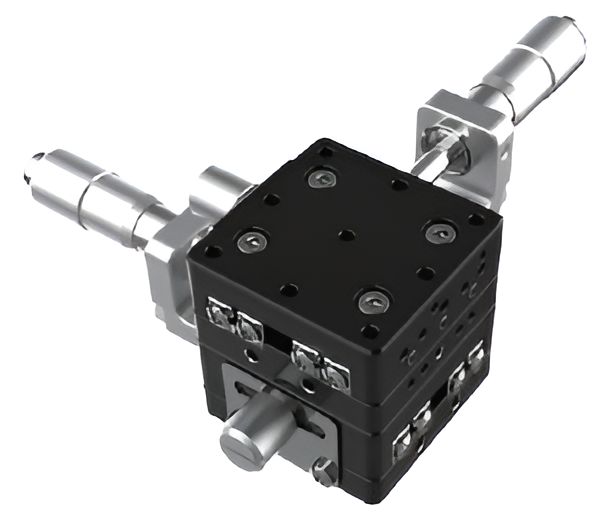

• MXY40-C, MXY40-L, MXY40-R

Model	MXY40-C	MXY40-L	MXY40-R
Moving direction	XY axis
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	40mm × 40mm
Countertop thickness	40mm
Journey	±6.5mm
Load	29. 4N (3kgf)
Minimum read volume per centicard	0.01mm
Moving parallelism	≤0.01mm/13mm
Parallelism	0.04mm
Body weight	0.28kg



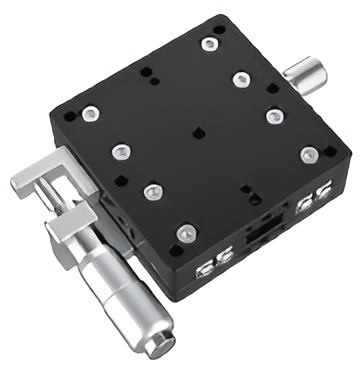

• MX60-C, MX60-L, MX60-R

Model	MX60-C	MX60-L	MX60-R
Moving direction	X-axis
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	60 mm × 60 mm
Countertop thickness	20mm
Journey	±6.5mm (customizable ±12.5mm)
Load	49N (5kgf)
Minimum read volume per centicard	0.01mm
Moving parallelism	≤0.01mm/13mm
Parallelism	0.03mm
Body weight	0.24kg

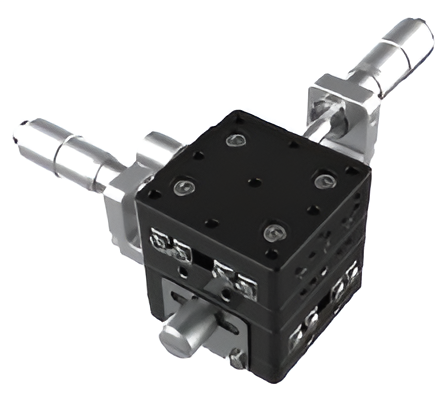

• MXY60-C, MXY60-L, MXY60-R

Model	MXY60-C	MXY60-L	MXY60-R
Moving direction	XY axis
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	60 mm × 60 mm
Countertop thickness	40mm
Journey	±6.5mm (customizable ±12.5mm)
Load	49N (5kgf)
Minimum read volume per centicard	0.01mm
Moving parallelism	≤0.01mm/13mm
Parallelism	0.06mm
Body weight	0.48kg



• MXY60-CB, MXY60-LB, MXY60-RB

Model	MXY60-CB	MXY60-LB	MXY60-RB
Moving direction	XY axis
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	60 mm × 60 mm
Countertop thickness	34 mm
Journey	±6.5 mm
Load	49N (5kgf)
Minimum read volume per centicard	0.01mm
Moving parallelism	≤0.01mm/13mm
Parallelism	0.06mm
Body weight	0.48kg



• MXY60-CE, MXY60-LE, MXY60-RE

Model	MXY60-CE	MXY60-LE	MXY60-RE
Moving direction	XY axis
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	60 mm × 60 mm
Countertop thickness	22 mm
Journey	±6.5 mm
Load	29. 4N (3kgf)
Minimum read volume per centicard	0.01mm
Moving parallelism	≤0.01mm/13mm
Parallelism	0.06mm
Body weight	0.38kg



• MX80-C, MX80-L, MX80-R

Model	MX80-C	MX80-L	MX80-R
Moving direction	X-axis
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	80 mm × 80 mm
Countertop thickness	20mm
Journey	±12.5mm
Load	98N (10kgf)
Minimum read volume per centicard	0.01mm
Moving parallelism	≤0.02mm/25mm
Parallelism	0.03mm
Body weight	0.52kg

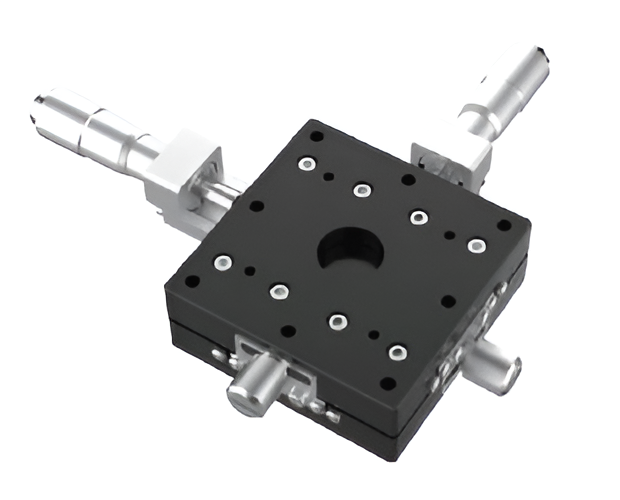

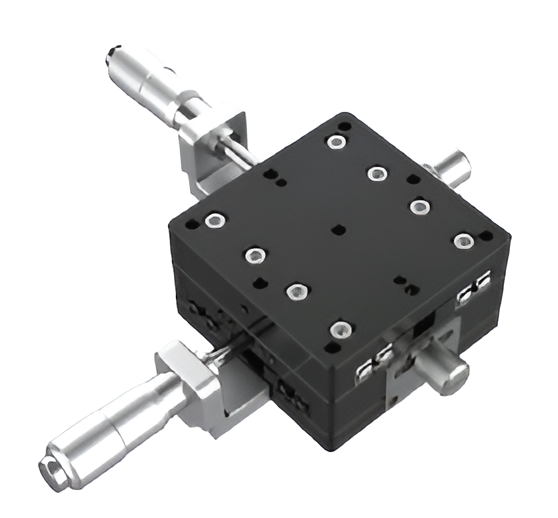

• MXY80-C, MXY80-L, MXY80-R

Model	MXY80-C	MXY80-L	MXY80-R
Moving direction	XY axis
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	80 mm × 80 mm
Countertop thickness	40 mm
Journey	±12.5mm
Load	98N (10kgf)
Minimum read volume per centicard	0.01mm
Moving parallelism	≤0.02mm/25mm
Parallelism	0.06 mm
Body weight	1.05 kg



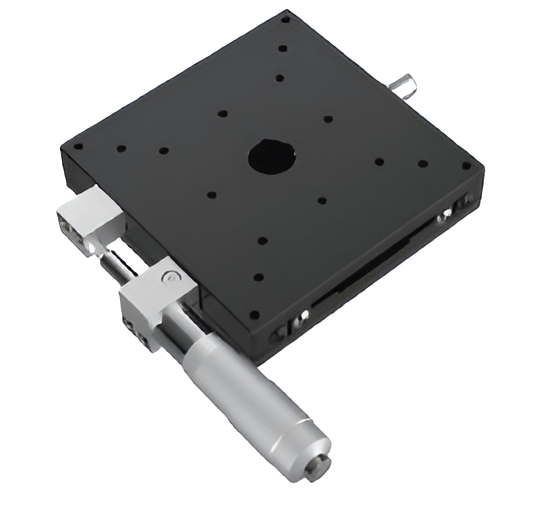

• MX100-C, MX100-L

Model	MX100-C	MX100-L	MX100-R
Moving direction	XY axis
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	100 mm × 100 mm
Countertop thickness	20 mm
Journey	±12.5mm
Load	98N (10kgf)
Minimum read volume per centicard	0.01mm
Moving parallelism	≤0.02mm/25mm
Parallelism	0.03mm
Body weight	0.68kg



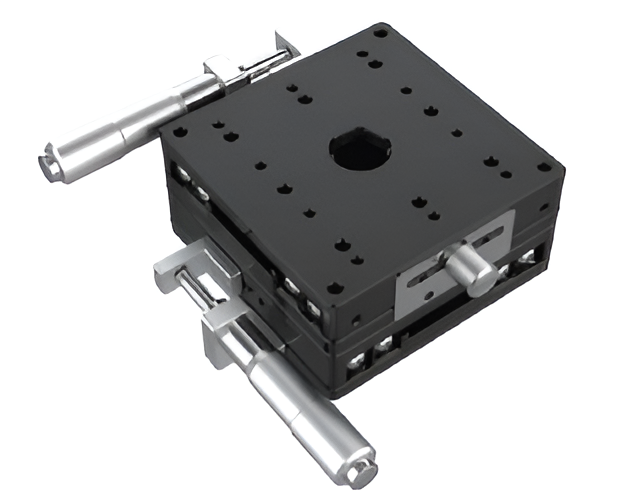

• MXY100-C, MXY100-L

Model	MXY100-C	MXY100-L	MXY100-R
Moving direction	XY axis
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	100 mm × 100 mm
Countertop thickness	40 mm
Journey	±12.5mm
Load	98N (10kgf)
Minimum read volume per centicard	0.01mm
Moving parallelism	≤0.02mm/25mm
Parallelism	0.06 mm
Body weight	1.36 kg



• MX120-C, MX120-L, MX120-R

Model	MX120-C	MX120-L	MX120-R
Moving direction	X-axis
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	120 mm × 120 mm
Countertop thickness	30 mm
Journey	±25 mm
Load	196N (20kgf)
Minimum read volume per centicard	0.01 mm
Moving parallelism	≤0.05mm/50mm
Parallelism	0.05 mm
Body weight	1.52 kg



• MXY120-C, MXY120-L, MXY120-R

Model	MXY120-C	MXY120-L	MXY120-R
Moving direction	XY axis
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	120 mm × 120 mm
Countertop thickness	60 mm
Journey	±25 mm
Load	196N (20kgf)
Minimum read volume per centicard	0.01 mm
Moving parallelism	≤0.05mm/50mm
Parallelism	0.08 mm
Body weight	3.04 kg



• MXY120-CB, MXY120-LB, MXY120-RB

Model	MXY120-CB	MXY120-LB	MXY120-RB
Moving direction	XY axis
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	120 mm × 120 mm
Countertop thickness	50mm
Journey	±25 mm
Load	196N (20kgf)
Minimum read volume per centicard	0.01 mm
Moving parallelism	≤0.05 mm/50 mm
Parallelism	0.01 mm
Body weight	2. 67 kg

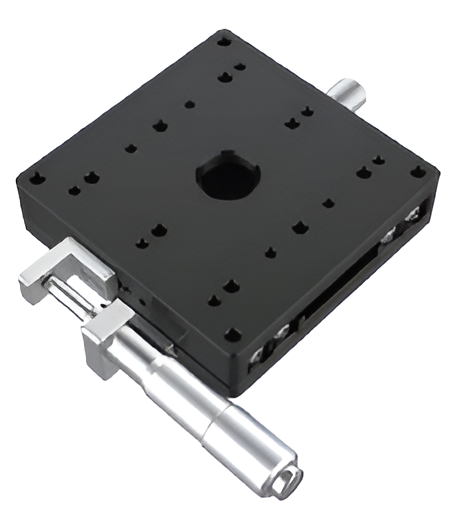

• MX125-C, MX125-L, MX125-R

Model	MX125-C	MX125-L	MX125-R
Moving direction	X-axis
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	125 mm × 125 mm
Countertop thickness	28 mm
Journey	±12.5 mm
Load	98N (10kgf)
Minimum read volume per centicard	0.01 mm
Moving parallelism	≤0.05 mm / 25 mm
Parallelism	0.05 mm
Body weight	1.4 kg

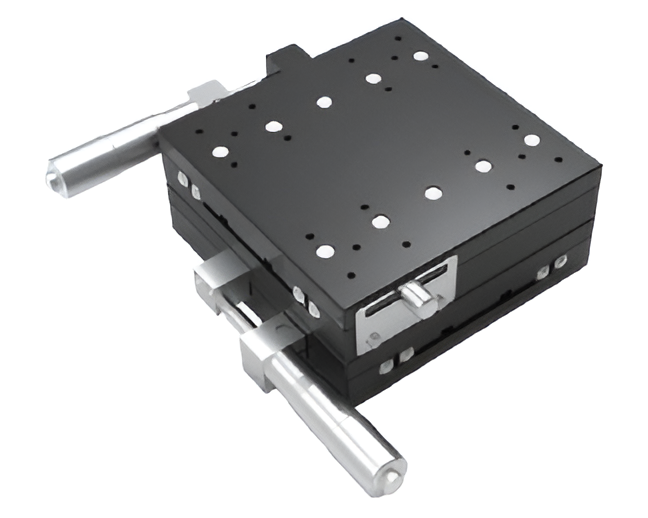

• MXY125-C, MXY125-L, MXY125-R

Model	MXY125-C	MXY125-L	MXY125-R
Moving direction	XY axis
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	125 mm × 125 mm
Countertop thickness	56 mm
Journey	±12.5 mm
Load	98N (10kgf)
Minimum read volume per centicard	0.01 mm
Moving parallelism	≤0.05 mm / 25 mm
Parallelism	0.1 mm
Body weight	2.8kg



• MX160-L, MX160-R

Model	MX160-L	MX160-R
Moving direction	X-axis
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	160 mm × 160 mm
Countertop thickness	30 mm
Journey	±25 mm
Load	392N (30kgf)
Minimum read volume per centicard	0.01 mm
Moving parallelism	≤0.05mm/50mm
Parallelism	0.05 mm
Body weight	2.55 kg

• MXY160-L, MXY160-R

Model	MXY160-L	MXY160-R
Moving direction	XY axis
Main material	Aluminum alloy (black anodized)
Drive mode	Differential head
Countertop size	160 mm × 160 mm
Countertop thickness	60mm
Journey	±25 mm
Load	392N (30kgf)
Minimum read volume per centicard	0.01 mm
Moving parallelism	≤0.05mm/50mm
Parallelism	0.1 mm
Body weight	5. 1 kg

---
