TH9310 Series, TH9320

Hipot Tester
Voltage: AC 0.05-5KV, DC 0.05-6KV
Current: AC 0-20mA, DC 0-10mA
Insulation Resistance: 0.1MΩ-10GΩ

Product description

■ TH9310 series: AC:5kV/10mA; DC:6kV/5mA AC/ DC withstanding voltage/insulation resistance tester

TH9320 series: AC:5kV/20mA; DC6kV/10mA AC/ DC withstanding voltage/insulation resistance tester

■ TH9310/20：AC/ DC withstanding voltage/insulation resistance tester

TH9310B: AC withstanding voltage tester

■ 480×272 dot-matrix, TFT-LCD display

■ Rapidly discharging and arc detection

■ Randomly set voltage rising time and testing time in 999.9 seconds; Freely set waiting time for insulation resistance

■ Hold 5 testing steps; 4 testing modes selectable

■ Brand new operation interface and concise interface operation design

■ Lock keyboard

■ PLC interface

■ TH9310/20 series withstanding voltage/insulation resistance tester is an economical and intelligent safety tester with the characteristics of small size, light weight,pleasing appearance and easy operation. TH9310/20 series can be widely used in the safety tests of household appliances, transformer, electrical equipments and components

Model			TH9310/20	TH9310B
Withstanding Voltage Test
Output Voltage	AC		0.05 —5.00kV ± (2% reading+5digits), (50Hz、60Hz optional)
	DC		0.05 —6.00kV ± (2% reading+5digits)	------
	Voltage Adjustment Rate		≤ (1% - 5V)（rated power）
Current TestRange	AC		TH9310：0.000mA – 10.00mA ± (2% reading+2digits) TH9320：0.000mA – 20.00mA ± (2% reading+2digits)
	DC		TH9310：0uA – 5.00mA ± (2% reading+2digits) TH9320：0uA –10.00mA ± (2% reading+2digits)	------
	Discharge Function		Discharge after test ends（DCW）
Insulation Resistance Test
Output Voltage			0.10kV – 1.00kV ± (2%reading+2V)	------
Resistance Test Range			1MΩ– 9999MΩ	------
Resistance Test Accuracy		500V-1000V	1MΩ– 1000MΩ ± (5%reading+2digits) 1000MΩ–9999MΩ ± (10%reading+2digits)	------
		100V-500V	1MΩ– 1000MΩ ± (10%reading+2digits)	------
Discharge Function			Discharge after test ends	------
Arc Detection
Measurement Range		AC	1 – 9 levels （factory default 5）（20mA,18mA, 16mA, 14mA, 12mA, 10mA, 7.7mA, 5.5mA, 2.8mA respectively）
		DC	1 – 9 levels	------
General Specification
Memory			5 groups
Voltage Rising Time			0.1s – 999.9s
Test Time Setting（AC/DC）			0.2s – 999.9s
Waiting Time（IR）			0.2s – 999.9s	------
Time Accuracy			±(1%+0.1s)
Dimension（W×H×D）			280mm×89mm×428mm/10kg
Interface
Standard			HANDLER, RS232, USBDRV(PC interface), USBHOST(USB port)

Accessories name

High Voltage Test Cable (Red)

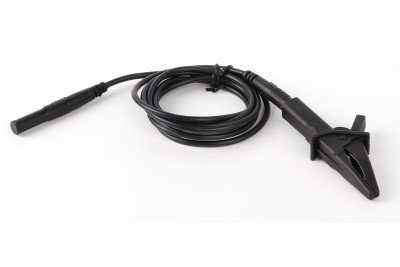

High Voltage Test Cable

Optional
Accessories name	Model
