DNM 4th

High Productivity Global Standard Vertical Machining CenterUsed by numerous customers around the would,the DNM series is a global bestseller that represents the culmination of DN Solutions' fifty years of technology and know-how,and is a market leader with the highest productivity and durability in its class.With DN Solutions' 4th DNM series,you will experience unrivaled reliability.

Best-in-class productivity and reliability

-Best-in-class productivity and processing area
-Improved thermal displacement performance over previous generations for increased reliability
-Improved rapid performance and axis acceleration-deceleration performance
-Maximized productivity with improved chip-to-chip time

Direct-coupled spindle adopted
As a standard feature to improve machining accuracy

-Reduced noise and vibration for improved machining precision
-High-torque,high-speed spindle available as optional feature
-Programmable flood coolant available as optional feature for increased user convenience

ECO-Friendly

-Built-in power consumption monitoring function
-Highly efficient coolant pump reduces energy usage
-Energy consumption reduced with improved oil cooler operational logic for spindle
-Grease lubrication function reduces oil consumption

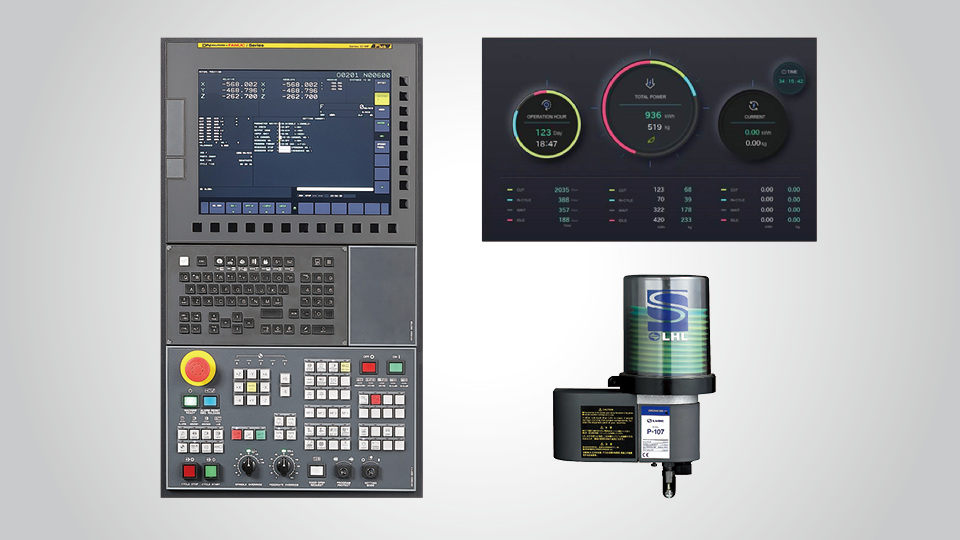

Improving operational convenience

-EZ work upgraded,new control buttons added
-A new tool management function has been added and the design has been changed for easier operation

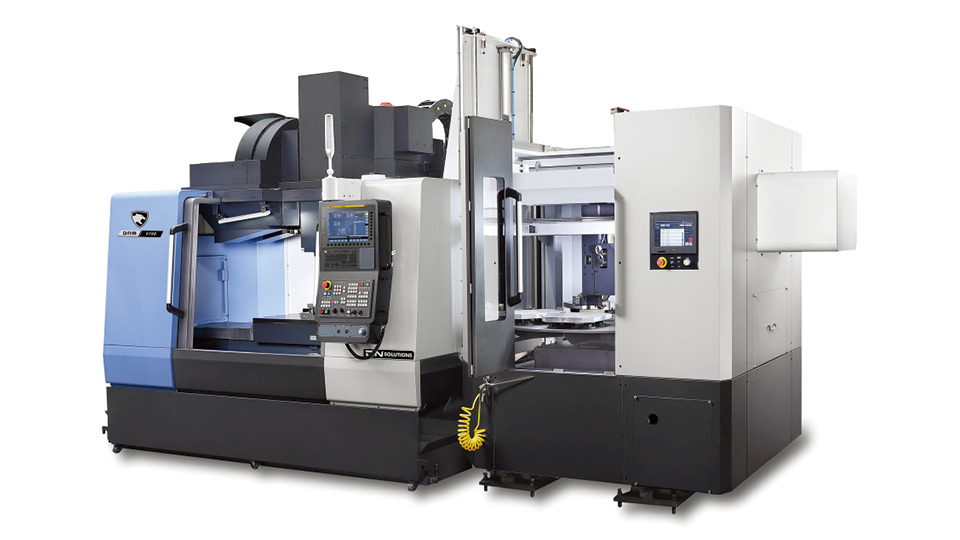

Multi-Level AWC

-Improved unmanned operation time compared to the single level AWC
-Optimal space-saving multi-level stacking system: up to 40 pallets
-Easy to install and maintain locally
-Easy to grasp the current status of the system at glance

SPECIFICATIONS

TRAVELS
X-axis travel distance - 1050 mm
Y-axis travel distance - 570 mm
Z-axis travel distance - 510 mm

FEED RATES
X-axis rapid traverse - 42 m/min
Y-axis rapid traverse - 42 m/min
Z-axis rapid traverse - 36 m/min

TABLE
Size - 1300 x 570 mm
Loading capacity - 1000 kg

SPINDLE
Max.Spindle speed - 8000 r/min
Max.Spindle power - 18.5 kW
Max.Spindle torque - 117.8 N.m

DIMENSIONS
Length - 2470 mm
Height - 2980 mm
Width - 3320 mm
Weight - 6500 kg
