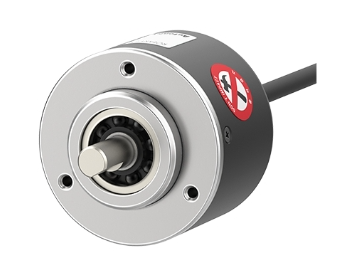

Autonics E50S8-1024-3-T-24 Rotary Encoders Malaysia

E50S8-1024-3-T-24

• Shaft outer diameter : Ø8mm
• Max. response frequency : 300kHz
• Max. allowable revolution : 5000rpm
• Starting torque : Max. 70gf.cm(max. 0.00686N.m)
• Resolution : 1024P/R
• Control output : Totem pole
• Power supply : 12-24VDC  ±5%(ripple P-P: max. 5%)
• Connection type : Axial cable type
• Protection structure : IP50 (IEC standard)



Data sheet

Shaft outer diameter	Ø8mm
Max. response frequency	300kHz
Max. allowable revolution	5000rpm
Starting torque	Max. 70gf.cm(max. 0.00686N.m)
Resolution	1024P/R
Output phase	A, B, Z
Control output	Totem pole
Power supply	12-24VDC  ±5%(ripple P-P: max. 5%)
Connection type	Axial cable type
Protection structure	IP50 (IEC standard)
Environment_Ambient temperature	-10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 90% RH
Accessories	Ø8mm coupling, Bracket
Weight	Approx. 363g(approx. 275g)
