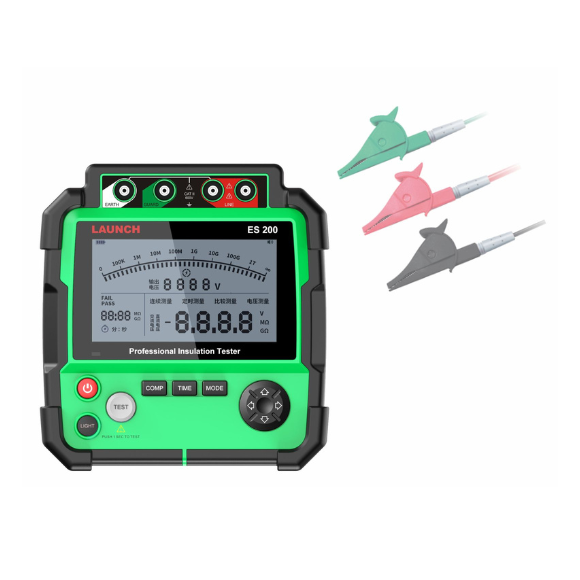

ES200

EV Insulation Resistance Tester

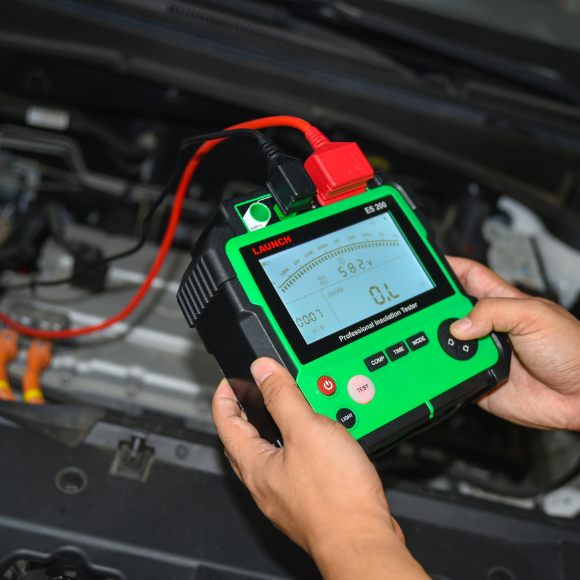

Insulation resistance meters are commonly known as megohm meters, or shake meters, high resistance meters, insulation resistance testers, etc. It is reflected by insulation resistance. The product insulation resistance which is measured refers to the insulation resistance between the live part and the exposed non-live metal part(case). Using an insulation tester for measurement can effectively protect the safety of maintenance personnel.


FEATURES

  1. ES200 is capable of measuring insulation resistance and also innovatively increases the voltage measurement function.
  2. Equipped with standard resistance, in the comparison measurement mode, the measured resistance value is compared with the standard resistance to ensure the measurement accuracy.
  3. Three measurement modes: timing measurement, comparison measurement, continuous measurement and omnidirectional measurement.


SPECIFICATION

  ES200 SPECIFICATION
  Battery   3150mAh
  Display   5''
  Working Temperature   0~50
  Dimensions   180*174*65.5(mm)
  Weight   1.7kg



  AC AND DC VOLTAGE TEST PERFORMANCE PARAMETERS
  Voltage Typ   DC Voltage   AC Voltage
  Measuring Range   ±30~±600V   30~600V(50/60Hz)
  Resolution   1V   1V
  Measurement Accuracy   ±3%   ±3%


  INSULATION RESISTANCE TEST PERFORMANCE PARAMETERS
 Test Voltage  500V  1000V  2000V  5000V
 Measuring
 Range		  0.0MΩ～20GΩ  0.0MΩ～40GΩ  0.0MΩ～100GΩ  0.0MΩ～1000GΩ
 Open Circuit
 Voltage		  DC500V(0～20%)  DC1000V(0～20%)  DC2000V(0～20%)  DC5000V(0～20%)
 Measurement
 Accuracy

 0.0～99.9MΩ: ±(3%+5)

 100MΩ～9.99GΩ: ±(5%+5)

 10.0GΩ～20.0GΩ: ±(10%+5)

  0.0～99.9MΩ: ±(3%+5)

 100MΩ～9.99GΩ: ±(5%+5)

 10.0GΩ～40.0GΩ: ±(10%+5)

  0.0～99.9MΩ: ±(3%+5)

 100MΩ～9.99GΩ: ±(5%+5)

 10.0GΩ～100GΩ: ±(10%+5)

 0.0～99.9MΩ: ±(3%+5)

 100MΩ～9.99GΩ: ±(5%+5)

 10.0GΩ～99.9G: ±Ω(10%+5)
 Short Circuit
 Current		  <3.0mA
