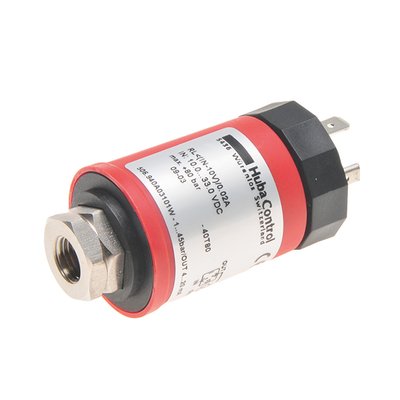

The pressure transmitter type 506 with proven ceramic technology, features adjusted and amplified sensor signals which are available as standardised current outputs. The pressure sensors are specially developed for use in the industrial refrigeration technology.
Medium : Refrigerants
Pressure range : -1 ... 7 – 60 bar
Output : ratiom. 10 ... 90%, 0 ... 5 V, 1 ...6 V,0 ... 10 V, 4 ... 20 mA
Accuracy : < 0.5% fs
Electrical connection : Connector DIN EN 175301-803-A or C, M12x1 Cable 1.5 m
Pressure connection : Inside thread or outside thread
*Compact construction
*Automated manufacture in large quan tities for ideal price / performance ratio
*Rugged ceramic sensor technology
*No mechanical creepage
*High resistance to extreme temperatures
