| Description | AquaPro Multi-Input Intelligent Analyzer |
|---|---|
| Voltage | 100 to 240VAC |
| Height (English) | 4.72 in. |
| Height (Metric) | 120mm |
| Length (English) | 5.67 in. |
| Length (Metric) | 144mm |
| Width (English) | 5.67 in. |
| Width (Metric) | 144mm |
| Weight (English) | 3 lb. |
| Weight (Metric) | 1.36kg |
| Enclosure Rating | NEMA 4X, UV resistant polycarbonate |
| Channels | Four |
| Communication Details | Host communications cards available for Slot 4: MODBUS RTU; MODBUS 232; CANopen; DeviceNet; Profibus DP/V1; Host communications cards available for Slot 4: MODBUS RTU; MODBUS 232; CANopen; DeviceNet; Profibus DP/V1;Ethernet IP |
| Current Loops | Two per measurement input (Max 8) 0/4-20mA (Isolated), .01mA resolution |
| Display Type | 4.3 in. (109.22mm) 24 bit color graphic display with 300:1 Contrast Ratio |
| Hertz | 50/60Hz |
| Keypad Type | Seven key membrane keypad |
| Max. Relative Humidity | 95%, non-condensing |
| Mounting Options | Wall (Standard), Panel (with kit AP0PANKT), and Pipe (with kit AP0PIPKT) |
| Options for Channel 1 | pH, ORP, Conductivity, DO, Ozone, Turbidity, Chlorine, DataStick |
| Options for Channel 2 | pH, ORP, Conductivity, DO, Ozone, Turbidity, Chlorine, DataStick |
| Options for Channel 3 | pH, ORP, Conductivity, DO, Ozone, Turbidity, Chlorine, DataStick |
| Options for Channel 4 | pH, ORP, Conductivity, DO, Ozone, Turbidity, Chlorine, DataStick, Host Communications, Additional Relays (3) |
| Regulatory Details | CE: EN1600 -4-2, -4-3, -4-4, -4-5, -4-6, -4-11 |
| Relay Details | Three form C relays, 5A at 250V;endash;Assignable (Standard); Three form C relays, 5A at 250V7endash;Assignable (Optional -Slot 4) |
| USB Interface | Type A front panel port |
| Amperage | 0.4A |
| Item Description | AquaPro Multi-Input Intelligent Analyzer |

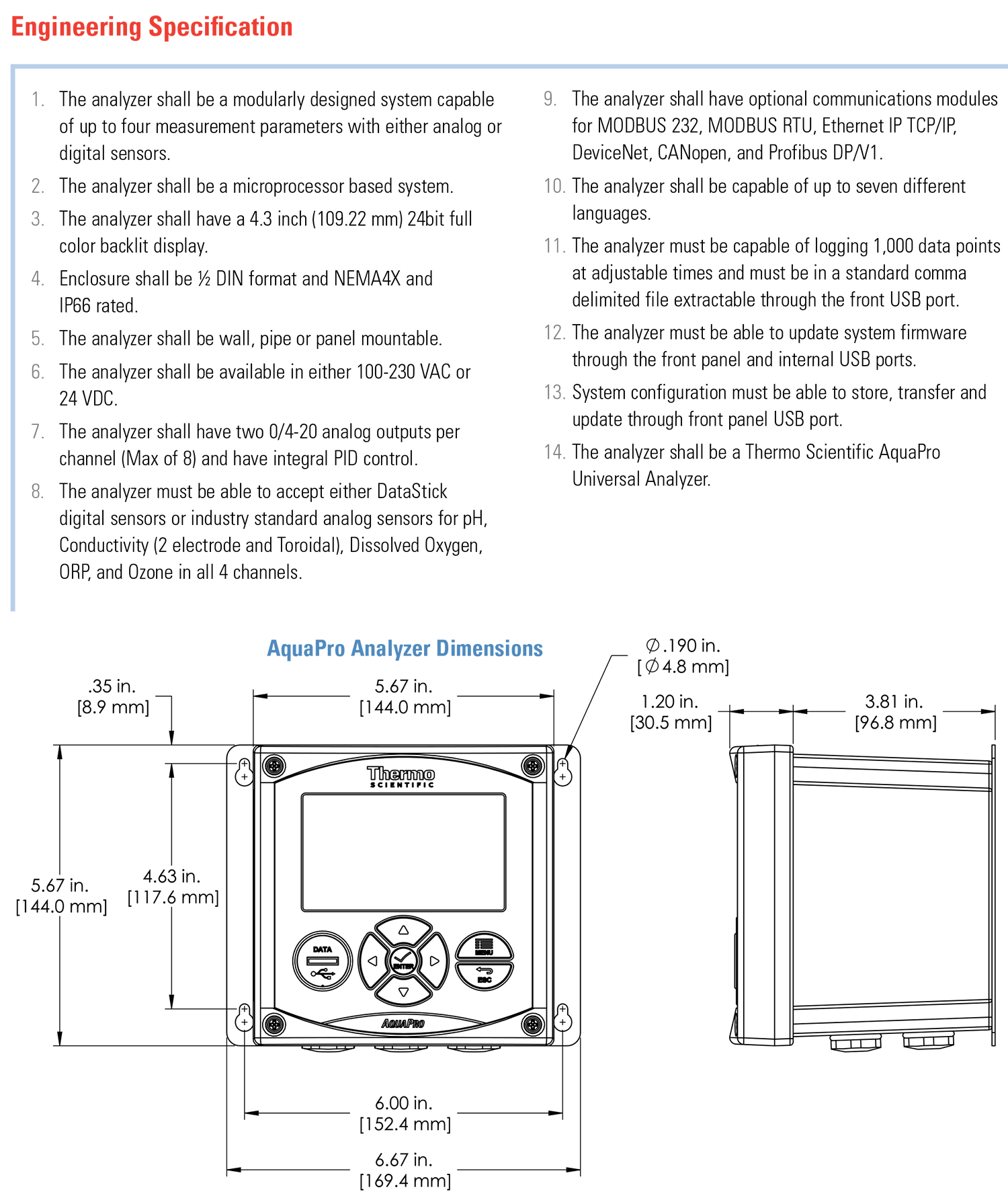

| Dimensions (L x W x H) | 5.67 x 5.67 x 4.72 in. (144 x 144 x 120mm) |
| Electrical Requirements | 100 to 240VAC 50/60Hz |
| Unit Size | - |
