Product Description
FOIL SCRIM KRAFT (FSK)
SINGLE SIDED RETARDANT ALUMINIUM PAPER FOIL, 8x8 FIBERGLASS SCRIM REINFORCED
PRODUCT FEATURE
-
99% Pure Aluminium Foil with high reflectivity (>0.98) & low emissivity (>0.02) surface.
-
Reinforced with bidirectional fiberglass scrim to increase the mechanical product strength and durability.
-
Coupling with minimum of 10mm air space can cut down heat transfer by conduction & convection to negligible figure.
-
Suggestion Size :
|
Width(m) |
Length (m) |
|
1.22 – 1.25 ± 2% |
60 ± 1% |
|
Optimum packing pallet =120 rolls |
Customize size available upon request and machine capacity
TECHNICAL SPECIFICATION
|
GRAMMAGE |
115 – 125gsm |
|
THICKNESS |
180 – 280 microns |
TENSILE STRENGTH
(ASTM D 828) |
MD: 5 - 7 kN/m
CD: 5 - 7 kN/m |
|
TEAR RESISTANCE |
GOOD |
|
VAPOUR BARRIER |
Excellent |
CORROSION
(95% RH@50°C,30 DAYS) |
None |
|
STUCTURE |

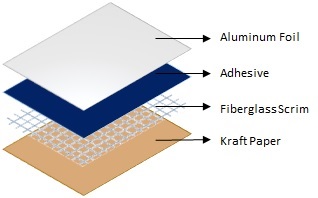

Foil | 1 WAY | KRAFT |
|
REINFORCEMENT |
FIBERGLASS SCRIM
(8x8 threads/100mm) |
Technical information provided in this data sheet are typical laboratory averages and are subject to variation.
While the information is believed to reliable and correct, no guarantee or warranty (expressed or implied) can be made regarding specific applications or patent right.
Product specifications are subject to change without prior notice
 |
RECOMMENDED APPLICATION
-
Foil facing for bulk installation
-
Foil backing for mineral wool
-
Backing Material PU Foam
-
Building wrapping
-
Wall insulation
-
Concrete / Clay title roofing
-
Metal roofing
|
