Features
| Specifications | ||
| Line Pull | : | 4,082kgs/9,000lbs |
| Motor | : | 12V/24V series wound |
| Brake | : | 100% full load double cone braking |
| Gear Ratio | : | 243:1 |
| Wire Rope Size | : | Φ8mmx30M(Φ5/16'x100') |
| Line Pull | |||
| Layer of Wire Rope | Max Line Pull | ||
| 1 | 9,000lbs/4083kgs | ||
| 2 | 7370lbs/3342kgs | ||
| 3 | 6230lbs/2852kgs | ||
| 4 | 5390lbs/2447kgs | ||
| Line Speed and AMP Draw (1st Layer of Rope On The Drum) | |||
| Load | Line Speed | AMP Draw(12V) | AMP Draw(24V) |
| No Load | 34.4FPM/10.5MPM | 65 | 40 |
| 2,000lbs/907kgs | 23.6FPM/7.2MPM | 135 | 85 |
| 9,000lbs/4,083kgs | 5.9FPM/1.8MPM | 405 | 215 |
| Standard Accessories | ||
| Controller | : | - |
| Wire Rope With Hook | : | - |
| 4 Way Roller Fairlead | : | - |
| Control Unit | : | - |
| Mounting Hardware | : | - |
| Handsaver Strap | : | - |
| Package | ||
| Winch weight | : | 43kgs |
| Gross Weight | : | 45kgs |
| Box Dimensiom | : | 647×198×410 mm(25.5'×7.8'×16.1') |

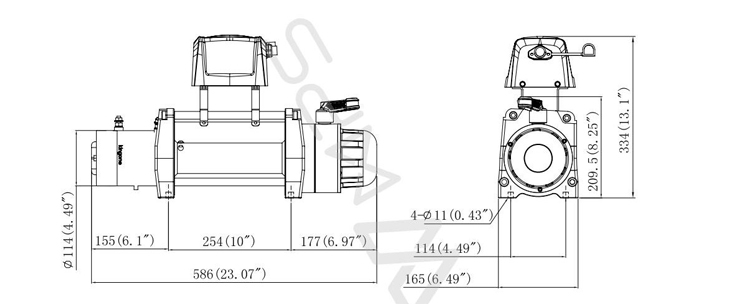

| Dimensions (mm) |
