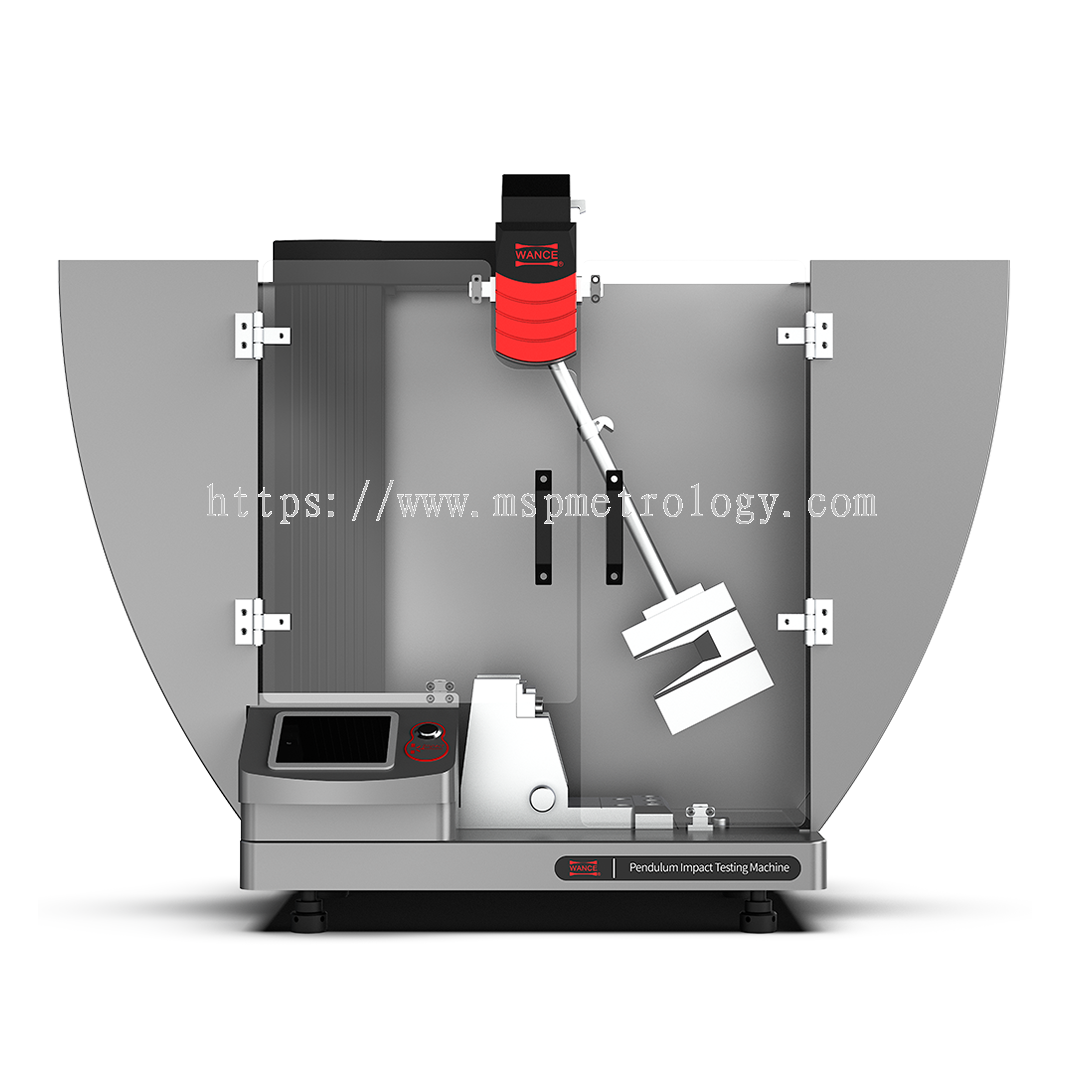

Overview
It is mainly applied to determine the simply supported beam impact performance, cantilever beam impact performance or tensile impact performance of plastics under specified impact conditions.
Applications
It is mainly for testing the impact resistance of non-metallic materials such as plastics, nylon, rubber, glass fiber reinforced plastics, composite plastic pipes and electrical insulation materials under dynamic load.
Standards
ISO 179 Plastics-Determination of Charpy impact properties
ISO 180 Plastics-Determination of Izod impact strength
ISO 8256 Plastics-Determination of tensile-impact strength
ISO 9854.1 Thermoplastics pipes for the transport of fluids — Determination of Charpy impact properties
ASTM D256 Standard Test Methods for Determining the Izod Pendulum Impact Resistance of Plastics
ASTM D1822 Standard Test Method for Tensile-Impact Energy to Break Plastics and Electrical Insulating Materials
ASTM D6110 Standard Test Method for Determining the Charpy Impact Resistance of Notched Specimens of Plastics
Features
-
Using a shaftless encoder allows angle resolution of 0.045 °
01
-
Shaftless encoder for angle measurement rotates without any friction; only support bearings friction and windage has the lowest energy losses
02
-
Simply change the pendulum to satisfy Charpy, Izod and tensile impact test
03
Technical Parameter
Technical parameters
