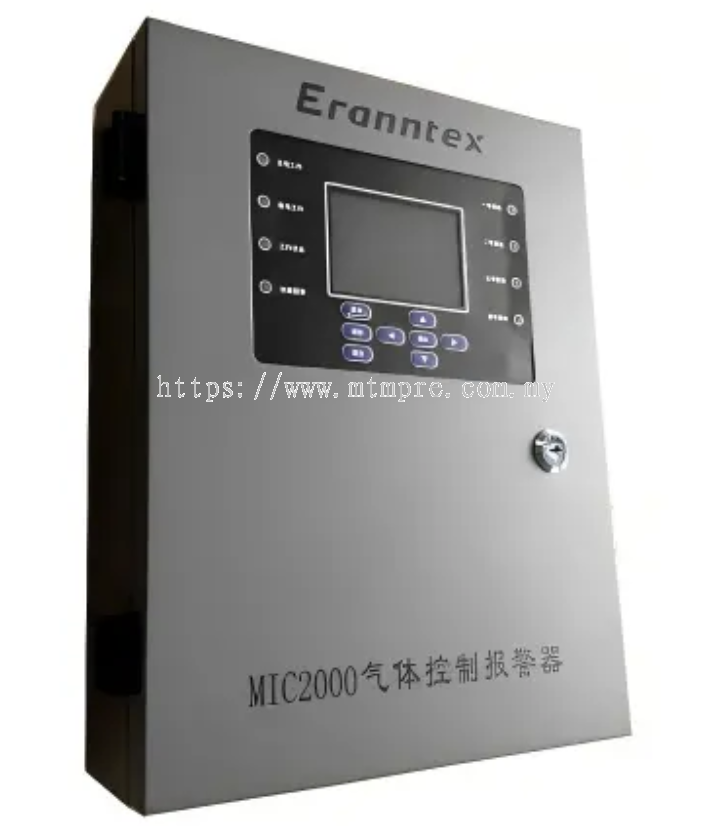

After 19 years of hard work, Eranntex has used technology as a weapon to open up an innovative path in the field of gas detection and become a leader in the domestic gas analyzer industry. Its Gas Control Alarm is a "smart guard" that protects industrial safety.
This controller can flexibly adapt to the dual power supply of the mains grid and the battery, without fear of sudden power outages, and continue to escort safety. It is equipped with an advanced signal receiving system to accurately capture RS485 signals and 4-20mA current signals. It is currently seamlessly compatible with the RS485 signals of our company's new online detectors. If you need to access standard signals from other manufacturers, the professional team is on standby to provide customized solutions.
The powerful access capability is an industry benchmark. One controller can link 120 bus-system RS485 output gas detectors and 8 4-20mA output gas detectors to meet large-scale, multi-scenario monitoring needs. The high temperature environment of the refinery, the complex working conditions of the chemical plant, the flammable and explosive areas of the gas station... In more than ten high-risk industries such as petrochemicals and gas transmission and distribution, it can operate stably, warn of gas leakage hazards in real time, and build a solid safety line for enterprises. More input channels also support personalized customization. Eranntex uses professionalism and innovation to deliver a perfect answer for industrial safety.
●3.5-inch high-definition color screen display, Chinese and English operation interfaces can be switched (default Chinese interface).
●Can connect various gas detectors, temperature and humidity transmitters, pressure transmitters, wind speed transmitters, dust detectors and other 4-20mA signals.
●Optional units: PPM, LEL%, Vol%, mg/m3, ug/L, PPHM, ℃, RH%, Pa, kg, PSI, m/s
●4-20mA and RS485 can be input at the same time; data output supports standard MODBUS protocol Optional: 8-channel 4-20mA output, Ethernet module, host computer monitoring software, RS485/RS232 converter, USB-RS232 cable (computers without serial ports need to choose this item)
●Modular structure design, standard channel is 1 channel (up to 32 channels) 4-20mA input signal, and can connect 255 channels of RS485 input signals at the same time. More channel input signals can be customized, and controllers can communicate with each other.
●The gas alarm controller has a data recording function, standard large-capacity data storage, and larger capacity can be customized. The storage time interval can be set arbitrarily, recording time, concentration value, alarm information, etc. It can be set to record real-time concentration or only record alarm information. The default setting is to record only alarm information. Support local viewing of all records, selective viewing of records, and deletion of records.
●Three display modes can be switched: 6-channel concentration per screen, large font cycle display of single-channel concentration, real-time curve, automatic cycle or manual cycle between channels can be switched, whether to display the maximum value, minimum value, gas name can be set, and historical record curve chart can be viewed.
●The gas alarm controller has a computer monitoring function. It can be connected to a computer to continuously monitor the real-time concentration 24 hours a day through the host computer software, automatically store data on the computer, computer alarm (requires voice speaker), or read the records stored in a probe or all probes through the host computer software and perform data analysis. It can display the maximum value, minimum value, average value, historical curve, real-time curve and other functions, and can export or print data
●The gas alarm controller has a remote transmission function. The controller can transmit the real-time concentration of the on-site probe through a wired (within 2000 meters).
Optional Ethernet transmission or wireless transmission function (2 km, 5 km, unlimited distance optional), upload data to the monitoring center, environmental protection bureau, other monitoring equipment through 2-core data cable (wired transmission), LAN, Internet or wireless transmission network, and then display, store and analyze data through the host computer software, or use communication protocol to customize data reading.
Main menu interface
2/4/8 channels
16/24 channels
32 channels
Sound and light warning lights
DC24V backup battery
1. Gas detector/detection alarm and controller connection diagram (4-20MA signal)
2. Schematic diagram of connection between gas detector/detection alarm and controller (RS485 signal)
3. Gas detector/detection alarm signal concentration to the controller and computer connection diagram (4-20MA signal)
4. Gas detector/detection alarm signal concentration to the controller and computer connection diagram (RS485 signal)
5. Gas detector/detection alarm network transmission diagram (4-20MA/RS485 signal)
6. Schematic diagram of wireless transmission scheme for gas detector/detection alarm (4-20MA signal)
7. Schematic diagram of wireless transmission scheme for gas detector/detection alarm (RS485 signal)
