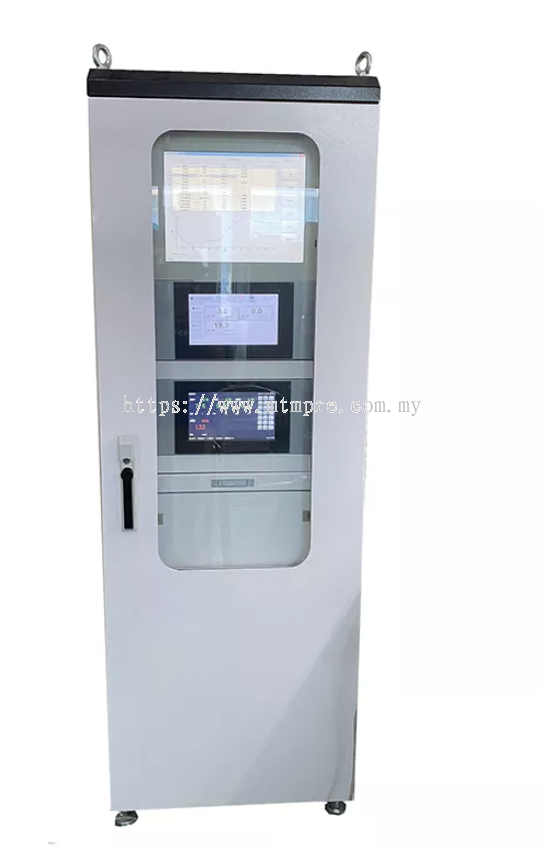

Online Differential UV Spectrometer is mainly used in the gas analysis industry, and the main detection occasions are: refineries, chemical plants, liquefied petroleum gas stations, boiler rooms, gas stations, paint rooms, metallurgy, mining, fire protection, environmental protection, etc. The main principle is: the sampling unit collects the flue gas or the gas to be measured on site, the pretreatment unit filters the dust, high temperature cooling, electric heating insulation, two-stage high-efficiency dehumidification, and controls the temperature and humidity of the gas to be measured, and the dust particles are controlled within a certain range to achieve the cleanliness required by the analyzer, and then sent to the gas analysis unit for detection and analysis, and the concentration of the gas to be measured is displayed in real time on the display screen, and the data signal is transmitted to the PLC or computer terminals, or it can be transmitted to the cloud server through wireless GPRS or network. The user then reads the data from the server, and global network monitoring and analysis can be realized. The whole process is automated and does not require human intervention.
Online differential ultraviolet spectrometer is used in various high temperature, high humidity or high dust occasions, and an automatic backflush system can be optionally equipped, otherwise the dust filter needs to be manually maintained and cleaned. The entire sampling pipeline has an electric heating and insulation function, which is beneficial to remove water vapor and prevent part of the gas from dissolving in condensed water to improve the accuracy of detection and analysis. The built-in two-stage high-efficiency condensation and dehumidification system can stably control the dew point of the gas at 4°C or 5°C, meeting the humidity control requirements of analytical instruments based on various principles.
《Flue Gas Analyzer》JJG 968-2002
《Stationary Source Exhaust Gas Monitoring Technical Specifications》HJ/T 397-2007
《Ultraviolet Absorption Method Multi-Gas Measurement System Technical Requirements and Detection Methods》DB37/T 2641-2015
《Ultraviolet Absorption Method for Determination of Nitrogen Oxides in Exhaust Gas from Stationary Pollution Sources》DB37/T 2704-2015
《Ultraviolet Absorption Method for Determination of Sulfur Dioxide in Exhaust Gas from Stationary Pollution Sources》DB37/T 2705-2015
Explosion-proof and waterproof design, protection level IP66, outdoor type, fast, reliable and stable detection.
Built-in high-efficiency two-stage condensation dehumidification and dust removal pretreatment system, automatic control integrated design, effectively reduce SO2 loss, prevent water vapor interference, more suitable for working conditions with high humidity and low flue gas component concentration
Using differential absorption spectroscopy (DOAS) technology, small temperature drift, high measurement accuracy, can measure ultra-low concentration
Automatically identify the type and concentration of the measured gas, common gases that can be measured are NO, NO2, SO2, NH3, SO2, O3, benzene, toluene, xylene, etc.
Long-life pulse xenon lamp cold light source, short warm-up time, long service life
Built-in long optical path gas cell, NOx, SO2 analysis dual range design, automatic switching range control according to concentration value
Real-time display of each flue gas component concentration curve, curve display ratio can be adjusted
The measurement method can be selected in automatic and manual mode, and the single measurement time and number of measurements can be set in automatic mode
Low detection limit, not affected by moisture and dust, strong anti-interference ability, can avoid cross interference between gases
Built-in heating device, automatically starts the heating function at low temperature, so that the analyzer can be used in cold areas
Automatic zeroing and calibration Function
Large-scale, multi-angle flip TFT color screen display with wide temperature range
Linux operating system, supports Chinese and English input, convenient for users to input sampling location and other information, and realize good human-computer interaction
Industrial high-speed embedded industrial computer, precise control and fast speed
Design and development of microcomputer database and communication system software under Windows environment, realizing microcomputer communication for storage and printing
Equipped with rich human-computer interface, supporting mouse, U disk, keyboard, touchpad, printer and other equipment
Precision design of dustproof and waterproof industrial keyboard, suitable for harsh working conditions, easy to operate
Fault self-check function, generates fault report after detection, convenient for user maintenance
Integrated integrated micro thermal printer or external Bluetooth wireless printer
Flue gas conversion method is based on the baseline oxygen content and conversion coefficient
Large-capacity data storage, 16G, folders can be created by day to store daily test data
Optional automatic backflush system
Standard sampling distance is 30~40 meters, and the maximum sampling distance of the optional vacuum pump is more than 70 meters
Flue gas temperature within 2000℃ can be detected and analyzed
Dimensions: 1800mm high * 800mm wide * 450mm thick
The sample gas is processed according to the pressure, temperature, humidity, flow rate, (dust content), and cleanliness that the analyzer can accept.
Sample sampling: Use a vacuum sampling pump or a DC brushless pump to extract the sample gas from the flue and other environments
Dust filtration: The measured gas passes through a precision dust filter and then enters the sampling pipeline. If it is a high-dust environment, an automatic backflush system is required
Cooling treatment: Cooling through the sampling probe and sampling pipeline can process gases within 2000℃
Heating function: Heating and heat preservation to prevent water vapor condensation and some gases from dissolving in water
Dehumidification function: Two-stage high-efficiency condensation dehumidification system, The dew point of the gas is stably controlled at 4℃ or 5℃
Tar treatment: After the sample gas passes through the tar filter, tar and residual dust are removed
Gas-water separation: After the sample gas is cooled through the sampling pipeline, free water appears. The gas-water separator separates the gas, water and residual dust and automatically drains the water
Secondary filtration: According to the humidity on site, secondary water vapor separation is performed
Detection and analysis: Real-time detection and display of concentration, and data transmission in the form of 4-20mA/RS485 signals, or wireless transmission or network transmission to remote servers or environmental protection bureaus, monitoring stations
Flow regulation: Control the gas intake
Gas switching: Switch between the measured gas, standard gas or air
Online differential ultraviolet spectrometer 1 set
Product manual 1 copy
Infrared remote control 1 piece
Upper computer connection software (sent free of charge via email) 1 copy
RS485 modbus (RTU) communication protocol (sent via email) 1 copy
