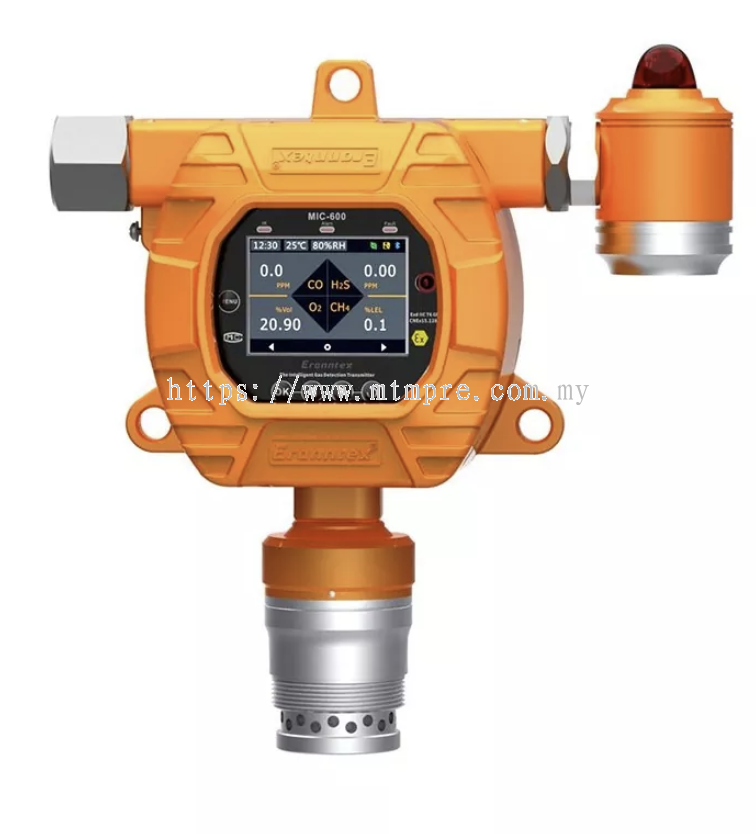

The Eranntex GTYQ-MIC-600 Online composite gas detection alarm offers reliable protection! It comes standard with explosion-proof, lightning-proof, anti-static, and reverse wiring protection. It can also withstand electromagnetic interference (EMI/EMC) and current surges (pulse surges) common in factories. It meets all required national standards (GB15322.1-2019, among others), and secures key CPA and explosion-proof certifications. It offers multiple signal output options, including three- or four-wire 4-20mA, RS485 bus (Modbus RTU), and upgraded switch control ports (up to three). Voltage output is also available. If you prefer to avoid wiring, choose from wireless options like 433M, LoRa, WiFi, 4G/5G, and NB-IoT. An infrared remote control is included for convenient operation. Connect your computer and install the software to view, store, analyze, and print probe data in real time. Units can be freely switched, the zero point is automatically tracked to prevent drift, and calibration is meticulous, including multi-target calibration. Have special requirements? We offer OEM/ODM customization to meet your specific needs.
|
Detected Gas |
Toxic gases, oxygen, carbon dioxide, flammable and explosive gases, TVOC, etc. |
||||
|
Detection Range |
0-1, 10, 100, 1000, 5000, 50000 ppm (mg/m³); 0-100% LEL; 0-200 mg/L; 0-20%, 50%, 100% VOL; other ranges available |
||||
|
Resolution |
0.001ppm、0.01ppm、0.1ppm、1ppm；0.1%LEL；0.1mg/L；0.01%VOL，0.001%VOL； Other resolutions can be customized |
||||
|
Detection Principle |
Electrochemistry, catalytic combustion, infrared, thermal conductivity, PID photoionization, ultraviolet absorption, laser TDLAS, etc., depending on gas type, range, site environment and user needs |
||||
|
Data Storage |
Standard large-capacity data storage of 100,000 records (other capacities can be customized) |
||||
|
Typical Accuracy |
≤±2%F.S (Higher precision can be customized) |
||||
|
Linearity |
≤±1% |
Repeatability |
≤±1% |
Uncertainty |
≤±1% |
|
Response Time |
T90≤30s |
Recovery time |
≤30s |
||
|
Signal Output |
RS485 bus (RTU), three-wire (four-wire), 4-20mA, optional: 0-20mA, 1-5V, 0-5V, 0-10V |
||||
|
Operating Environment |
Ambient temperature -20°C to +55°C (typical), -40°C to +70°C (maximum) |
||||
|
Operating Voltage |
(Preconditioning system optional for higher temperatures and humidity requirements) |
||||
|
Power Reference |
12-36VDC; the standard power supply for a single device is a 24V, 1A or greater DC regulated switching power supply. |
||||
|
Operating Mode |
A 24V, 2.1A switching power supply can power 40 toxic gas detectors or 15 flammable and infrared gas detectors. |
||||
|
Mounting Method |
Fixed installation, online detection, diffusion measurement; duct, flow-through, and pump-type measurement options available. |
||||
|
Alarm Mode |
Duct and wall-mount versions available. The operating pressure for pipelines is±30% of atmospheric pressure. Pressure reduction is required if the pressure exceeds this range. The default is one passive contact output (dry contact), with two optional outputs. Three alarm levels are available, with configurable alarm points. An on-site audible and visual alarm is also available (optional). For 4-20mA, use a three-core shielded cable. For RS485, use a four-core shielded cable. For distances exceeding 1000 meters, the wire diameter must be≥1.5mm. The shield must be grounded. |
||||
|
Connecting Cable |
RS485 bus (RTU), three-wire (four-wire), 4-20mA, optional: 0-20mA, 1-5V, 0-5V, 0-10V |
||||
|
Protection Rating |
IP66 |
||||
|
Explosion-Proof Rating |
Flameproof ExdbⅡC T6 Gb/ExtbIIICT80°C Db |
||||
|
Dimensions |
240×180×90mm (H×L×W) conventional gas chamber |
||||
|
Weight |
240×230×90mm (H×L×W) conventional with light. Custom orders subject to actual dimensions. |
||||
|
Standard Accessories |
2.2/2.4kg. Custom orders subject to actual weight. |
||||
|
Optional Accessories |
Instruction manual, certificate of conformity, warranty card, infrared remote control, outer packaging box. |
||||
|
Optional Pretreatment System |
Integrated alarm light, power adapter, split alarm light, dryer cartridge, flow-through connector, threaded weld base, AC pump, DC brushless pump, built-in pump, rain cover, moisture filter, U-shaped clip, 304/316L stainless steel gas chamber, split type. |
||||
|
Applications |
TH-1000 (simple outdoor model), TH-2000 (for high temperature and high humidity environments). |
||||
