ERANNTEX Gas Alarm Controller: Top Choice in Selangor, Malaysia, Kuala Lumpur (KL), Puchong MTM Precision Sdn Bhd

Description

Model:MIC3000, C8H8, THF, TVOC, VOC, C6H6, C7H8, C8H10, PID, OU, diesel, JET, C4H10, C5H12, C5H10, C6H14, C3H6, C4H8O, COS, R134a, R125, R404a, R407a, R410a, R410, R507, R1234yf, R32, R22, R1234ZE, R14, R12, C3HF7, R116, CFC

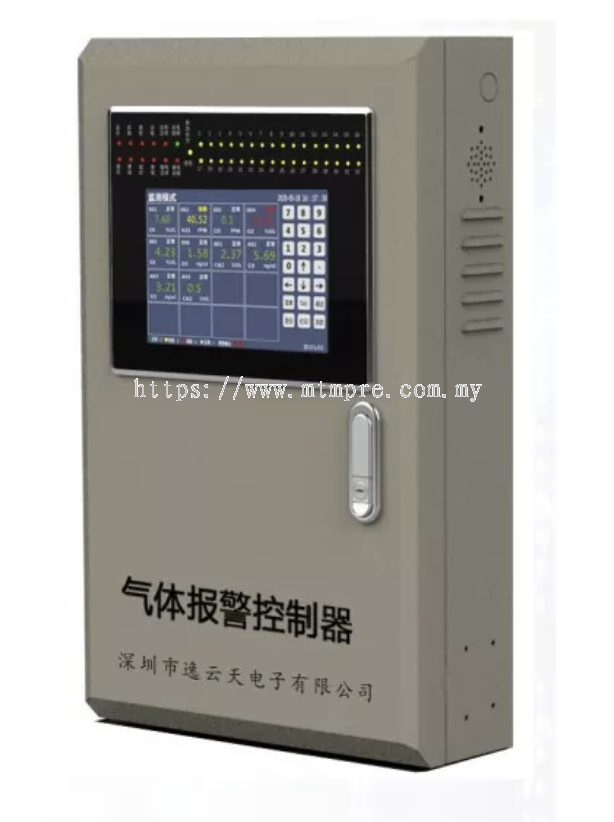

The Eranntex MIC3000 gas alarm controller is equipped with a high-speed ARM chip, ensuring fast and energy-efficient operation. The system runs Linux and μC/OS-II, a powerful, modular design, and the software is exceptionally streamlined, responsive, and reliable. The most striking feature is the 9-inch touchscreen, boasting a superbly clear display that far surpasses even smartphones. The interface, designed specifically for industrial environments, features mixed graphics and large text, making it a pleasant viewing experience. Operation is also incredibly simple, with function keys, numeric keys, and a touchscreen interface for seamless control. Access rights are strictly controlled, with different users assigned unique "keys" (multiple user levels and menu passwords). Data is automatically analyzed and sorted, alarms are prioritized, and cumulative values are automatically calculated. It can store massive amounts of data, allowing you to store as much as you want (unlimited capacity), easily access and export data, and print directly to both the built-in and external printers!

The Eranntex MIC3000 gas alarm controller is a powerful device. Its probe calibration, span calibration, and parameter configuration are simple, and it also offers practical features like channel blocking and alarm delay. Its relay output configuration is highly flexible, allowing for easy one-to-many, one-to-many, and many-to-one configurations—a true wiring wizard. Its interface compatibility is exceptional, supporting RS485, RS232, and RJ45. Networking options are flexible, allowing for a mix of RS485 and 4-20mA signals. Its robust protection is fully protected against surges, interference, and static electricity. It features dual power protection, with automatic switching between 220V AC and 24V battery backup. It can also connect to other devices, such as pressure gauges, liquid level gauges, temperature and humidity sensors, and wind speed and direction sensors. Designed in accordance with the national standard for flammable alarm controllers (GB 16808-2018), we fully support customization (OEM/ODM) to your satisfaction.

The Eranntex MIC3000 Gas alarm controller Technical Parameters

Signal Input	Supports up to 255 bus channel inputs, 32 relay outputs, 32 4-20mA input and outputs, wireless (4G/5G 433M LoRa Zigbee, etc.), and system cascading supports more than 1000 input channels
Output Signal	RS485, wireless (4G/5G 433M LoRa Zigbee), TCP/IP, etc.; optional serial panel micro printer
Display Range	0～99999
Resolution	1、0.1、0.01、0.001
Display Accuracy	±0.1%FS
Alarm Mode	Sound and light alarm, each circuit can set high and low limit alarm valuesseparately, each circuit can be bound to three-way relay linkage output
Output Control	Standard outputs include eight relay contacts (normally open/normally closed), with contact ratings of 3A/250VAC and 3A/30VDC. One common alarm output has contact ratings of 10A/277VAC and 12A/125VAC.
Auto-Detection	Line break/short circuit detection, various detector states, function detection, etc.
Operating Temperature	-20℃～+55℃，10~85%RH
Power Supply	AC 180~240V 50H/60H
Maximum Power Consumption	Less than 10W (no-load)
Backup Power Supply	Optional configuration available
Mounting Method	Wall-mountable
