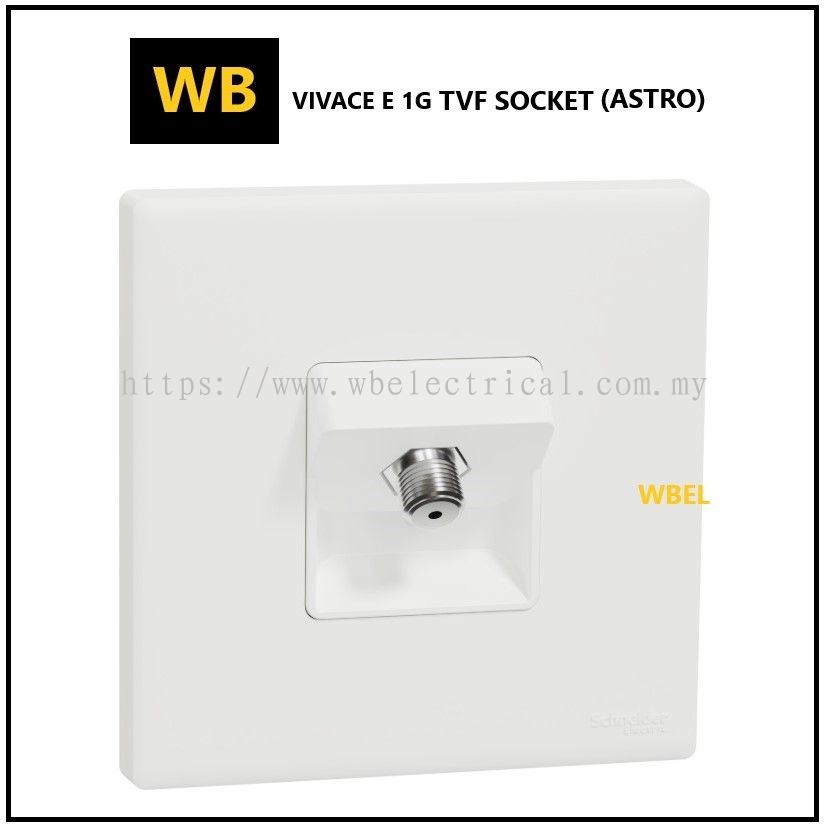

Schneider Vivace E 1 Gang TVF Socket - Astro [KBN31TVF_WE]

MAIN
Brand:     Schneider
Range:     Vivace E
Product or component type:     TV Socket
Device application:     Communication

COMPLEMENTARY
Number of gangs:     1 gang
Number of outputs:     1
Colour tint:     White
Material:     PC (polycarbonate)
Maximum insertion loss:     0.5 dB (+/- 1 dB) at 5...300 MHz (IN-TV)
                                           1 dB (+/- 1 dB) at 300...1,000 MHz (IN-TV)
TV Connector:     Male
Device mounting:     Flush
Mounting support:     Wall mounted
Fixing mode:     By screw
Fixing center:     60.3 mm
Connections - terminals:     Screw terminal
Dimension:     (W) 86 mm x (H) 86 mm x (D) 20.12 mm
TV socket type:     TV
Surface finish:     Glossy

ENVIRONMENT
Standards:     IEC 60670-1
Ambient air temperature for storage:     -5...60 °C
Ambient air temperature for operation:     -5...50 °C
Relative humidity:     0...95 %
Operating altitude:     <= 2,000 m
IP degree of protection:     IP20
