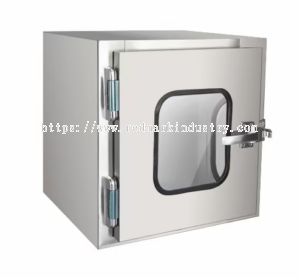

KAAS – Static Pass Box

Brand: KAAS
Product Type: Cleanroom Static Pass Box
Application: Controlled transfer of small items between clean and less-clean areas

Overview

The KAAS Static Pass Box is designed for transferring small items, samples, tools and production materials between cleanrooms and adjacent less-clean or uncontrolled areas.

By allowing items to pass through a dedicated transfer chamber, the pass box helps reduce the frequency of opening cleanroom access doors and limits direct air exchange between both areas.

The chamber can be configured with either a mechanical interlock or an electrical interlock, preventing both doors from being opened at the same time. Stainless-steel or powder-coated construction options are available, together with standard and customised chamber sizes.

The source catalogue shows five common size configurations, SS304 or powder-coated construction, mechanical or electrical interlocking and an optional UV lamp.


Applications

• Pharmaceutical manufacturing

• Medical-device facilities

• Laboratories

• Hospitals and clinics

• Food-processing plants

• Electronics manufacturing

• LCD production

• Semiconductor facilities

• Biotechnology laboratories

• Cosmetic manufacturing

• Controlled packaging areas

• Research and development

• Cleanroom sample transfer

• Tool and component transfer

How the Static Pass Box Works

1. The operator opens the loading-side door.

2. The item is placed inside the chamber.

3. The loading-side door is closed.

4. The interlock prevents the opposite door from opening at the same time.

5. The receiving-side door is released.

6. The item is removed from the chamber.

7. The receiving-side door is closed before the next transfer cycle.

The pass box acts as a controlled transfer point and helps minimise direct communication between clean and non-clean areas.

Standard Size Options

Final chamber dimensions should be confirmed according to the item size, wall thickness and installation layout.

Technical Specifications

Key Features

Controlled Material Transfer

• Reduces unnecessary cleanroom door opening

• Helps limit direct air exchange

• Suitable for small components, samples and tools

• Supports cleaner material-transfer procedures


Interlocked Door System

• Mechanical interlock option
• Electrical interlock option
• Prevents both doors from opening simultaneously
• Helps maintain separation between different cleanliness zones

Durable Construction

• Full SS304 construction available

• Powder-coated steel option

• Smooth internal surfaces

• Suitable for routine cleanroom cleaning

Clear Internal Visibility

• Acrylic or glass viewing panel

• Allows operators to verify chamber status

• Helps prevent accidental obstruction

• Improves transfer coordination between both sides

Optional UV Lamp

• UV lamp can be fitted for supplementary surface exposure

• Suitable for selected transfer procedures

• Should not be treated as a replacement for validated sterilisation

Customisable Dimensions

• Standard chamber sizes available

• Custom width, depth and height

• Custom wall flange

• Custom door orientation

• Custom mounting arrangement

Construction Options

Full SS304 Construction

Recommended for:

• Pharmaceutical facilities
• Food-processing applications
• Medical-device manufacturing
• Laboratories
• Higher-cleanliness environments

Powder-Coated Steel

Suitable for:

• General industrial applications
• Cost-sensitive projects
• Controlled indoor environments

Mixed Construction

A mixed configuration may include:

• Stainless-steel internal chamber
• Powder-coated external body
• Stainless-steel doors
• Custom cleanroom wall flanges
