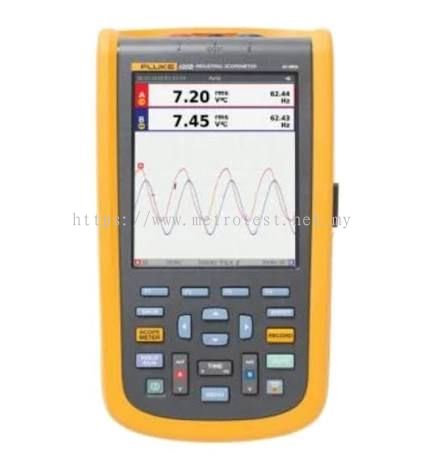

Product overview: Fluke 120B Series Industrial ScopeMeter handheld Oscilloscopes
Simplified testing, more insightThe compact ScopeMeter® 120B Series, is the rugged oscilloscope solution for industrial electrical and electro-mechanical equipment troubleshooting and maintenance applications. It’s a truly integrated test tool, putting the functions of an oscilloscope, multimeter, and high-speed recorder into one, easy-to-use instrument. The ScopeMeter 120B Series also integrates with Fluke Connect® mobile app and FlukeView® for ScopeMeter software to enable further collaboration, data analysis, and archiving of critical test information.*Not all models are available in all countries. Check with your local Fluke representative.Faster electro-mechanical troubleshooting
Voltage and current unbalance
Check the voltage unbalance at the input terminals of the frequency speed drive so you can ensure the phase unbalance is not too high (> 6-8 %), and that the phase rotation is correct. You can also check the current unbalance, as excessive unbalance may indicate a drive rectifier problem.
Extended harmonic measurements
Excessive harmonics are not just a threat to your rotating machines but also to other equipment connected to the electrical power system. The MDA-550 provides the ability to discover the harmonics of the motor-drive but can also discover the possible effects of inverter switching electronics. The MDA-550 has three harmonic ranges, 1st to 51st Harmonics, 1 to 9 kHz and 9 kHz to 150 kHz giving the ability to detect any harmonic pollution problems.
One of the interesting aspects of the publication is its emphasis on Predictive Maintenance (PdM). While Chapter 5 defines, explains, and provides comparisons and examples of maintenance program types, the guide devotes an entire chapter (Chapter 6) to PdM. Three of the PdM technologies presented in the guide include thermography , vibration analysis, and performance trending. I’ll come back to this.
