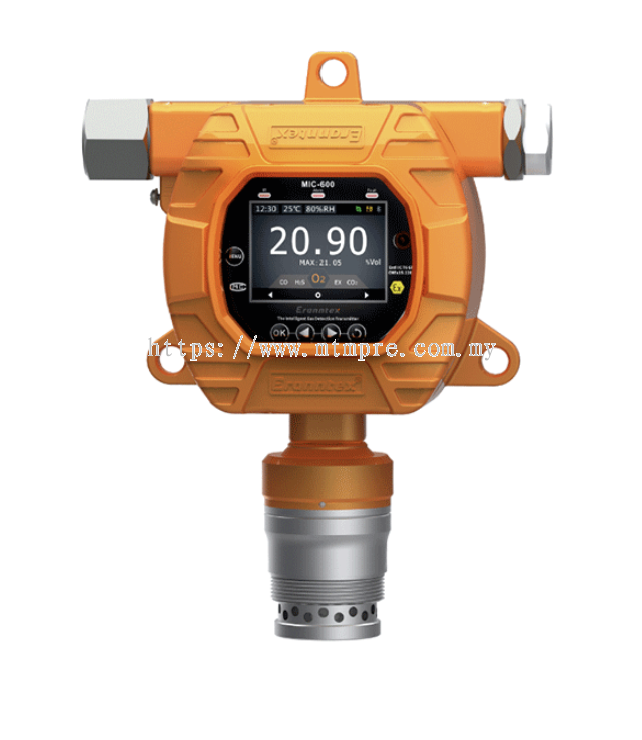

The Fixed Multi-Gas Detector is a multi-gas simultaneous monitoring and safety warning device specifically designed for fixed operational environments such as industrial production, warehousing, chemical industrial parks, and underground utility tunnels. Its core functionality integrates multiple high-precision gas sensors to continuously monitor two or more target gases in the environment (e.g., combustible methane, toxic carbon monoxide/hydrogen sulfide, oxygen in oxygen-deficient/oxygen-enriched environments, or sulfur dioxide/nitrogen oxides in industrial exhaust) . This enables real-time detection of abnormal gas concentrations and immediate safety alerts. hydrogen sulfide, oxygen in oxygen-deficient/oxygen-enriched environments, or sulfur dioxide/nitrogen oxides in industrial exhaust), enabling real-time monitoring. It promptly detects abnormal gas concentration changes and triggers alarms, preventing safety incidents like poisoning, explosions, or suffocation caused by gas leaks at their source.
Fixed Multi-Gas Detector Features:
Simultaneously detects 1 to 6 gases with freely switchable units.
Diverse communication methods.
Enables real-time monitoring via wired/wireless remote transmission or network communication; Simultaneous output of standard RS485 bus (Modbus-RTU) and 4-20mA standard signals; Optional frequency output (200-1000Hz), Hart protocol signals, 1-5V output, wireless transmission (2-5km or unlimited range); Compatible with secondary instruments, data acquisition modules, PLCs, and DCS systems; capable of driving related equipment. Optional MIC2000 controller enables simultaneous monitoring of up to 1000 detectors.
Infrared Remote Control.
Standard infrared remote control enables one-touch operation via function keys, allowing cover-free operation in hazardous environments. Functions include: alarm point modification, concentration calibration, zero calibration, mute, and factory reset.
Rich Human-Machine Interface.
2.5-inch high-definition color screen displays real-time concentration, alarms, time, temperature, humidity, and storage information; Menu interface employs high-definition simulated graphics to display functional names for each menu.
Large-capacity data storage with multiple storage modes.
Standard 100,000-data-point storage capacity; optional SD card storage supports real-time logging, scheduled logging, or alarm-level data logging only. Data can be viewed/deleted locally or uploaded via RS485 interface for computer analysis or printing.
High-temperature gas detection (optional).
Optional high-temperature sampling cooling filter handle or high-temperature/high-humidity pre-treatment system enables detection of flue gas up to 1300°C. Customization available for other temperature ranges.
Three switchable display modes.
Simultaneously displays multiple gas concentrations; large-font cyclic display of single-channel gas concentration; real-time curve display.
Graphical display shows gas concentration trends over time as curves.
● Data recovery function allows partial or full restoration, eliminating concerns over accidental operations.
● High-precision temperature and humidity measurement (optional).
● Multiple alarm methods with multi-directional visual/audible alerts. Includes: 3 sets of relay switch outputs, audible/visual alarms, and display visual alerts. Alarm types: concentration alarm, low voltage alarm, fault alarm.
● Multiple alarm mode settings: low alarm, high alarm, range alarm, weighted average alarm.
● Misoperation detection: Automatically identifies and prevents incorrect concentration calibration procedures, mitigating human-induced errors.
● Automatic zero tracking: Eliminates long-term zero drift effects.
● Multi-level target point calibration: Ensures measurement linearity and accuracy.
● Selectable Chinese/English interface.
● Wide operating temperature range: -40°C to +70°C, with temperature compensation support.
● Logging Functionality
Records calibration logs, maintenance logs, fault records, and troubleshooting measures. Includes sensor lifespan expiration alerts and next concentration calibration reminder.
● Intrinsically Safe Circuit Design
Explosion-proof construction with Level 2 lightning and static protection. Complies with national standards, withstands high-intensity surge currents, and features reverse polarity protection. Meets EMI/EMC standards.
Production Capabilities:
Eranntex possesses its own smart manufacturing base and has accumulated valuable experience through years of production management, establishing over 30 quality management/inspection standards.
It has also obtained more than 10 industry-related certifications, including ISO 9001:2008 Quality Management System certification and ISO 14001:2015 Environmental Management System certification.
