Description

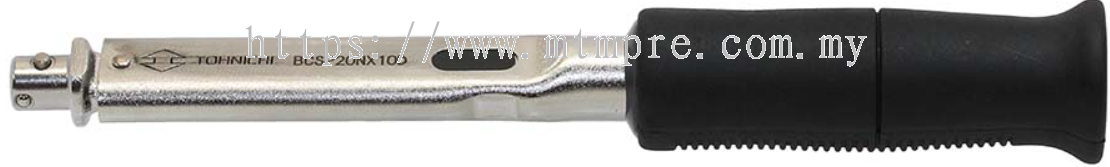

Tohnichi BCSP Torque Wrench

BCSP20NX10D [Overall length 193 mm]

BCSP70NX15D [Overall length 286mm]

Preset, for bidirectional tightening.
The set torque cannot be changed without using a special tool (sold separately), preventing the operator from changing torque by mistake.
A wide selection of interchangeable heads, letting you choose the right one for the task and reducing overall purchasing costs.
A clear “click” sound signals tightening completion upon reaching the set torque.
Only the BCSP400NX22D model has a metal handle with a knurled finish on the grip and the other models have a resin grip.
Tohnichi’s interchangeable head torque wrenches can be used with our interchange head lineup, which offers the best selection in the world, making these wrenches ideal for your work.
The BCSP series is compliant with ISO 6789:2017 starting January 2022. For more information, see the technical data “Initiatives for ISO 6789:2017” at the bottom of the screen.

MODEL			BCSP10N×8D	BCSP20N×10D	BCSP40N×12D	BCSP70N×12D	BCSP70N×15D	BCSP120N×15D	BCSP220N×19D	BCSP300N×22D	BCSP400N×22D
S.I. RANGE [Nem]	MIN.～MAX.		5～10	10～20	20～40	35～70		60～120	110～220	150～300	200～420
METRIC RANGE [kgfecm / kgfem]	MIN.～MAX.		kgfecm 50～100	100～200	200～400	350～700		600～1200	1100～2200	kgfem 15～30	20～42
AMERICAN RANGE [lbfein]	MIN.～MAX.		44.3～88.5	88.5～177	177～354	310～619		531～1061	974～1946	1328～2654	1770～3716
MAX. HAND FORCE[N]			57	108	193	250	241	344	495	455	422
DIMENSION [mm]	EFFECTIVE LENGTH	Ｌ	176	186	208	280	291	349.5	445	660	950
	OVERALL LENGTH	Ｌ’	190	193	214	286	290	349	430	628	918
	HEAD	d3	8	10	12		15		19	22
	BODY	ｍ	19		25.5	28			35		38.6
		ｎ	9.2		11.2	12.2			15		16.1
		ｄ	15		20	21.7			27.2		30
		Ｄ	29		34				38		40
WEIGHT[kg]			0.2		0.23	0.57		0.62	1.2	2	3.7
ADJUSTING TOOL (OPTIONAL ACCESSORY)			No.931		No.930,No.932						No.314
										Accuracy ±3%

Products are compliant with ISO 6789:2017 starting January 2022. Calibration Certificates will be different from older products.

BCSP10NX8D～BCSP300NX22D

BCSP400NX22D

Note: for interchangeable head insert dimensions, click here.

Specify Tohnichi, model name and torque value.

[EX.1] Tohnichi BCSP20N X 10D X torque free

[EX.2] Tohnichi BCSP70N X 15D X 50N0鹠

Not available for inspection purposes.
BCSP preset torque wrench needs torque tester for setting torque value. When ordering, be sure to specify operating torque.
Can be set only when left and right torque are the same.
