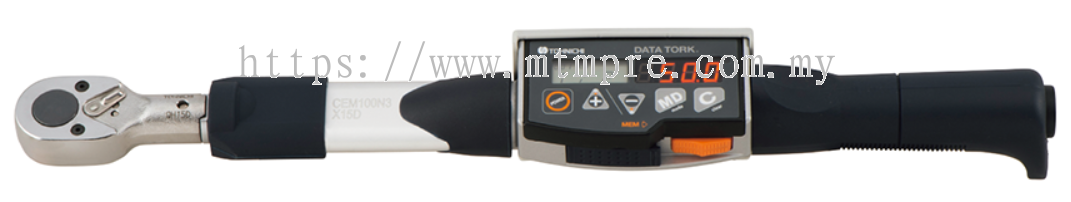

Tohnichi CEM3-P Digital Torque Wrench

Quality inspection torque wrench with data management software that links work name with test results.

CEM3-P

Application software

Application

For inspection or error-proofing tightening.

Features

ID management capabilities for measured parts and results.
The supplied application makes it easy to create and control site data.
Create data on the computer then transmit it to the CEM3-P.
Can be used for error-proofing (Pokayoke).
“Standard inspection software” developed for low cost data management.
Reasonable pricing helps with decision to use.
Ergonomically designed and adapted for Color Vision Deficiencies (Tohnichi Unified Design).
Applicable for international use including the EU region. With CE marking.
Tohnichi’s interchangeable head torque wrenches can be used with our interchange head lineup, which offers the best selection in the world, making these wrenches ideal for your work.

Specifications

Accuracy ±1%
S.I. MODEL		CEM10N3X8D-P	CEM20N3X10D-P		CEM50N3X12D-P	CEM100N3X15D-P
TORQUE RANGE [Nem]	MIN.MAX.	210	420		1050	20100
TORQUE RANGE [Nem]	1DIGIT	0.01	0.02		0.05	0.1
METRIC MODEL		CEM10N3X8D-M-P	CEM20N3X10D-M-P		CEM50N3X12D-M-P	CEM100N3X15D-M-P
TORQUE RANGE [kgfecm/kgfem]	MIN.MAX.	kgf0cm 20100	40200		100500	2001000
TORQUE RANGE [kgfecm/kgfem]	1DIGIT	kgf0cm 0.1	0.2		0.5	1
AMERICAN MODEL		CEM10N3X8D-I-P	CEM20N3X10D-I-P		CEM50N3X12D-I-P	CEM100N3X15D-I-P
TORQUE RANGE [lbfein/lbfeft]	MIN.MAX.	lbf0in 2090	36180		100450	200900
TORQUE RANGE [lbfein/lbfeft]	1DIGIT	lbf0in 0.1	0.2		0.5	1
MAX. HAND FORCE [N]		48.1	92.2		196.9	275.5
DIMENSION [mm]	EFFECTIVE LENGTH (L)	208	217		254	363
	OVERALL LENGTH (L')	212	214		282	384
	HEAD (d3)	8	10		12	15
WEIGHT [kg]		0.46	0.47		0.58	0.63
INTERCHANGEABLE HEAD		SH,RH,QH,HH 8D	SH,SH-N,RH,QH,DH,HH 10D		SH,RH,QH,RQH,DH,HH 12D	SH,RH,QH,RQH,DH,HH 15D

Accuracy ±1%
S.I. MODEL		CEM200N3X19D-P	CEM360N3X22D-P	CEM500N3X22D-P	CEM850N3X32D-P
TORQUE RANGE [Nem]	MIN.MAX.	40200	72360	100500	170850
TORQUE RANGE [Nem]	1DIGIT	0.2	0.4	0.5	1
METRIC MODEL		CEM200N3X19D-M-P	CEM360N3X22D-M-P	CEM500N3X22D-M-P	CEM850N3X32D-M-P
TORQUE RANGE [kgfecm/kgfem]	MIN.MAX.	4002000	7203600	kgf0m 1050	1785
TORQUE RANGE [kgfecm/kgfem]	1DIGIT	2	4	kgf0m 0.05	0.1
AMERICAN MODEL		CEM200N3X19D-F-P	CEM360N3X22D-F-P	CEM500N3X22D-F-P	CEM850N3X32D-F-P
TORQUE RANGE [lbfein/lbfeft]	MIN.MAX.	lbf0ft 30150	52260	72360	124620
TORQUE RANGE [lbfein/lbfeft]	1DIGIT	lbf0ft 0.2	0.4	0.5	1
MAX. HAND FORCE [N]		428.3	498.6	549.5	608
DIMENSION [mm]	EFFECTIVE LENGTH (L)	467	722	910	1398
	OVERALL LENGTH (L')	475	713	949	1387
	HEAD (d3)	19	22		32
WEIGHT [kg]		0.78	1.13	4.00	5.14
INTERCHANGEABLE HEAD		SH,RH,QH,RQH,DH,HH 19D	SH,RH,QH,RQH,DH,HH 22D		SH,RH,QH 32D

CEM3-P standard software general discriptions
Portion Memory		Max. 100 parts (Part name, number of screws, tightening direction, high / low torque, measuring order.)
Measurement Data Storage		Up to 3,000 screw data (vary depending on parts registered), measurement part name, measured value, pass / fail judgement, measurement time and data.)

DISPLAY		7 segments LED 4 lines 10 mm
		14 segments LCD 3 lines 7 mm
		7 segments LED 4 lines 3 mm
		Battery Life Indicator ( 4 steppes )
		Judgment LED RED / BLUE
COMMUNICATION FUNCTIONS		RS232C ( 2400-19200 bps )
COMMUNICATION FUNCTIONS		Serial output corresponding to a USB connecter
POWER SUPPLY		Ni-MH rechargeable battery
CONTINUOUS USE		Approx. 20 hrs with fully charged ( 8 hrs by 1 hour recharging )
RECHARGING TIME		Approx. 3.5 hrs
OPERATION TEMPERATURE[]		040 no condensation

BASIC FUNCTION		Peak Hold
		Peak Data Memory with date and time
		Auto Memory & Resetting
		Tightening Completion Buzzer
		Judgment of Measured Data
		Auto Zero setting
		Auto power o ( 3 min )
		Clock

Standard accessory

Comes with dedicated software for management for portion master and inspected data, connecting cable part (584), Battery pack (BP-5), QH head, Quick battery charger.
