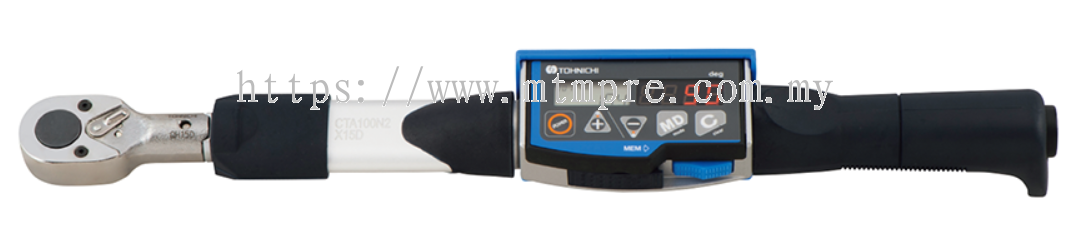

Tohnichi CTA2/CTA2-G Angle Wrench

Digital angle torque wrench with snug and angle setting functions for production use. Compatible also with custom-modified Bluetooth®-equipped CTA2-BT / CTA2-G-BT.

CTA100N2X15D [Overall length 384 mm]

CTA500N2X22D [Overall length 949 mm]

Compatible also with custom-modified Bluetooth®-equipped CTA2-BT / CTA2-G-BT.

For more detailed information regarding these points, please contact us.

Application

For rotation angle tightening

Features

Applicable in angle-controlled bolt tightening in small lot production for maintenance and after-sales service, or back up for angle-tightening nut runners.
Designed for angle tightening in sequence for flange-shape bolt arrangement (e.g. cylinder head).
Includes software for data management through PC.
As tightening passes the snug torque, the values on the display switch to angle values. Upon reaching the set angle, the buzzer goes off and LED turns on to signal completion.
Regular CTA and CTA-P functions can now be performed with a simple keypad operation for setting snug torque and tightening angle.
Tohnichi’s interchangeable head torque wrenches can be used with our interchange head lineup, which offers the best selection in the world, making these wrenches ideal for your work.
Compatible also with custom-modified Bluetooth®-equipped CTA2-BT / CTA2-G-BT. Please contact us for further details.

Specifications

MODEL			CTA50N2×12D-G	CTA100N2×15D-G	CTA200N2×19D-G	CTA360N2×22D-G	CTA500N2×22D-G	CTA850N2×32D-G
TORQUE RANGE [Nem]	MIN. ~ MAX.		（1）10～50	（2）20～100	（4）40～200	（7）72～360	（10）100～500	（17）170～850
	1 DIGIT		0.05	0.1	0.2	0.4	0.5	1
TORQUE RANGE [kgfecm]	MIN. ~ MAX.		（10）100～500	（20）200～1000	（40）400～2000	（70）720～3600	（100）1000～5000	－
	1 DIGIT		0.5	1	2	4	5	－
TORQUE RANGE [kgfem]	MIN. ~ MAX.		（0.1）1～5	（0.2）2～10	（0.4）4～20	（0.7）7～36	（1）10～50	（1.8）17～85
	1 DIGIT		0.005	0.01	0.02	0.05		0.1
TORQUE RANGE [lbfein]	MIN. ~ MAX.		（9.0）100～450	（18）200～900	（35）350～1750	（62）640～3150	（85）880～4400	－
	1 DIGIT		0.5	1	2	5		－
TORQUE RANGE [lbfeft]	MIN. ~ MAX.		（0.7）7.5～36.5	（1.6）15～75	（3）30～150	（5.2）52～260	（7.0）72～360	（13）124～620
	1 DIGIT		0.05	0.1	0.2	0.5		1
ANGLE MEASURING RANGE	MIN. ~ MAX.		0～999°
	1 DIGIT		1°
ANGLE ACCURACY			±2° + 1 Stelle (Winkelgeschwindigkeit 30°/s ~ 180°/s beim Drehen der Schraube um 90°)
MAX. HAND FORCE［N］			196.9	275.5	428.3	498.6	549.5	608
DIMENSION [mm]	EFFECTIVE LENGTH	Ｌ	254	363	467	722	910	1398
	OVERALL LENGTH	Ｌ’	282	384	475	713	949	1387
	HEAD	ｄ３	12	15	19	22		32
WEIGHT[kg]			0.58	0.63	0.78	1.13	4	5.14
							Accuracy　±１％

DATA MEMORY			999 data (Tightening Torque,1st angle value, 2nd angle value, 3rd angle value and fi nal torque value)			OTHER FUNCTIONS	Snug torque / tightening torque max tightening torque / 1st, 2nd, 3rd angle 1st, 2nd, 3rd max angle number of bolts auto reset / judgment. Setting thru PC. Battery indicator.
MEASUREMENT MODE			Single spindle/Production mode
DATA OUTPUT			RS232C compliant
ZERO ADJUSTMENT			Auto zero (Angle, Torque)
POWER			Ni-MH rechargeable battery
CONTINUOUS USE			Approx, 20 hours with fully charged (8 hours by 1 hour recharging)
RECHARGING TIME			Approx. 3.5 hours
TEMPERATURE IN USE			0～40℃ no condensation
