Description

Tohnichi PHL/PHLE2 Torque Wrench


The optimum torque wrench for piping tasks and screw joint reinforcement tightening.

PHLE850N2 [Overall length 1664 mm]

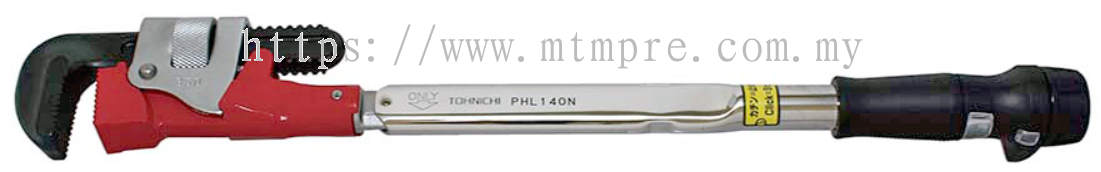

PHL140N [Overall length 517 mm]

PHL140N

With the PHLE2 torque wrench, torque can be set using the built-in torque adjustment handle.





Application

  • Piping tasks, screw joint reinforcement tightening, etc.

Features

  • The torque wrench head is a piping wrench type, giving it excellent capabilities for piping tasks, screw joint reinforcement tightening, etc.
  • A clear “click” sound signals tightening completion upon reaching the set torque.
  • Torque setting is easy to adjust by knob and scale.

Specifications

Accuracy ±5%
S.I. MODEL PHL50N PHL100N PHL140N PHL200N PHL280N PHL420N PHLE850N2 PHLE1300N2
TORQUE RANGE
［N0鹠］		 MIN.～MAX. 10～50 20～100 30～140 40～200 40～280 60～420 200～850 300～1300
GRAD. 0.5 1 2 5
METRIC MODEL 500PHL3 900PHL3 1400PHL3 1800PHL3 2800PHL3 4200PHL 8500PHLE2 13000PHLE2
TORQUE RANGE
［kgf0鹀m/kgf0鹠］		 MIN.～MAX. kgf0鹀m
100～500		 200～900 400～1400 400～1800 kgf0鹠
4～28		 6～42 20～85 30～130
GRAD. kgf0鹀m
5		 10 20 kgf0鹠
0.2		 0.5 1
AMERICAN MODEL 450PHL3-A 900PHL3-A 1400PHL3-A 1800PHL3-A 2800PHL3-A 4200PHL-A PHLE600F PHLE900F
TORQUE RANGE
［lbf0鹖n/lbf0鹒t］		 MIN.～MAX. lbf0鹖n
100～400		 lbf0鹒t
15～75		 30～100 30～150 30～200 60～300 150～600 200～900
GRAD. lbf0鹖n
5		 lbf0鹒t
1		 2 5 10
GRIPPABLE PIPE DIA.［mm］ 13～38 26～52
OVERALL LENGTH［mm］ 396 472 517 620 833 1139 1664 1831
WEIGHT［kg］ 1.5 1.6 1.8 2.3 2.9 4.8 8.2 10

Notes

Accuracy of PHL/PHLE2 is ±5%.

Dimensions

Expand dimensions

PHL50N～280N

PHL420N

PHLE850N2,PHLE1300N2


◆ How to order

[Tohnichi] [Model] Please specify.

[Example] Tohnichi PHL100N


◆ Things to remember when ordering

Not available for inspection purposes.

PHLE2 comes with extension handle.

Because effective length depends on the piping caliber being used, PHL/PHLE2 accuracy is ±5%.
