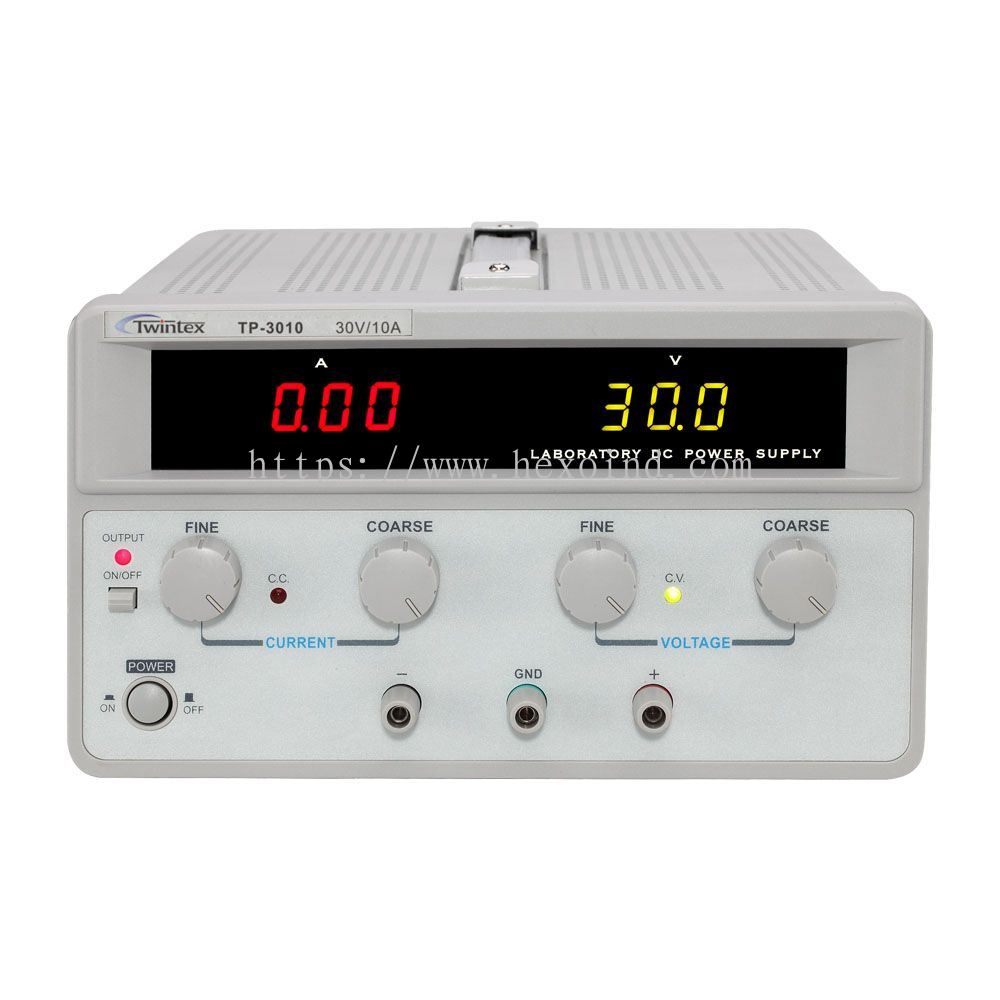

TP-3010 and TP-6005 are single-channel linear DC power supply. It takes AC input from a mains outlet and converts it to a regulated single variable DC output voltage, using a toroidal transformer and other circuits. The output voltage and current is continuously variable by the course and fine adjustment knobs. The single-channel variable linear DC power supply is a simple and reliable DC source in lab work for scientific research, laboratory and schools.
Hot models
Selection Guide
| Model | TP-3010 | TP-6005 | TP-3020 | TP-6010 |
| Output voltage | 0~30V | 0~60V | 0~30V | 0~60V |
| Output current | 0~10A | 0~5A | 0~20A | 0~10A |
| Voltmeter | 3 digits LED | 3 digits LED | 3 digits LED | 3 digits LED |
| Ammeter | 3 digits LED | 3 digits LED | 3 digits LED | 3 digits LED |
| Resolution | 100mV/10mA | 100mV/10mA | 100mV/100mA | 100mV/10mA |
| Preset V&I | √ | √ | ||
| Output ON/OFF | √ | √ | √ | √ |
| Dimension | 255Wx155Hx370D mm | 255Wx155Hx330D mm | ||
| Weight | 10kg | 10kg | 14kg | 14kg |
