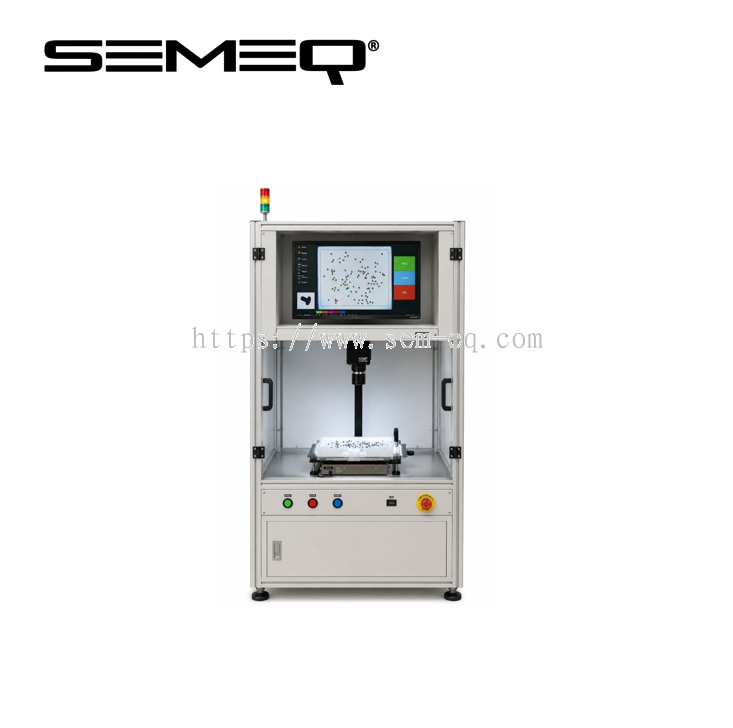

An Industrial Machine Vision Inspection System is an automated quality inspection machine that combines industrial cameras, precision optics, controlled lighting, image processing software, and artificial intelligence (AI) to inspect manufactured products without human intervention.
The system captures high-resolution images of parts, compares them with predefined quality standards, and automatically determines whether each product passes or fails inspection. These systems are widely used in electronics, automotive, semiconductor, medical device, food & beverage, pharmaceutical, and packaging industries.
Components :
Advantages :
Applications :
Electronics Industry
PCB inspection
Connector inspection
IC inspection
SMT inspection
Component verification
Automotive Industry
Engine component inspection
Gear inspection
Bearing inspection
Brake component inspection
Semiconductor Industry
Wafer inspection
Chip inspection
Lead frame inspection
Medical Industry
Syringe inspection
Medical device inspection
Surgical instrument inspection
Pharmaceutical Industry
Tablet inspection
Bottle inspection
Label verification
Food & Beverage
Bottle cap inspection
Label inspection
Fill level inspection
Packaging inspection
Packaging Industry
Barcode verification
Print quality inspection
Seal inspection
Date code verification
Plastic Industry
Mold defect inspection
Flash inspection
Surface inspection
Metal Industry
Weld inspection
Surface scratch inspection
Hole inspection
Parameters :
| Parameter | Typical Value |
| Camera Resolution | 2 MP – 25 MP |
| Camera Type | Area Scan / Line Scan |
| Lens | Fixed / Telecentric |
| Lighting | LED Ring, Dome, Bar, Backlight |
| Inspection Speed | Up to 1000 parts/min |
| Repeatability | ±0.01 mm |
| Measurement Accuracy | ±2–10 µm |
| Working Distance | 50–500 mm |
| Display | 15–22 inch Touchscreen |
| Controller | Industrial PC |
| Communication | Ethernet, USB, TCP/IP, Modbus, Profinet |
| Operating Voltage | AC 220–240 V |
| Frequency | 50/60 Hz |
| Air Supply | 0.5–0.7 MPa (if pneumatic) |
| Operating Temperature | 10–40°C |
| Relative Humidity | <80% RH |
| Protection | Safety enclosure |
| Specification | Description |
| Machine Type | Industrial Machine Vision Inspection System |
| Inspection Method | Non-contact optical vision inspection |
| Machine Structure | Aluminum extrusion frame with enclosed safety cabinet |
| Camera System | Industrial area scan or line scan camera |
| Lens Type | Fixed focal length or telecentric lens |
| Lighting System | High-intensity LED ring light, dome light, bar light, or backlight |
| Image Processing | Industrial machine vision software with AI capability |
| Control System | Industrial PC with touchscreen Human Machine Interface (HMI) |
| Display | Touchscreen monitor for machine operation and inspection monitoring |
| Inspection Function | Automatic Pass/Fail judgment based on programmed inspection criteria |
| Measurement Capability | Dimension measurement, position verification, and geometric analysis |
| Defect Detection | Surface defects, scratches, cracks, dents, contamination, and missing components |
| Object Recognition | Pattern matching, color verification, OCR, barcode, and QR code reading |
| Product Fixture | Customizable fixture or positioning jig according to product type |
| Data Storage | Inspection images, production records, and statistical reports |
| User Interface | Recipe management, production monitoring, alarm display, and system configuration |
| Communication Interface | Ethernet, USB, TCP/IP, RS-232, RS-485, Digital I/O, Modbus TCP, EtherNet/IP, PROFINET, OPC UA |
| Connectivity | PLC, MES, SCADA, and factory automation integration |
| Safety Features | Transparent safety enclosure, emergency stop button, status tower light, safety interlock |
| Power Supply | AC 220–240 V, 50/60 Hz (typical) |
| Pneumatic Requirement | Clean compressed air (if pneumatic actuator is installed) |
| Operating Environment | Indoor industrial environment with controlled temperature and humidity |
| Inspection Speed | Configurable according to product size and production line requirements |
| Accuracy | High-precision measurement depending on camera resolution and optics |
| Repeatability | Consistent inspection results with minimal variation |
| Expandability | Supports multiple cameras, lighting modules, robotic integration, and automatic reject systems |
| Software Features | AI inspection, edge detection, blob analysis, calibration, SPC, image archive, production reporting |
| Maintenance | Modular design for easy maintenance and component replacement |
| Applications | Electronics, automotive, semiconductor, medical devices, pharmaceutical, food & beverage, packaging, plastics, and metal manufacturing |
