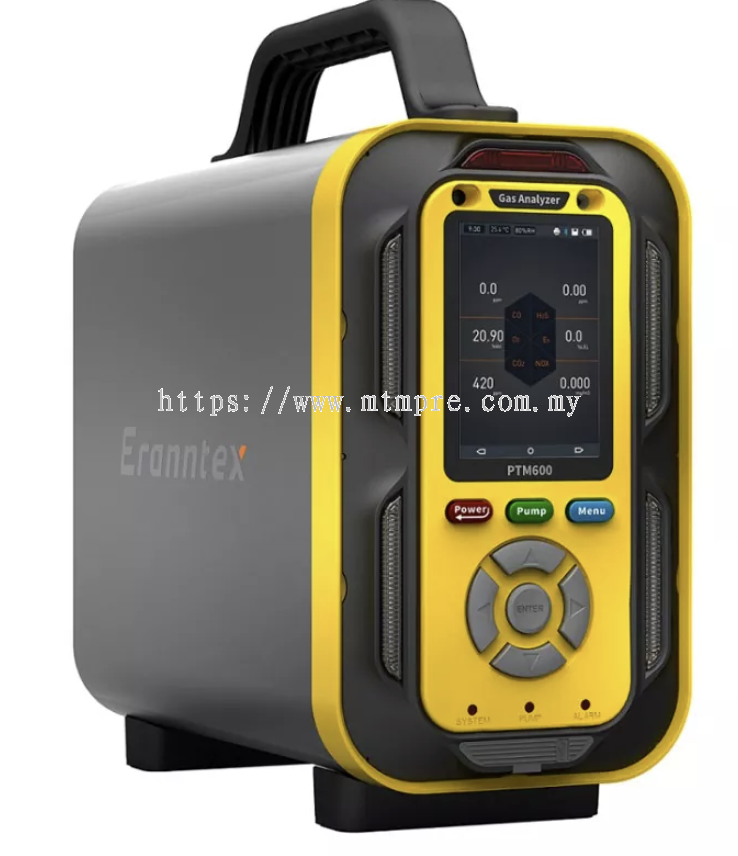

The Eranntex BTYQ-PTM600 Portable Fumigation Gas Analyzer is equipped with a multi-dimensional alarm mechanism, including audible, visual, audible, visual, and vibration alarms. It covers three alarm types: concentration exceeding the specified limit, battery undervoltage, and system failure. Alarms support low limit, high limit, range, and weighted average triggering. The device has a one-button restore function for factory settings, automatic zero tracking technology eliminates the effects of drift during long-term use, and a multi-level calibration process combined with an automatic interception mechanism for misoperation ensures accuracy. An optional temperature and humidity monitoring module is available, and RS485 communication interface expansion is supported. Other functions or interfaces can be customized on demand. OEM/ODM in-depth customization services are also available to meet special scenario requirements.
|
Parameter |
Specification |
|
Target Gases |
Methyl Bromide (CH Br), Sulfuryl Fluoride (SO F ) |
|
Detection Range |
CH Br: 0-100ppm; SO F : 0-100ppm |
|
Resolution |
0.1ppm |
|
Detection Principle |
CH Br: PID (Photoionization Detector); SO F : High-Precision Long-Path Infrared (IR) |
|
Typical Accuracy |
≤±2% F.S (Higher accuracy customizable) |
|
Linearity |
≤±2% |
|
Repeatability |
≤±2% |
|
Uncertainty |
≤±2% |
|
Response Time (T90) |
≤20 seconds |
|
Recovery Time |
≤30 seconds |
|
Operating Environment |
Temp: -20 to +55 (Typical), -40 to +70 (Extended); Humidity: ≤95% RH (Non-condensing)<br>(High-temp sampling handle optional for extreme conditions) |
|
Temp/Humidity Sensor (Opt.) |
Temp: -40~+70 (±0.5); Humidity: 0~100% RH (±3% RH) |
|
Power Supply |
3.7VDC, 5400mAh × 2 rechargeable polymer batteries |
|
Display & Control |
3.5-inch color screen, 8-button interface |
|
Sampling Method |
Built-in pump (500 mL/min flow rate) |
|
Communication |
USB (charging/data), optional RS485, infrared |
|
Data Storage |
100,000 datasets (expandable) |
|
IP Rating |
IP66 |
|
Explosion Proof |
Intrinsically Safe Exia IIC T4 Ga |
|
Dimensions |
Standard: 255×210×125mm (L×H×W); Custom: 420×210×125mm |
|
Weight |
3.2 kg (varies by configuration) |
|
Standard Accessories |
Manual, certificate, warranty card, back clip, USB charger (with cable), 0.4m stainless steel probe (with sintered metal filter), aluminum case |
|
Optional Features |
Pressure detection, fall alarm, Bluetooth/WiFi/LoRa/4G/5G, RS232/485 output, SOS button, linked alarms, anemometer, particulate matter sensor |
|
Optional Accessories |
0.9m telescopic probe, high-temp/high-humidity filter handles, built-in printer |
|
Applications |
Petrochemicals, pharmaceuticals, environmental monitoring, gas distribution, storage tanks, flue gas analysis, air quality management, and other scenarios requiring portable gas detection |
All-in-one interface
single gas interface
curve display interface
(The all-in-one interface is not available for single gas detection)
The Eranntex BTYQ-PTM600CH3BrSO2F2Portable fumigation gas analyzer optional accessories: (Optional accessories require additional charges)
High humidity filter
telescopic sampling handle
High-temperature sampling handle
(0.3m 400°C/0.7m 800°C/1.2m 1300°C; three sizes available)
|
Detectable Gas |
Detection Range |
|
Combustible Gas (EX) |
0-100%LEL, 0-100%Vol |
|
Methane (CH ) |
0-100%LEL, 0-100%Vol, 0-1000ppm, 0-10000ppm |
|
Oxygen (O ) |
0-30%Vol, 0-100%Vol, 0-5000ppm |
|
Nitrogen (N ) |
0-100%Vol |
|
Carbon Monoxide (CO) |
0-100ppm, 0-1000ppm, 0-2000ppm, 0-20000ppm, 0-100000ppm |
|
Carbon Dioxide (CO ) |
0-500ppm, 0-2000ppm, 0-5000ppm, 0-50000ppm, 0-20%Vol, 0-100%Vol |
|
Formaldehyde (CH O) |
0-10ppm, 0-100ppm, 0-1000ppm |
|
Ozone (O ) |
0-1ppm, 0-5ppm, 0-50ppm, 0-100ppm, 0-2000ppm, 0-30000ppm |
|
Hydrogen Sulfide (H S) |
0-10ppm, 0-50ppm, 0-100ppm, 0-2000ppm, 0-10000ppm |
|
Sulfur Dioxide (SO ) |
0-10ppm, 0-20ppm, 0-100ppm, 0-500ppm, 0-2000ppm, 0-10000ppm |
|
Nitric Oxide (NO) |
0-10ppm, 0-100ppm, 0-2000ppm, 0-5000ppm |
|
Nitrogen Dioxide (NO ) |
0-10ppm, 0-100ppm, 0-2000ppm, 0-5000ppm |
|
Nitrogen Oxides (NOx) |
0-10ppm, 0-100ppm, 0-2000ppm, 0-5000ppm |
|
Chlorine (Cl ) |
0-10ppm, 0-20ppm, 0-200ppm, 0-2000ppm |
|
Ammonia (NH ) |
0-10ppm, 0-100ppm, 0-1000ppm, 0-5000ppm, 0-100%LEL |
|
Hydrogen (H ) |
0-100%LEL, 0-1000ppm, 0-20000ppm, 0-40000ppm, 0-100%Vol |
|
Helium (He) |
0-100%Vol |
|
Argon (Ar) |
0-100%Vol |
|
Xenon (Xe) |
0-100%Vol |
|
Hydrogen Cyanide (HCN) |
0-30ppm, 0-100ppm |
|
Hydrogen Chloride (HCl) |
0-20ppm, 0-200ppm |
|
Phosphine (PH ) |
0-10ppm, 0-100ppm, 0-1000ppm, 0-4000ppm |
|
Chlorine Dioxide (ClO ) |
0-1ppm, 0-10ppm, 0-200ppm |
|
Ethylene Oxide (ETO) |
0-100ppm, 0-1000ppm, 0-100%LEL |
|
Phosgene (COCl ) |
0-1ppm, 0-50ppm |
|
Silane (SiH ) |
0-1ppm, 0-50ppm |
|
Fluorine (F ) |
0-1ppm, 0-10ppm, 0-50ppm |
|
Hydrogen Fluoride (HF) |
0-10ppm, 0-50ppm |
|
Hydrogen Bromide (HBr) |
0-50ppm |
|
Diborane (B H ) |
0-10ppm |
|
Arsine (AsH ) |
0-1ppm, 0-10ppm, 0-50ppm |
|
Germane (GeH ) |
0-2ppm, 0-20ppm |
|
Hydrazine (N H ) |
0-1ppm, 0-300ppm |
|
Tetrahydrothiophene (THT) |
0-100mg/m³ |
|
Bromine (Br ) |
0-10ppm, 0-100ppm, 0-2000ppm |
|
Acetylene (C H ) |
0-100%LEL, 0-100ppm, 0-1000ppm |
|
Ethylene (C H ) |
0-100%LEL, 0-100ppm, 0-2000ppm |
|
Ethanol (C H O) |
0-100ppm, 0-2000ppm, 0-100%LEL |
|
Methanol (CH O) |
0-100ppm, 0-2000ppm |
|
Carbon Disulfide (CS ) |
0-50ppm, 0-5000ppm |
|
Acrylonitrile (C H N) |
0-50ppm, 0-2000ppm |
|
Methylamine (CH N) |
0-50ppm |
|
Iodine (I ) |
0-50ppm |
|
Styrene (C H ) |
0-10ppm, 0-100ppm, 0-200ppm, 0-1000ppm, 0-5000ppm |
|
Vinyl Chloride (C H Cl) |
0-100ppm, 0-1000ppm |
|
Trichloroethylene (C HCl ) |
0-100ppm, 0-1000ppm |
|
Tetrachloroethylene (C Cl ) |
0-100ppm, 0-1000ppm |
|
Nitrous Oxide (N O) |
0-100ppm |
|
Nitrogen Trifluoride (NF ) |
0-100ppm |
|
Hydrogen Peroxide (H O ) |
0-100ppm, 0-1000ppm |
|
Methyl Bromide (CH Br) |
0-100ppm, 0-30000ppm, 0-200g/m³ |
|
Sulfuryl Fluoride (SO F ) |
0-100ppm, 0-5000ppm, 0-10000ppm |
|
Benzene (C H ) |
0-10ppm, 0-100ppm, 0-1000ppm, 0-10000ppm |
|
Toluene (C H ) |
0-10ppm, 0-100ppm, 0-1000ppm, 0-10000ppm |
|
Xylene (C H ) |
0-10ppm, 0-100ppm, 0-1000ppm, 0-10000ppm |
|
VOC |
0-10ppm, 0-100ppm, 0-1000ppm, 0-10000ppm |
|
TVOC |
0-10ppm, 0-100ppm, 0-1000ppm, 0-10000ppm |
|
Non-Methane Total Hydrocarbons |
0-10ppm, 0-100ppm, 0-1000ppm, 0-10000ppm |
|
Refrigerants |
0-1000ppm, 0-2000ppm, 0-5000ppm |
|
Sulfur Hexafluoride (SF ) |
0-1000ppm, 0-2000ppm, 0-3000ppm |
