DATATEST DT-CO500 Carbon Monoxide Sensor: Top Choice in Selangor, Malaysia, Kuala Lumpur (KL), Puchong MTM Precision Sdn Bhd

Description

Brief introduction:

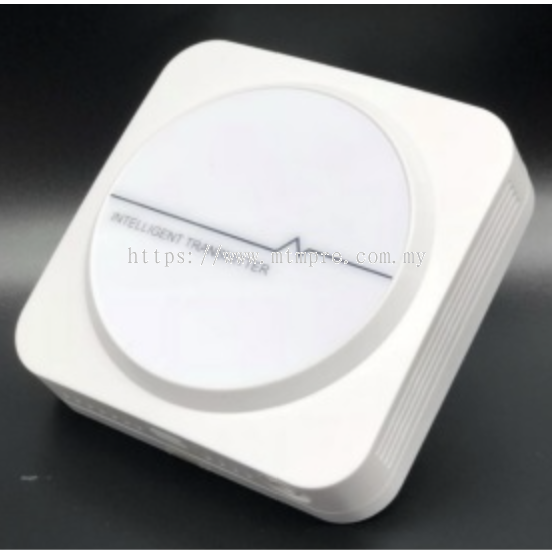

This carbon monoxide sensor is specifically designed to measure carbon monoxide gas in the air, such as in enclosed or semi-enclosed parking lots and other public places. Utilizing an imported CO sensor, it boasts superior long-term stability and accuracy, ensuring excellent performance. Suitable for various public environments such as parking lots, garages, and buildings. A large, clear LCD display module can be configured to meet on-site display needs.

Details:

【Product Overview】
This series of carbon monoxide sensors is specifically designed for measuring carbon monoxide gas in the air, such as in enclosed or semi-enclosed parking lots and other public places. Utilizing imported CO sensors, it boasts superior long-term stability and excellent accuracy, ensuring the product's superior performance.
Suitable for use in various public environments such as parking lots, garages, and buildings.
This series of carbon monoxide sensors can be configured with a clear large-screen LCD display module to meet the needs of on-site display.
【Product Highlights】
u Electrochemical CO sensor
High sensitivity and fast response
u Standard signal transmission output
Excellent long-term stability
Stable, reliable, and easy to install.

【Precautions】
1. Please connect the circuit according to the wiring instructions.
2. During use and transportation, keep the sensor away from high temperature, high humidity, and high concentration of chemical solvents, and ensure good ventilation during use .
3. Long-term exposure to high concentrations of chemical vapors or dust will cause the sensor readings to drift, and long-term exposure to corrosive gas environments will lead to sensor failure.

【Technical Specifications】

Detecting gas	carbon monoxide (CO)
Measuring elements	Electrochemical CO sensor (imported)
Accuracy	<±5%ppm+5%reading
Measurement range	0-500ppm
Output signal	0-5VDC
Zero Drift	<5ppm (within service life)
Response time	≤30 seconds
Power supply	24VDC
High power	Less than 2.5W
Life expectancy	5 years (non-corrosive environment)
Work environment	Temperature: -10~50℃; Humidity: 0~95%RH (non-condensing)
Storage temperature	Temperature: -10~60℃; Humidity: 20~80%RH
Casing size	106×106×32mm
Installation method	Wall-mounted/Ceiling-mounted
weight	Approximately 200g
Shell material	ABS
