DATATEST DT-CO2 Carbon Dioxide Sensor
DATATEST DT-CO2 Carbon Dioxide Sensor



DATATEST DT-CO2 Carbon Dioxide Sensor

MTM Precision Sdn Bhd flag
Category: Testing Instruments Available
For more information, visit our official website at mtmpre.com.my
Visit Official Site Contact Us
Description

Brief introduction:
Carbon dioxide sensors are specifically designed to measure carbon dioxide gas in the air, primarily used in the automatic control of ventilation systems and environmental monitoring, playing a role in energy conservation, emission reduction, and air quality control. The NDIR infrared CO2 sensor used is imported from Europe, possessing superior long-term stability and excellent accuracy, ensuring the product has an ultra-long lifespan and minimal accuracy drift.
Details:
Carbon dioxide sensors are specifically designed to measure carbon dioxide gas in the air, primarily used in the automatic control of ventilation systems and environmental monitoring, playing a role in energy conservation, emission reduction, and air quality control. The NDIR infrared CO2 sensor used is imported from Europe, possessing superior long-term stability and excellent accuracy, ensuring the product has an ultra-long lifespan and minimal accuracy drift.
Suitable for use in various public environments such as buildings, shopping malls, conference rooms, offices, classrooms, restaurants, and train stations.

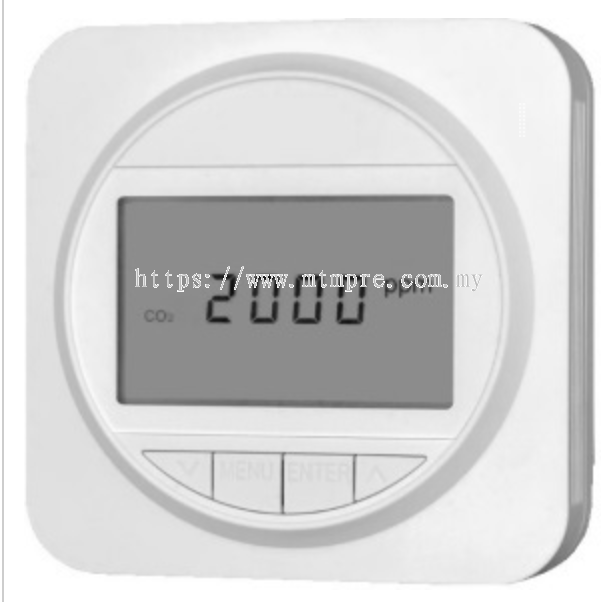

Carbon dioxide sensors can be configured with a clear, large-screen LCD display module to meet on-site display needs.
【Product Highlights】
High sensitivity and fast response
u Standard signal transmission output
Excellent long-term stability
Stable, reliable, and easy to install.


【Precautions】
1. Please connect the circuit according to the wiring instructions.
2. During use and transportation, keep the sensor away from high temperature, high humidity, and high concentration of chemical solvents, and ensure good ventilation during use.
3. Long-term exposure to high concentrations of chemical vapors or dust will cause the sensor readings to drift, and long-term exposure to corrosive gas environments will lead to sensor failure.


【Technical Specifications】
Measuring elements NDIR Infrared CO2 Sensor SENSEAIR
Response time (flowing air) 2 minutes by 90%
accuracy <±5%FS
Measurement range CO2: 0~2000ppm (customizable to user requirements)
Output signal 0-5VDC
Pressure error CO2: 1.6% of the measured value/kPa
Service life 5 years (non-corrosive environment)
Work environment Temperature: 0~50℃; Humidity: 0~85%RH (non-condensing)
Storage temperature Temperature: -20~60℃; Humidity: 20~80%RH
preheating time It is recommended to spend at least 15 minutes.
Power supply 24VDC
High power Less than 2.5W
Casing size 106×106×32mm
Installation method Wall-mounted/Ceiling-mounted
weight Approximately 200g
Shell material ABS
