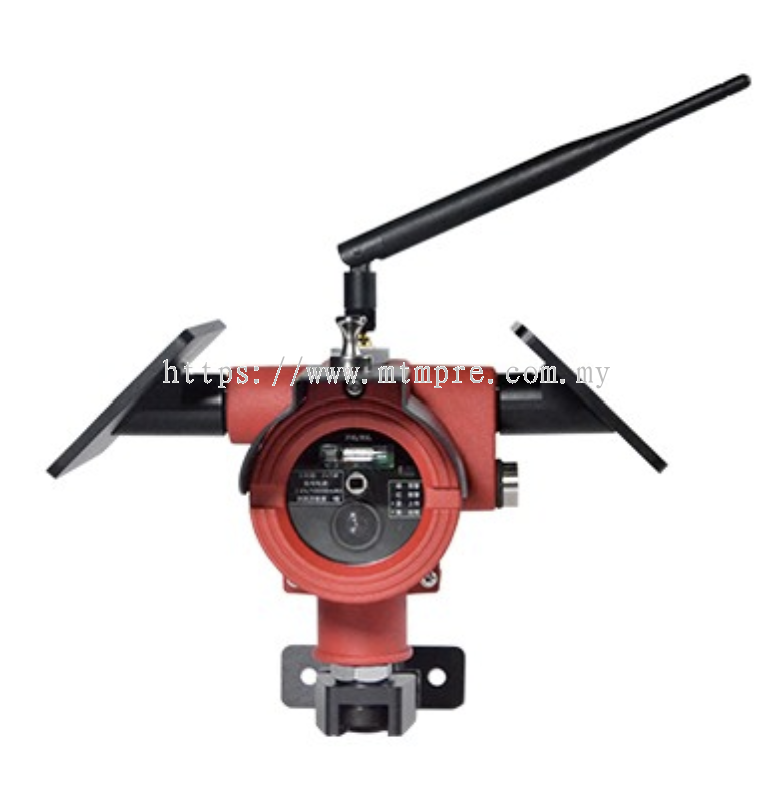

ZADETECTOR Solar energy Flame detector

ZADETECTOR Solar energy Flame detector

Category: Testing Instruments Available
For more information, visit our official website at mtmpre.com.my

Description

Detection principle red/UV light
Wavelength range infrared 4.4μm ultraviolet 185 ~ 260nmUV
Battery specification 3.6V/10000mAh
Solar energy 2X1W
Camera 30W pixels

The flame detector uses IoT infrared sensors and a smart cloud IoT management platform to address the traditional problems of "difficult detection, late detection, and difficult networking" in fire monitoring. It enables early detection, early warning, and early response to forest fires, thereby avoiding greater losses. The detector also has an anti-tampering feature that triggers an alarm if the detector is moved abnormally.

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.Henan Zhong An Electronic Detection Technology CO.,LTD.Henan Zhong An Electronic Detection Technology CO.,LTD.Henan Zhong An Electronic Detection Technology CO.,LTD.Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Detection principle red/UV light
Wavelength range infrared 4.4μm ultraviolet 185 ~ 260nmUV
Battery specification 3.6V/10000mAh
Solar energy 2X1W
Camera 30W pixels
Spirit acuity Level 1
Response time < 30s
Preheating time 60s
Flame detection delay 3S
Ambient temperature -10℃ ~ 55℃; The maximum surface temperature of the shell shall not exceed 80℃
Relative humidity < 93%RH
Explosion-proof mode flameproof type
Explosion-proof grade Ex dⅡC T6Gb
Protection grade IP67
Indicator green indicates early warning, red indicates alarm, blue data upload, yellow fault
Weight ≤1200g
Dimensions 235mm x170mm x125mm (without antenna)
Pressure limit 86KPa ~ 106KPa
Use place Use in dangerous places with explosive combustible gas IIA~IIC class and temperature group of T1~T6
