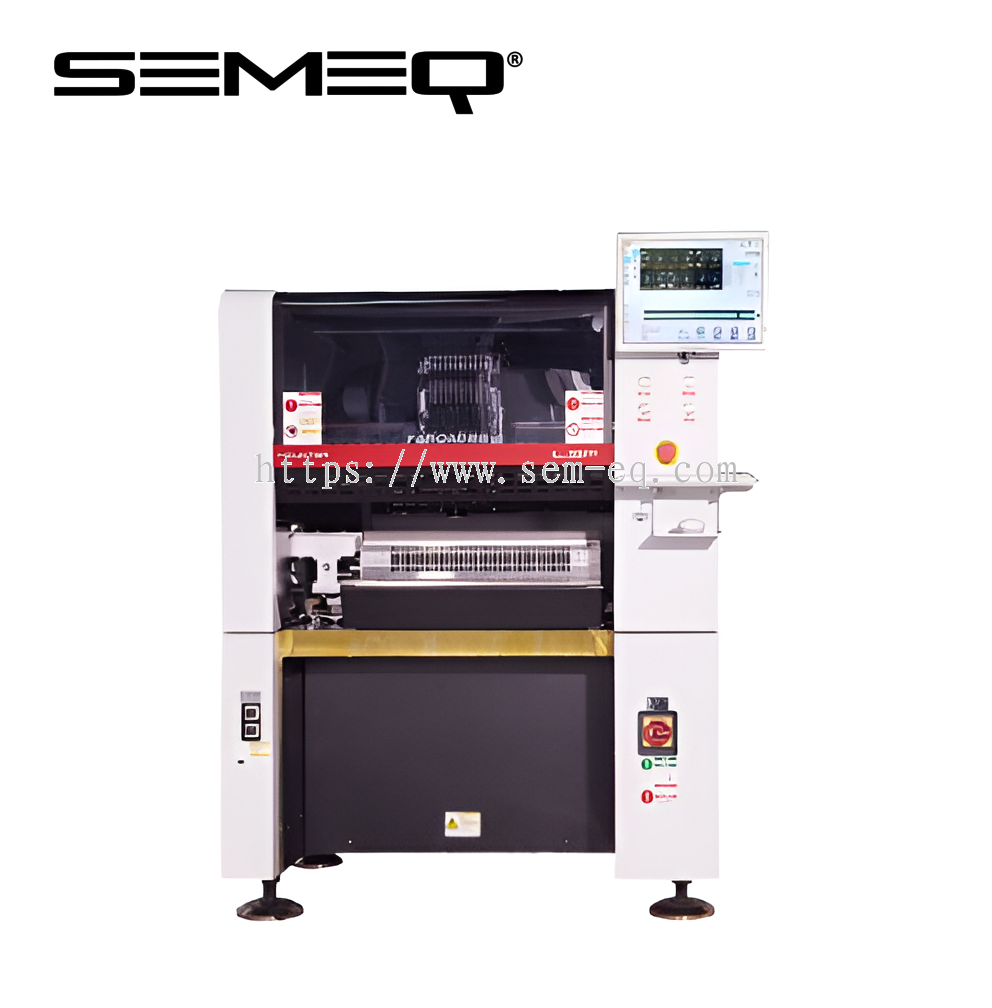

LED Multi-Functional Pick & Place Machine (CPM-L3F): Top Choice in Johor Bahru (JB), Malaysia SEM Equipment Sdn. Bhd.

Description

Model :

Features :

Advantages :

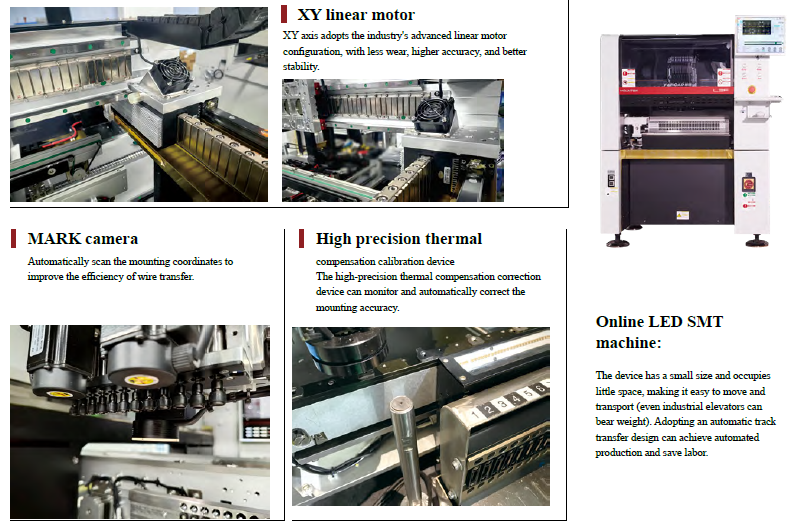

XY Drive with Dual Linear Motors
- The dual linear motor XY drive system delivers superior accuracy, enhanced stability, and reduced mechanical wear for reliable performance.
Integrated Molded Machine Base
- A robust one-piece base design provides improved mounting stability and consistent operation.

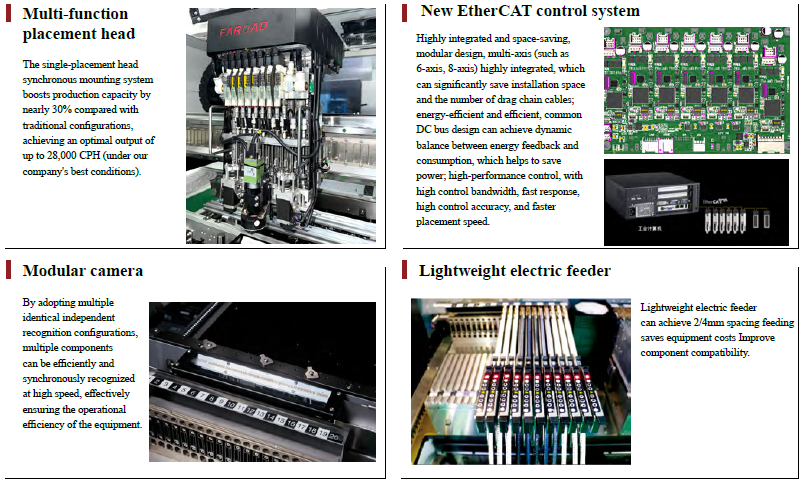

Area Array Module Camera
- Supports simultaneous recognition of multiple component types, improving placement speed and efficiency.
Automatic Calibration System
- Features a thermal compensation correction system to maintain precision and accuracy during operation.
Component Mounting Protection
- Equipped with a nozzle cushioning function that helps prevent component damage and ensures high product quality.

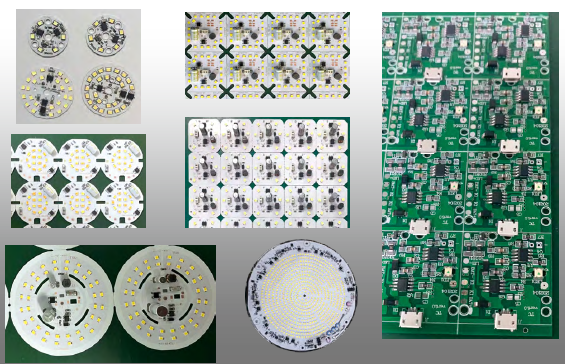

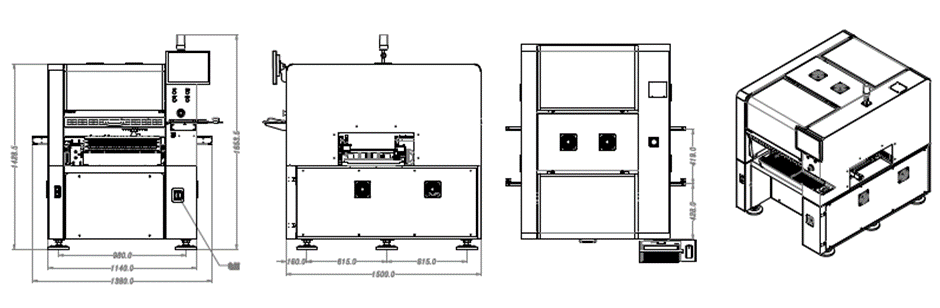

Dimension :

Specifications :

Model	Category	CPM-L3F
Name	Equipment Name	DOB Specialized Pick& Place Machine
Head	Mounting head model	0821BL
	Nozzle spacing	21mm
	Number of nozzles	Multi functional mounting head (8 heads)
Equipment size	Length x width x height	2175 × 1500 × 1450mm
Main components	Base	High strength cast iron integrated molding
Main components	X-arm beam	High-strength aluminum stretch forming
Controller	X-axis	Flat linear motor + gratingruler
	Y-axis	Dual motor linear motor +grating ruler
	Z-axis	Closed loop stepping
	R-axis	Closed loop stepping
Mounting ability	Optimal placement speed(IPC-9850)	28000CPH
	Chip placement accuгасу (СРК)	0,10mm(XYZ),CPK ≥ 1.0
	Component size	Minimum size: 0201, maximum size: L20 × W20
	Component thickness	24mm
Weight	weight	About 1600KG
Electrical specifications	Gas source	0.5MPa, 150L/min
Electrical specifications	Power supply/Power	AC380/420/480V,2.5KW
PCB conveyor system	Transfer board track	Fixed three-stage track (with board waiting function)
	PCB size	Minimum 50 × 50mm, Maximum 600 × 400mm (Single segment mounting), Maximum 1200 × 400mm (Two segment mounting)
	PCB Thickness	0.4-9.5mm
	PCB fixing method	Pneumatic lifting platform, upper andlower clamps
Feeding	Quantity of feeders carried	20 Slots (8mm)
MES system integration	MES acquisition	Support TCP/IP communication protocol
MES system integration	MES Upload	Support QR code / barcode recognition/binding upload MES
Optional accessories	Optional accessories	16 position nozzle exchanger, fixed rear tray, portable front tray, offline feeding cart, rear button panel
