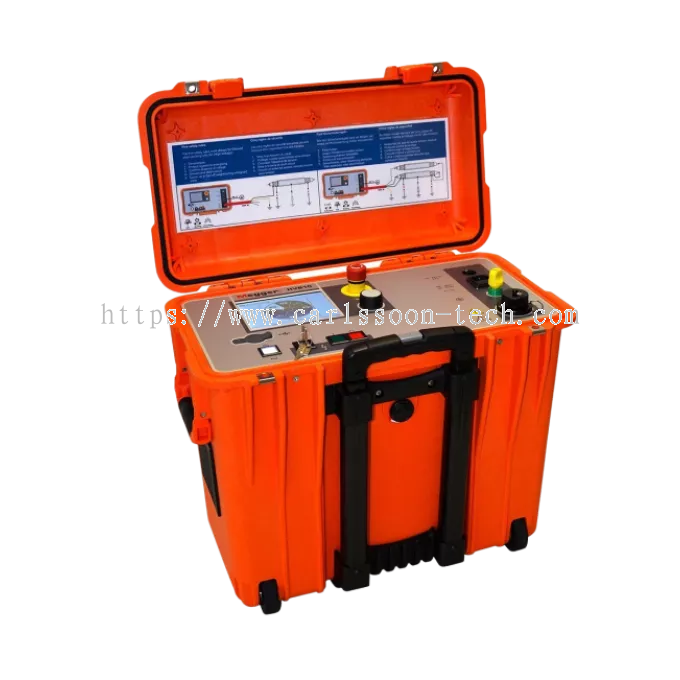

MEGGER - High Voltage Test Bridge System
Brand: Megger
Model: HVB10
Product Descriptions :
Megger’s HVB10 is a highly accurate high-voltage bridge designed to locate cable and sheath faults, perform sheath testing, and pinpoint sheath faults, especially suited also for long HV cables. With its top resolution, intermittent fault detetion function, and load adaptation for faster cable charging, the HVB10 is an indispensable tool for all utilities that want to reduce downtime and facilitate repair of power and for example pilot and communication cables.
The HVB10 has two different methods for fault location:
* the standard mode, which provides good results for typical sheath faults faults with fault resistances of up to some hundreds of kilo Ohms and shield cross sections in the range of 25 to 50 mm2 . This measurement is typically done in app 30 seconds.
* the high accuracy mode, which takes approximately 1 minute for the algorithm to complete, but will utilize the full potential of the measuring and control circuits of the instrument. Thus, it is ideally suited for prelocating difficult, high-resistive faults (e.g. in the inner insulation of PILC cables). An intermittent fault detection algorithm is applied to gain a result under even worse conditions with sparking faults.
Descriptions:
| Output Voltage | 0 – 10 kV DC, bi-polar |
| Output Current | 200mA @0.5 – 1.5 kV; 60 mA @ 5 kV; 30 mA @ 10 kV |
| Max. Test Object Capacity | 25 ?F |
| Test Voltage | 0 – -10 kV |
| Prelication Method | Voltage drop method (automatic) |
| Accuracy | ± 0,1 % |
| Pinpointing | 0 – -10 kV DC, pulsed |
| Voltge | 0.5:1 / 1:2 / 1.5:0.5 / 1.5:3.5 |
| Pulse Rate | 3 and 4.8 Hz for A-frame |
| Supply Voltage | 88 V – 264 V, 56/60 Hz |
| DC Supply (Charge Only) | 12/24 DC |
| Battery | Int. NiMH battery (340 Wh) |
| Battery Operating Time | Approx. 2 hours |
| Display | 320 x 240 pixel LCD, LED rear light |
| Interfaces | USB port |
| Operating Temperature | -25°C – 55°C / max. 93% rel. humidity |
| Storage Temperature | 40°C – 70°C |
| Dimensions | 500 x 457 x 305 mm |
| Weight | 25kg |
