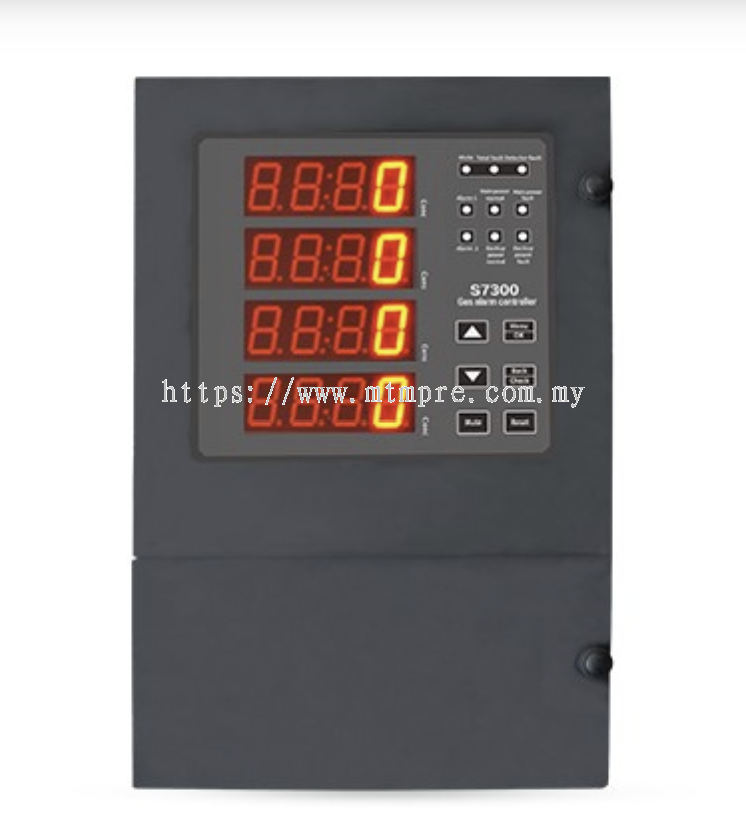

ZADETECTOR S7300 Gas alarm controller

ZADETECTOR S7300 Gas alarm controller

Category: Testing Instruments Available
For more information, visit our official website at mtmpre.com.my

Description

Working voltage AC220V
Size 300*205*80(mm)
Weight 4.5(kg) including battery
Other accessories standard mounting plate and diameter 8 anchor expansion bolt

The S7300 series gas alarm controller is a multi-point monitoring gas alarm developed by our company. This system adopts a microprocessor as the control unit and high-precision sensors as the detection transmitters, featuring high sensitivity and fast response speed. When the concentration of the gas to be detected in the environment reaches or exceeds the preset alarm value, the controller immediately emits audible and visual alarms to remind us to take safety measures in time and activates the execution control unit to control and drive the exhaust or other peripheral devices to prevent poisoning accidents, explosions and fires, thereby ensuring the safety of life and property.

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.Henan Zhong An Electronic Detection Technology CO.,LTD.Henan Zhong An Electronic Detection Technology CO.,LTD.Henan Zhong An Electronic Detection Technology CO.,LTD.Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Working voltage AC220V
Rated power 2W/ circuit
Working current 0.01A/ channel
Full load operating current (connected detector) 0.03A/ circuit
Backup specifications 24VDC, 1.3Ah(non-standard)
Display mode two digital tube display, sound and light alarm
Alarm section high, low limit alarm, fault alarm
Alarm mode sound alarm, LED light indication
Input signal Three-wire digital signal  RVVP 3*1.5mm square cable
Relay output: two passive switching quantities two passive switching quantities; A DC24V pulse control contact; One AC220V pulse control;
Relay output contact capacity 3A, AC220V
Relay output type switch/pulse output
Use environment indoor use
Working temperature -10℃~55℃
Working humidity ≤93%RH (non-condensing)
Working environment pressure 86~106Kpa
Installation mode wall hanging
Size 300*205*80(mm)
Weight 4.5(kg) including battery
Other accessories Standard mounting plate and diameter 8 anchor expansion bolt
