Description

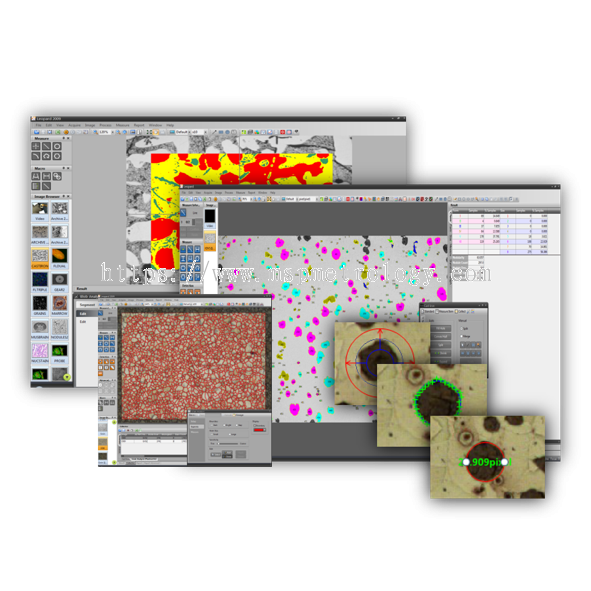

Zootos Image Analysis Software – Leopard iXMR Series

Analyze and measure images in real-time with a user-friendly interface, supporting various cameras, optical inspection devices, and high-resolution image analysis functions.

Features

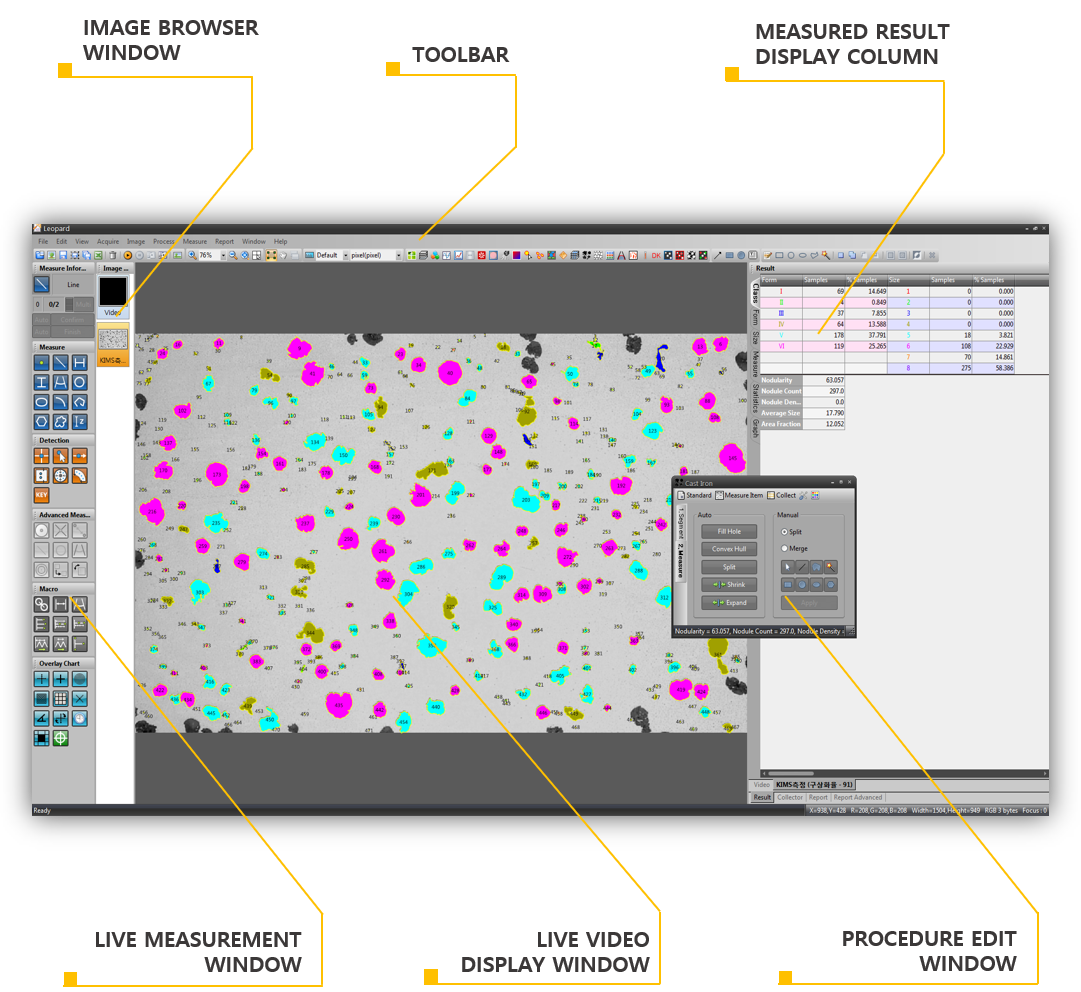

Real-Time Image Analysis

  • Analyze and measure the images in real-time.
  • Capable of various inspection devices using camera.
  • Supports various and quick functions to analyze high resolution images in real time.
  • User-friendly interface to perform the task easier and faster.
  • Supports various cameras and optical inspection device.

Measurement Tools

Live preview image on monitor to perform analysis without having to capture the image in-advance

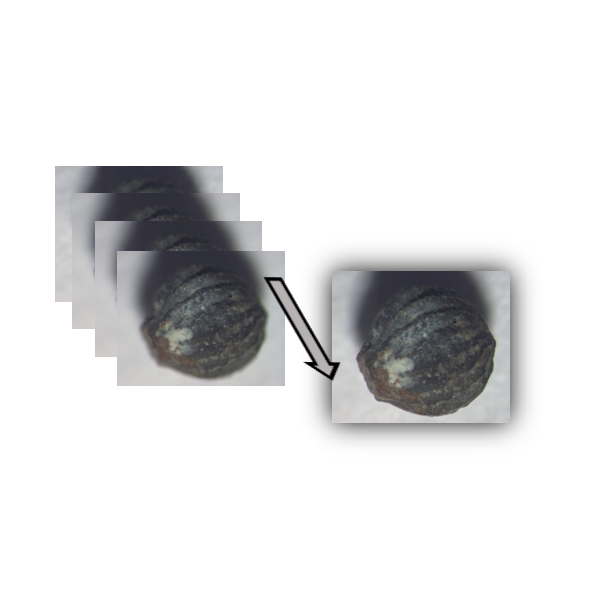

Multi Focus

Provides extended focus capability to overcome limited depth of focus in high magnification microscopes.

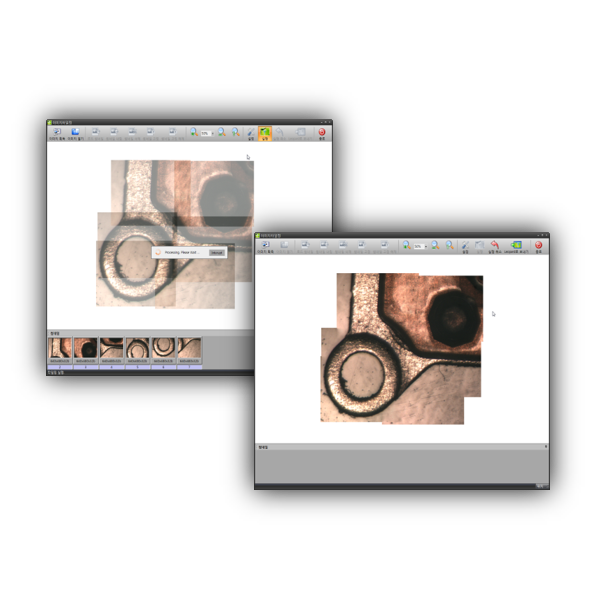

Manual Tiling

Large size (Field of View) specimen can be captured separately and combined to form one complete image.

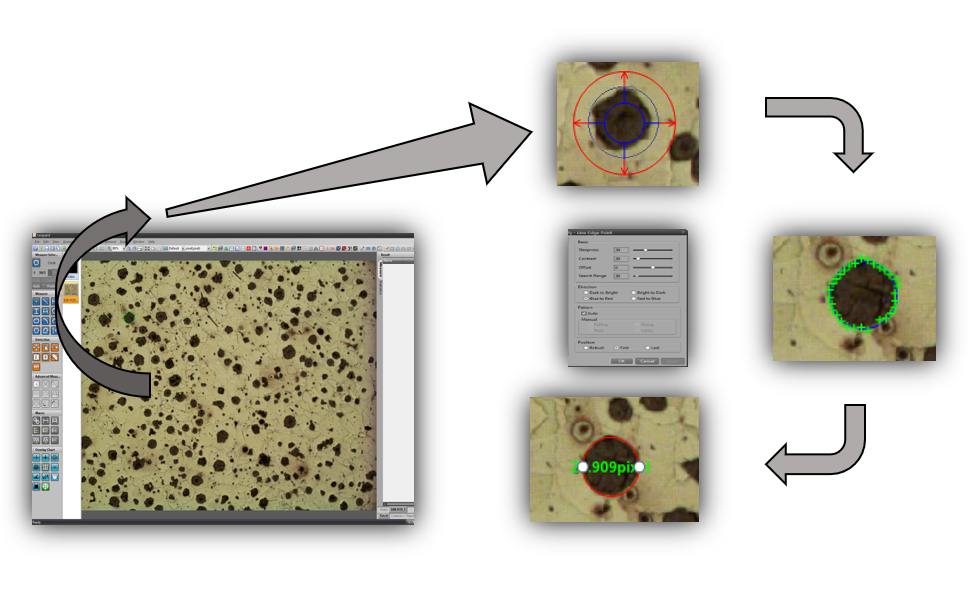

Auto Edge Detection

Automatically detected edges of various kind of shape of an object/sample to allow automatic measurement of the sample.

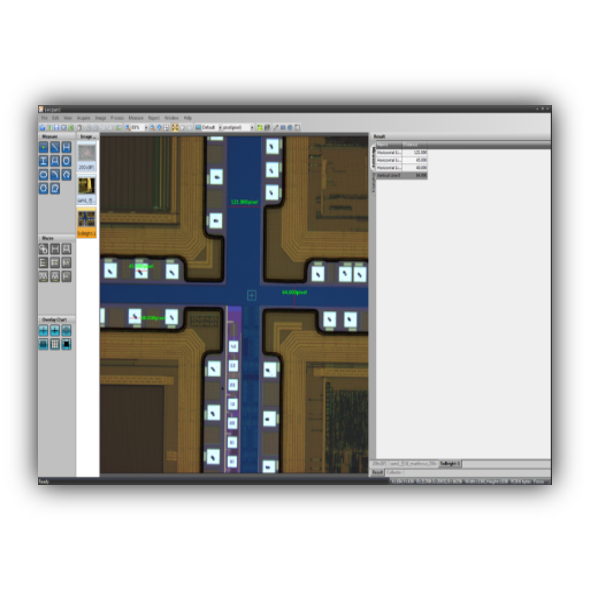

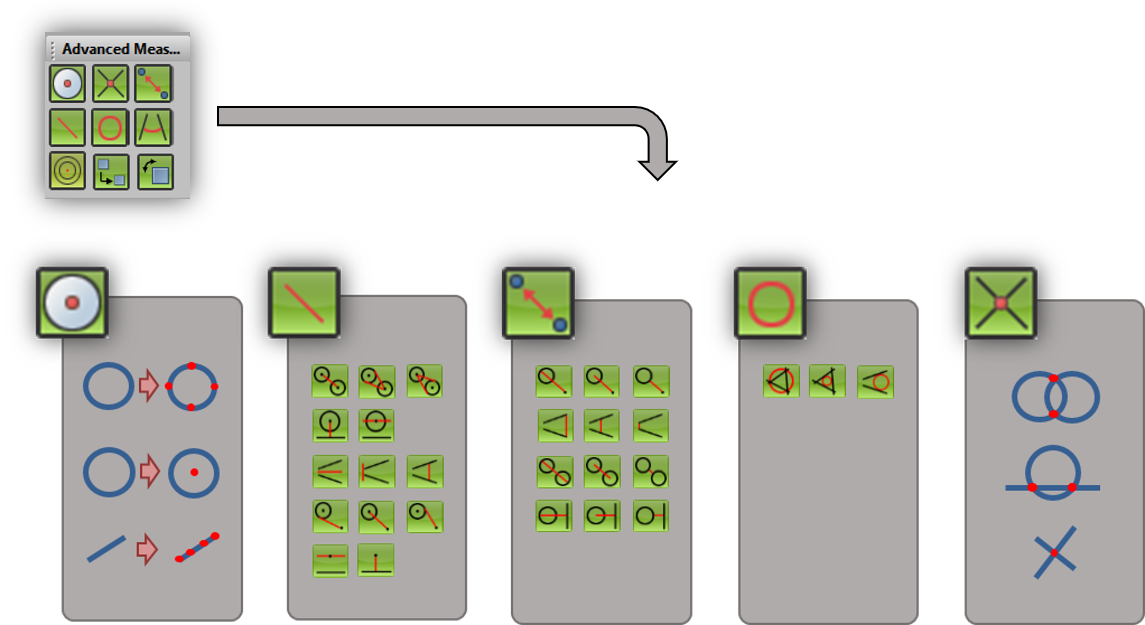

Advance Measurement Tool

Tool for additional measurement

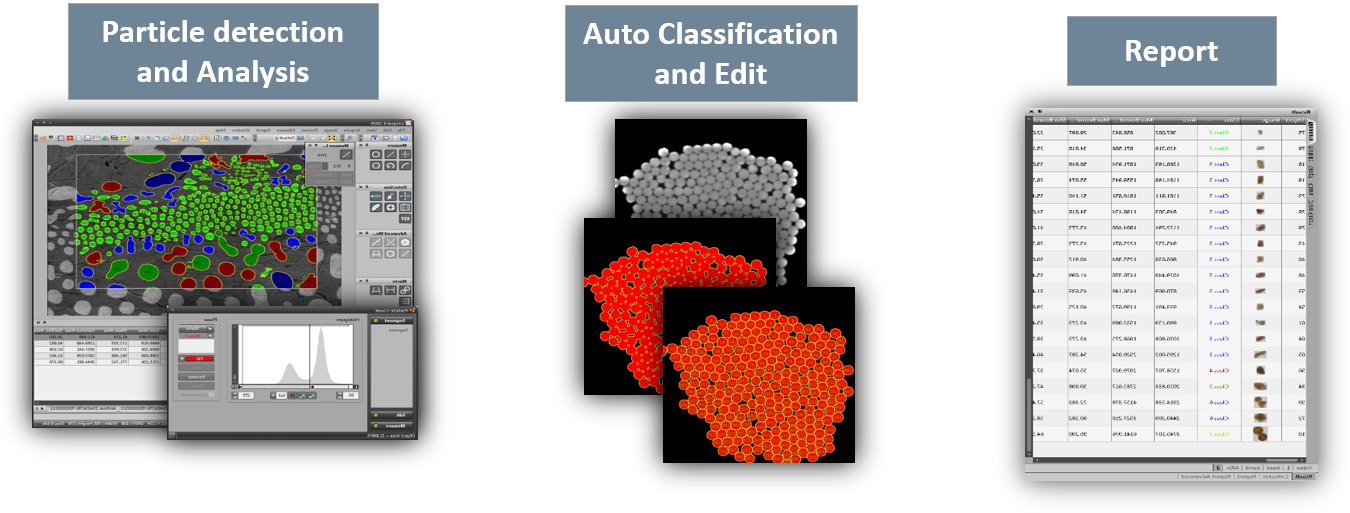

Particle Analysis

  • Support analysis tools automatically detecting and analyzing the objects in the image
  • Measure number, area and perimeter, etc of detected objects
  • Object detection in various color spaces such as RGB, CMYK, HSI, HSV, HLS, YUV, YIQ, YCbCr, LUV, Lab, etc.
  • Supports various AOI tools, specifies upper and lower limit values of the analysis
  • Automatic/manual classification function

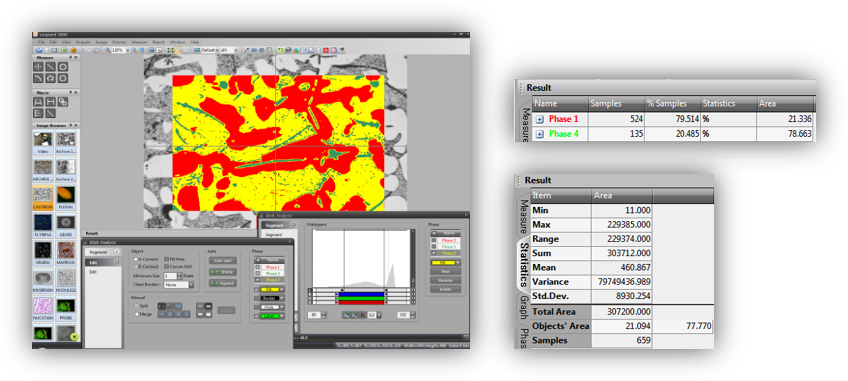

Phase Analysis

  • Segment various area and measure with various measure items
  • Support auto detection for the Phase in the image

Grain Analysis

  • Leopard analyzes metal grain under various International Standards.
  • Supported International Standard : ASTM (E112, E930, E1181, E1382) and Custom Standard

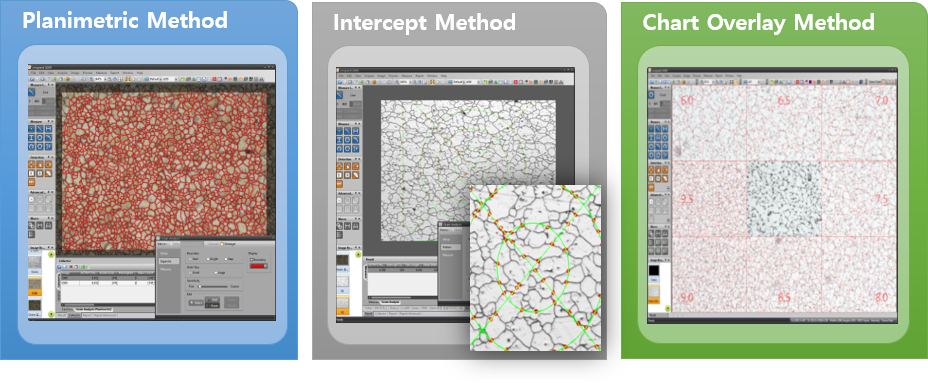

  • Leopard support three types of analyze method. Planimetric, Intercept, Chart Comparison

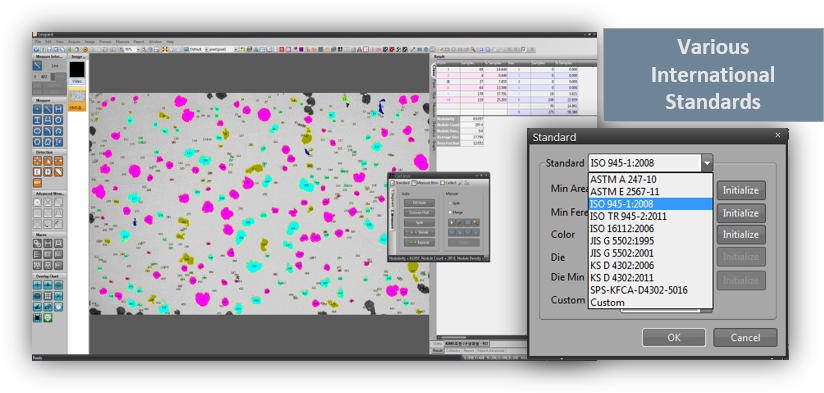

Cast Iron Analysis

  • Leopard analyzes metal cast iron under various International Standards.
  • Supported International Standard :

ASTM A 247-10, ASTM E 2567-11, ISO 945-1:2008, ISO TR 945-2:2011, ISO 1611:2006, JIS G 5502-2001, JIS G 5502:1995, KS D 4302:2006, KS D 4302:2011, SPS-KFCA-D4302-5016, and Custom Standard

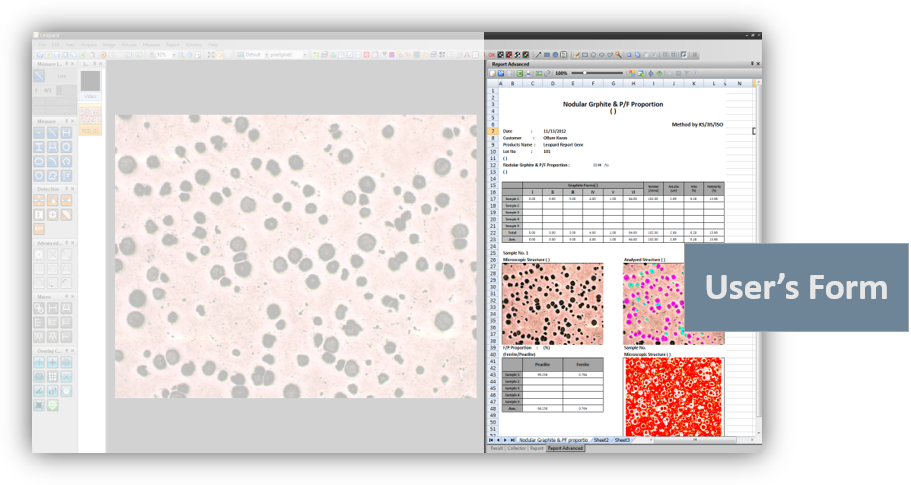

Report Manager

  • Support data output by customer’s document.
  • Customer could set a recipe for various function. (Measurement, Image, Analysis data, ETC.)

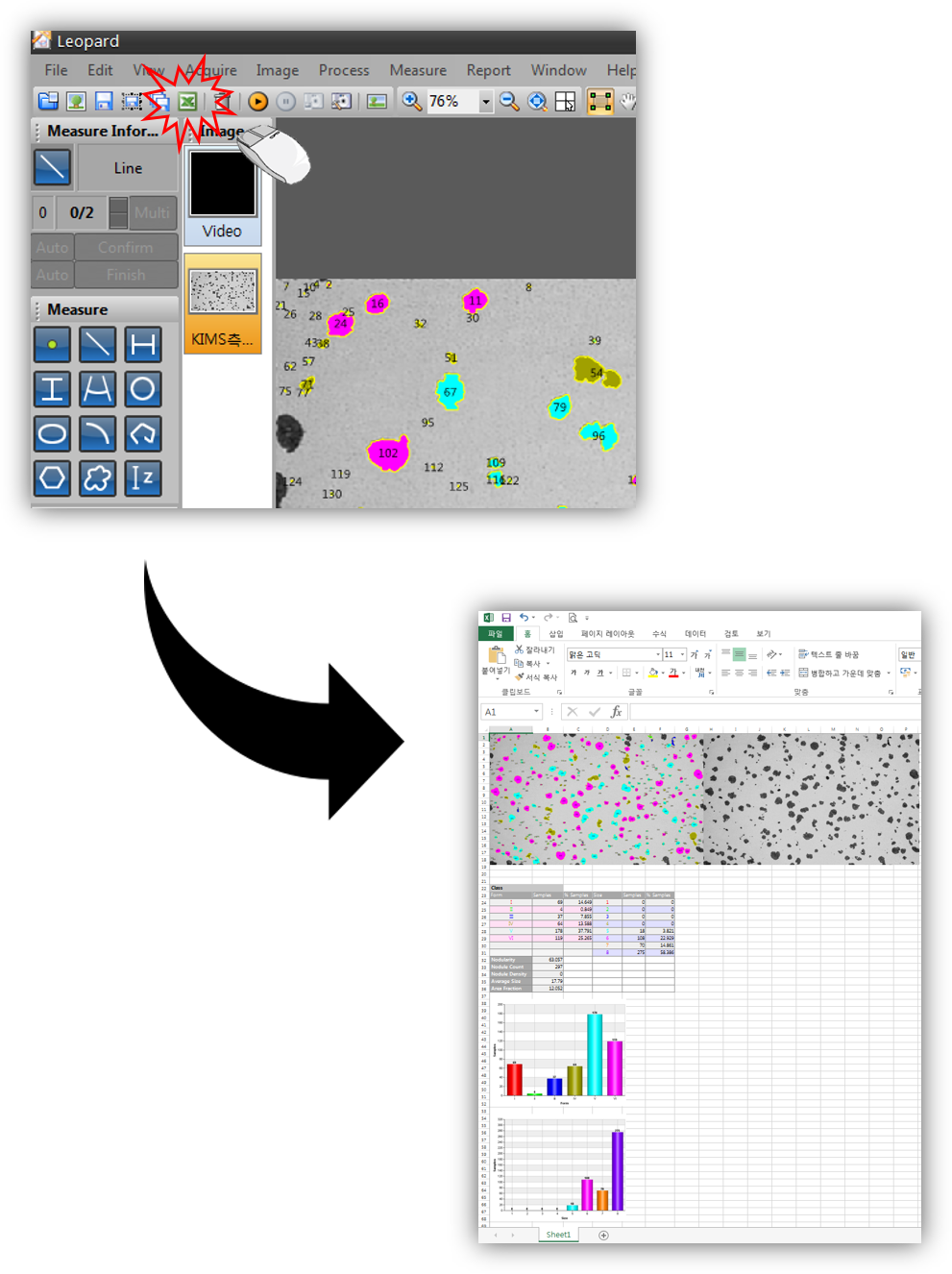

Excel Reporting System (Basic Program)

  • Export image and data to Microsoft Excel™ by one click.

Technical Data

Model iL iX iXM iXMR iXMA iXI iXIR iXIA
FUNCTION Capture Camera Control O O O O O O O O
TWAIN, WDM O O O O O O O O
Multi Capture   O O O O O O O
Time Lapse   O O O O O O O
Processing Basic Filter O O O O O O O O
Extended Filter   O O O O O O O
Image Synthesis Manual Tiling O O O O O O O O
Manual Multi-Focus O O O O O O O O
Extended Tiling   O O O O O O O
Extended Multi-Focus   O O O O O O O
AMS         O     O
Stage Not Included         O     O
Report Excel Reporting System O O O O O O O O
Report Manager       O O   O O

Contact us today to inquire about the Zootos Image Analysis Software – Leopard iXMR Series.
