Description

Display mode	8-inch color touch screen LCD operation
Display mode	Output mode: passive switch, RS485 (optional),RS485 (optional), Ethernet port (optional)
Alarm output	built-in 6 sets of programmable external control output,Contact capacity 2A/DC24V or 1A/AC220V
Installation method:	fixed installation on site, wall-mounted

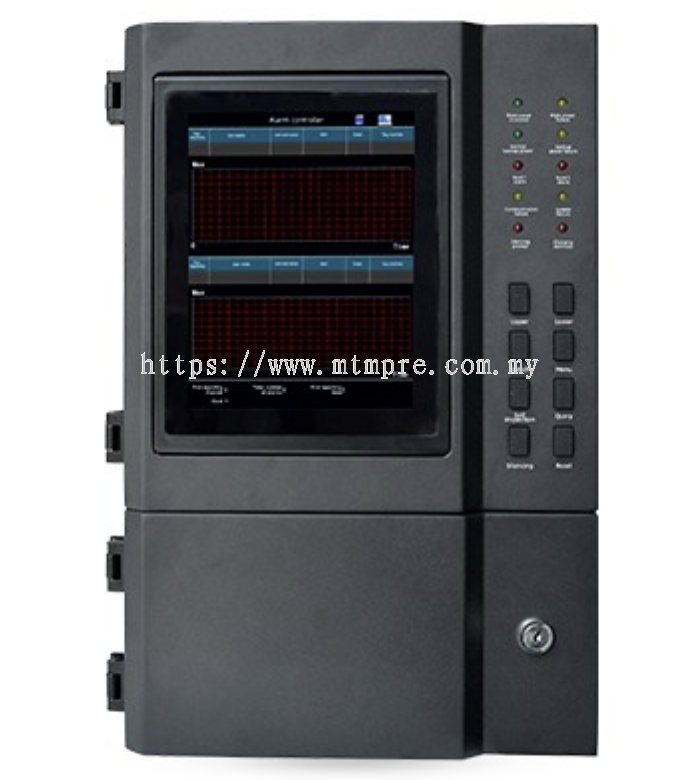

S8600 gas alarm controller is a multi-point monitoring gas alarm developed by our company for detecting the concentration of the gas to be measured in the environment. When the concentration of the gas to be measured in the environment reaches or exceeds the preset alarm value, the controller immediately sends out Sound and light alarm, and drive exhaust or other external control equipment to prevent poisoning accidents, explosions, and fires, thereby ensuring the safety of life and property.

Functions Features

Henan Zhong An Electronic Detection Technology CO.,LTD.

Technical Parameters

Display mode	8-inch color touch screen LCD operation
Display mode	Output mode: passive switch, RS485 (optional),RS485 (optional), Ethernet port (optional)
Alarm output	built-in 6 sets of programmable external control output,Contact capacity 2A/DC24V or 1A/AC220V
Installation method:	fixed installation on site, wall-mounted
Network capacity	S8600: 150 RS485 outputs
Alarm mode	sound and light alarm
Alarm point	two-level alarm, freely set by the user
Power supply voltage	AC220V±10% 50HZ
Signal input	digital RS485
Relay capacity	3A
Working temperature	-10 ℃-55 ℃
Working humidity	<95%RH
Storage temperature	(-10-50)℃
Pressure range:	(86-106)KPa
Cable requirements:	RVVP 4×1.5mm2
Transmission distance	≤1500m
Appearance size	(420×270×102)mm
Machine weight	8.5kg
Other accessories	standard installation hanging plate and Ф8 anchor expansion bolt
