Simple type motorized test stand has capacity of 1000N and is cost-effective with the limited functions, enabling constant speed and direction, and high repeatability of measurement. It can be used for various measurements such as tension and compression.
Achieves high repeatability with constant testing speed and position
Performs in 3 modes, including continuous cycle mode for repetitive testing
Handles a wide range of testing applications to meet your testing requirements with options such as -S (length scale) and -L (long stroke) *-L option only available for MX-500N and MX-1000N
Offers overload prevention and force control function when connected with force gauge*Activated when ZTS/ZTA series force gauge and CB-508 cable are used together
| Manual Mode | Single Cycle Mode | Continuous Cycle Mode |
|---|---|---|

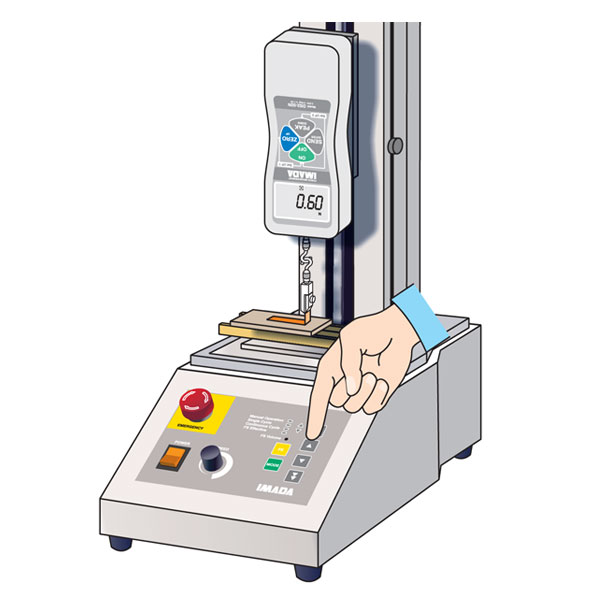

| The head moves when press and hold the button. | The head starts moving after press the button, and it returns automatically when it reaches travel limit | The head repeats travelling between its upper and lower travel limit. |

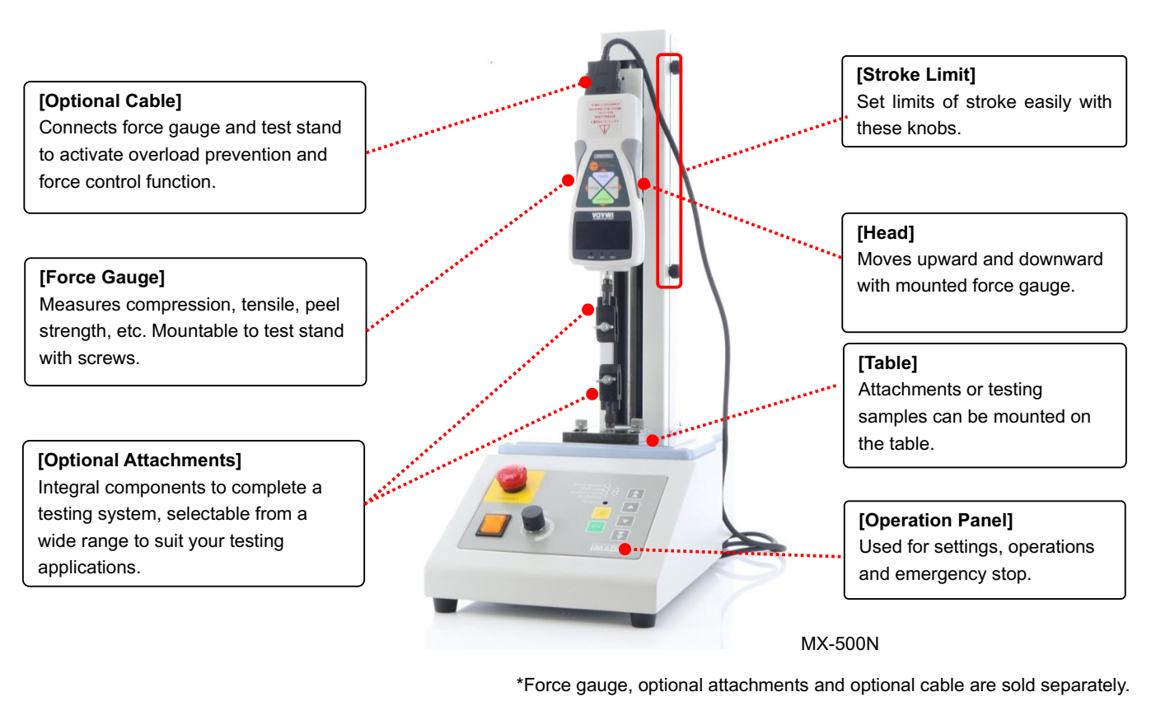

MX Series configurations are designed for simple type vertical motorized testing applications.
| Japan Model | MX-500N | MX-1000N |
|---|---|---|
| US Model | MX-110 | MX-275 |
| Capacity | 500N (50kgf) | 1000N (100kgf) |
| Max. Sample Height (*1) | Approx. 235mm | Appro. 420mm |
| Test speed | 10 to 300mm/min | 8 to 240mm/min |
| Stroke Limit | Controllable with upper and lower knob | |
| Measuring Mode | Manual mode, Single cycle mode, Continuous cycle mode | |
| Function | Emergency stop, force control (*2), overload prevention (*2, *3) | |
| Operating Temperature Humidity | 0 to +40 degree Celsius 35 to 70% (avoid condensation) |
|
| Voltage | AC100 to 240V, 50/60Hz (Select from 100, 120 and 230V. Accessories are provided accordingly.) |
|
| Power Consumption | 50W | |
| Weight | Approx. 13kg | Approx. 24kg |
| Accessory | GF-1 (Grip mounting adaptor) | Grip mounting adapter(GF-2) |
| Operation manual, power cable, spare fuse, tools | ||
| Available Options *4*5*6 |
-E: Speed and length meter -S: Length scale -L: Extended stroke by 200mm -V60: Speed 2 to 60mm/min -V600: Speed 20 to 600mm/min -V1200: Speed 40 to 1200mm/min |
-E: Speed and length meter -S: Length scale -L: Extended stroke by 250mm -V120: Speed 4 to 120mm/min -V400: Speed 15 to 400mm/min -V600: Speed 20 to 600mm/min -V800: Speed 27 to 800mm/min -V1200: Speed 40 to 1200mm/min |
| Mountable Force Gauge*7 | Mechanical Force Gauge: FB, PS, PSM seriesDigital Force Gauge: DST, DSV, ZTS, ZTA series (Up to 1000N) | |
| Mechanical Force Gauge: PSH series Digital Force Gauge: ZTS, ZTA series (Over 2500N) |
||
*1 Max. sample height refers to the distance between the table and the tip of force gauge measuring shaft when the head is at the top. (MX-500N/MX1000N: up to 1000N model of ZTS/ZTA series)
*2 ZTS/ZTA series force gauge and optional cable CB-508 are required.
*3 It does not guarantee complete protection against overloading.
*4 Add the option code after the model name to complete the model with options. e.g. When adding long stroke option to MX-500N, the model becomes MX-500N-L.
*5 The deflection amount becomes larger when the option (-L) is selected.
*6 Capacity is reduced as below by some speed change options.
| Model | MX-500N | MX-1000N |
|---|---|---|
| -V400 | 500N | |
| -V600 | 250N | 500N |
| -V800 | 300N | |
| -V1200 | 100N | 200N |
*7 Ensure to use within the capacity of force gauge and test stand regardless of the mountable models.
