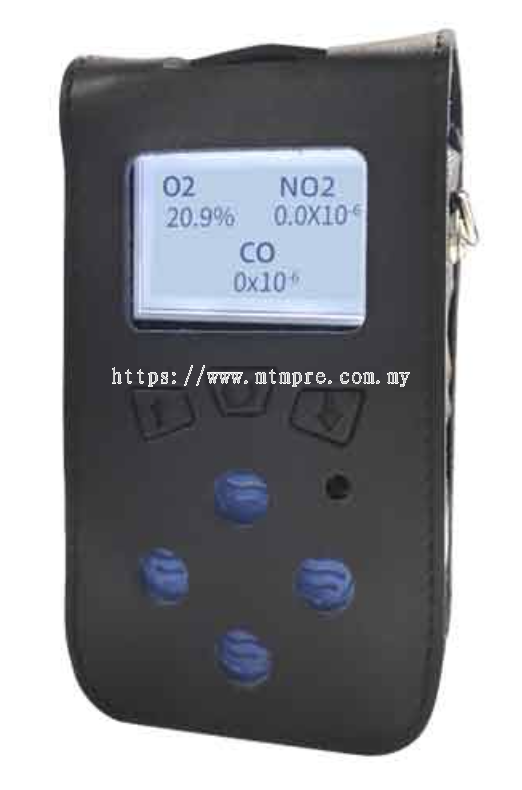

ZADETECTOR CD3 mining multi-gas detector

ZADETECTOR CD3 mining multi-gas detector

Category: Testing Instruments Available
For more information, visit our official website at mtmpre.com.my

Description

Gas Detected O2,CO and NO2
Detection Principle Natural Diffusion
Accuracy 3%FS
USB U3 port(USB)
Storage Capacity Max 6000pcs
The CD3 multi-parameter gas detector adopts dot matrix display technology and operates with a full Chinese interface. It can simultaneously detect gases such as oxygen, carbon monoxide and nitrogen dioxide. The test results are displayed on the screen at the same time, and the user can start manual operation at any time. The standard USB interface can be used for charging and data transfer and for querying alarm results.
The CD3 multi-parameter gas detector can be used for coal mining safety monitoring, concentration leaks in chemical workshops, gas leaks in pharmaceutical workshops, safety detection in operation in power and municipal pipelines, and safety detection of harmful gases in smelting iron and steelmaking plants.

Functions Features

  • Simple user interface, large screen English interface operation
  • Charging quantity display, Low power warning
  • Simple calibration results are stored
  • Connect to the computer to review the data by USB cable
  • Simple operation, ergonomic design
  • Sound and light and vibration alarm
  • Intelligent sensor calibration
  • Password protection, Anti-static leather case and hanging rope
  • Strong product structure and which is made from flame-retarded ABS.
  • Standard equipped with anti-static leather case and hanging rope
  • Various colors to choose to meet your different use requirements.

Technical Parameters

Detection Principle

Natural Diffusion
Accuracy 3%FS
Charging method U3 port(USB)
Storage Capacity Max 6000pcs
Operational Environment Temperature: (-20 ~ 55 ℃)
Alarm decibel >90 db
Alarm mode Three alarm methods of sound, light and vibration.
Battery 3.7V 2000mA Rechargeable lithium manganese oxide ion battery
Charging time ≤6 hours
Whole part weight About 230g(with charger)
Ingress Protection IP65
Ex-mark EX ib I Mb
Explosion-proof number SHExC19.0208

Detected gases O2 CO NO2
Detection principle Electrochemical Electrochemical Electrochemical
Key components 4OXV 4CO-1000 4NO2-20
Measurement range 0.0-25.0% (0-1000)x1 O'6 (0-20)x106
Resolution 0.1 1 0.1
First-level alarm point 18.0% 24x10® 5x10*
Second-level alarm point. 23.5% 150x10s 10x10*
Response time <35s ≤45s ≤60s
