Description

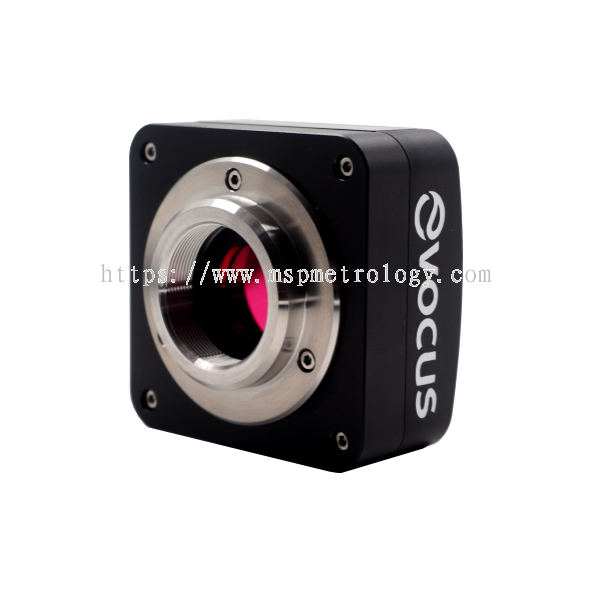

Evocus USB 2.0 3MP Industrial Digital Camera

Standard C-Mount camera with Sony Exmor CMOS sensor and hardware resolution of 3.0M. USB2.0 interface ensures high speed data transmission with Ultra-Fine color engine and advanced video & image processing application Zootos iX.

Features

Evocus USB 2.0 3MP Industrial Digital Camera

Standard C-Mount camera with Sony Exmor CMOS sensor;
With hardware resolution of 3.0M;
CNC aluminum alloy housing;
USB2.0 interface ensuring high speed data transmission;
Ultra-Fine color engine with perfect color reproduction capability;
With advanced video & image processing application Zootos iX;
- Basic/Advance Live Measurement Tools
- Auto-Edge Detection
- Excel Reporting System
- Data Export as TXT or Excel
- Report Generation and Printing

Ultra-High Performance

Evocus U3O digital camera is a CMOS sensor camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.

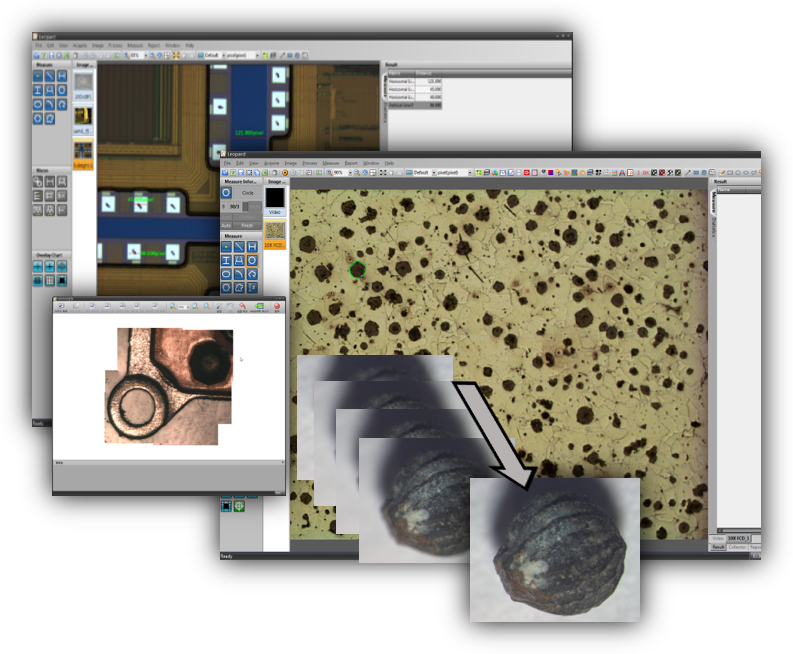

Powerful Image Analysis Software

Zootos Leopard iX – Versatile and high precision Software for Image Analysis System for Analyzing Image and Advance Measurement with user friendly interface for easier task performed.

Full Specifications

Model	Sensor & Size(mm)	G Sensitivity Dark Signal	Pixel (µm)	FPS/Resolution	Binning	Exposure
EVS-U30.001	3.1M/IMX123(C) 1/2.8″(5.12×3.84)	600mv/with 1/30s 0.15mv with 1/30s	2.5 x 2.5	10.5@20480×1536 15@1920×1080	1×1	0.105ms~15

Other Hardware Configurations
Spectral Range	380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used
White Balance	ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique	Ultra Fine Color Engine
Capture/Control SDK	Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
Recording System	Still Picture and Movie
Cooling System*	Natural

Software Environment (for USB2.0 Connection)
Operating System	Windows 7, 8 or 10 (with DirectX 11)
PC Requirements	CPU: Intel® Core™ i5 or i7 @2.4GHz, (5th generation or above)
	Memory: 8GB or More
	Hard Disk: 1GB required (SSD type recommended)
	Integrated Graphic: Intel® HD Graphics 4000
	Dedicated Graphic Card: nVidia GeForce GT 740M with 2GB RAM
	USB port: USB2.0 High-speed Port
	Display: 1920×1080 (recommended) FULL
	CD Rom

Operating Environment
Operating Temperature	-10 °C~ 50 °C
Storage Temperature	-20 °C~ 60 °C
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port

Contact us today to inquire about the Evocus USB 2.0 3MP Industrial Digital Camera and enhance your industrial digital camera capabilities.

More detail about MSP Metrology (M) Sdn Bhd

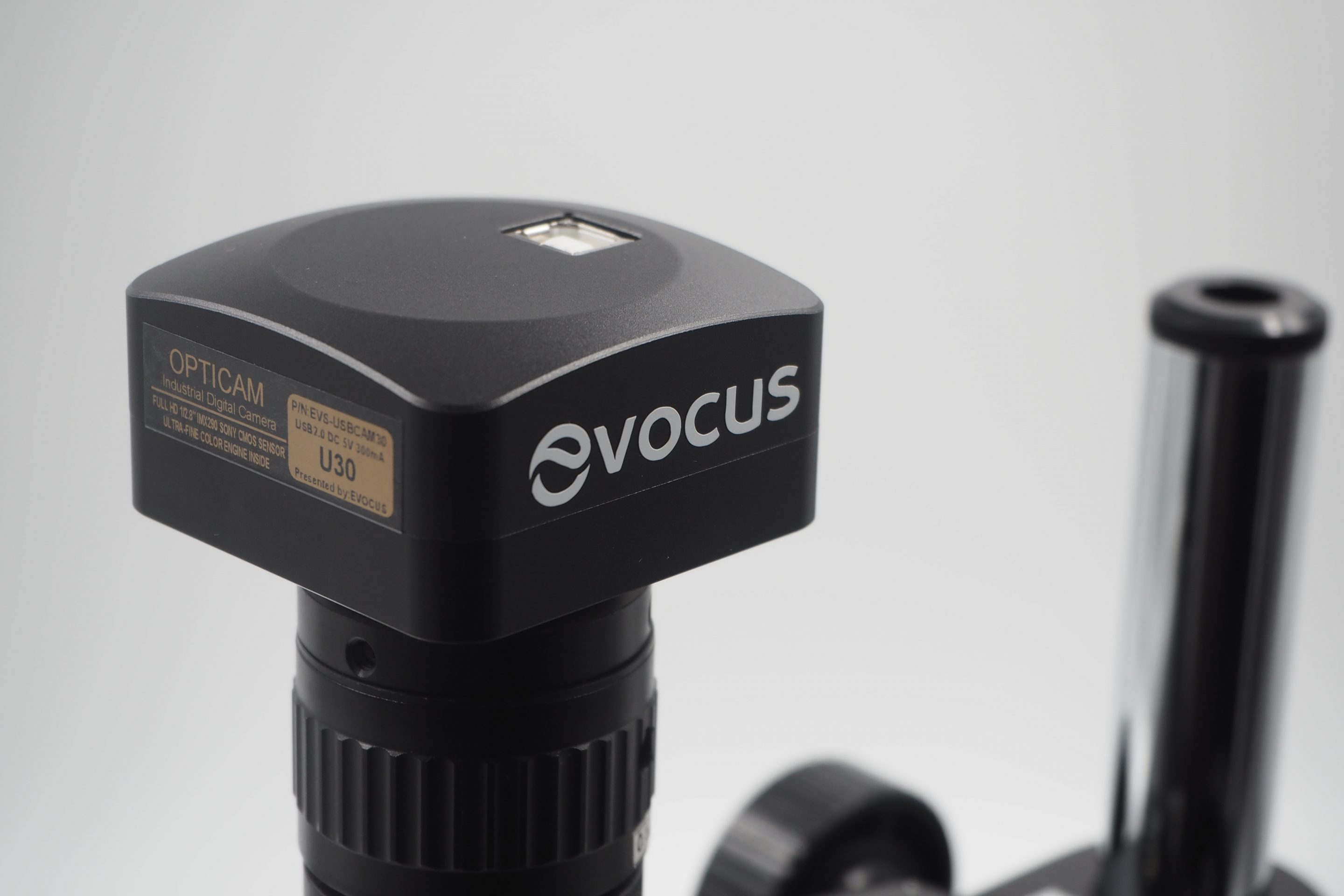

Evocus Opticam Full HD USB Camera U30 Series
