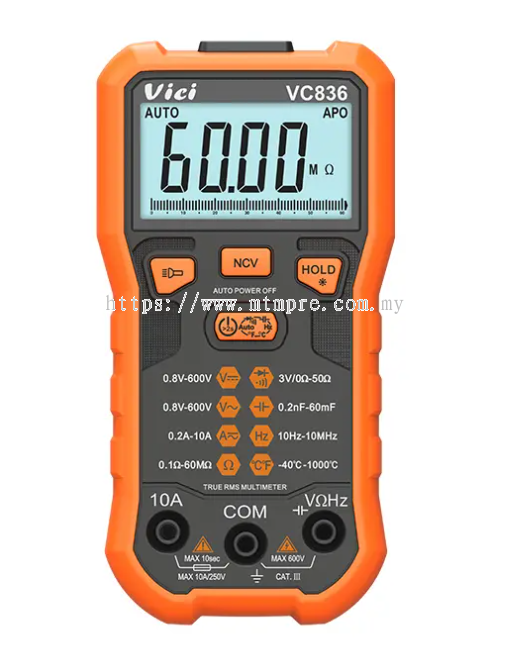

VC836 multimeter, automatically tests DC voltage, AC voltage, AC current, AC current, Resistance, Capacitance, Frequency, Non-contact voltage (NCV) detecting, Duty-cycle, Temperature, Diode and Continuity; Designed with unit symbol, torch lighting, data hold, analog bar display, backlight display, auto ranging switch, auto power and alarm functions.
6000 digits display
Technical Data:
|
Basic function |
Range |
Basic Accuracy |
|
DCV |
6V/60V |
±(0.5%+4) |
|
600V |
±(1.0%+4) |
|
|
ACV |
6V/ 60V |
±(0.8%+6) |
|
600V |
±(1.0%+6) |
|
|
DCA |
10A |
±(2.0%+5) |
|
ACA |
10A |
±(2.0%+10) |
|
Resistance |
600Ω |
±(0.8%+5) |
|
6kΩ/ 60kΩ/ 600kΩ/ 6MΩ |
±(0.8%+1) |
|
|
60MΩ |
±(1.2%+5) |
|
|
Capacitance |
60nF |
±(2.5%+6) |
|
600nF/ 6uF/ 60uF |
±(2.5%+5) |
|
|
600uF/ 6mF/ 60mF |
±(5.0%+8) |
|
|
Frequency |
10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz/10MHz |
±(0.5%+4) |
|
Temperature |
-40℃～1000℃ |
＜400℃ ±(1.0%+5) |
|
≥400℃ ±(1.5%+15) |
||
|
-40! ～ 1832!
|
＜750! ±(1.0%+5) |
|
|
≥750! ±(1.5%+15) |
Specific Function:
|
Model |
VC836 |
|
True RMS |
√ |
|
NCV |
√ |
|
Analog bar display |
√ |
|
Data hold |
√ |
|
Function protection |
√ |
|
Torch function |
√ |
|
Backlight display |
√ |
|
Diode test |
√ |
|
Continuity alarm |
Less than 50MΩ |
|
Low battery indicator |
Approx. less than 2.4V |
|
Protect/Shockproof protect function |
√ |
|
Input impedance |
10MΩ |
|
Sampling rate |
3 times/s |
|
AC frequency response |
40Hz-2kHz |
|
Operation method |
Manual or Auto range |
|
Max. display |
6000 |
|
LCD size |
61x28mm |
|
Battery |
3V (1.5V AAA x 2) |
|
Power consumption |
Quiescent current about 2mA |
