Specifications
- Asterion DC ASM Series: Applications
The Asterion DC ASM Series is designed for testing today’s complex electronics, including telecommunications and commercial electronics requiring low-profile, lightweight DC Power supplies with high power density. Other applications include:
Military and aerospace electronics test
Test & Measurement of ATE applications
Semiconductor testing and burn-in
Commercial manufacturing and process control
Research and development
Automotive component and battery testing
Description
Model: Asterion DC ASM Series
Voltage: 40V to 600V
Power: 3-Channels x 1700W (5100W Total Power)
Overview: Enhanced 3-Channel Programmable DC Power Supplies
|
The Sorensen™ Asterion® DC ASM Series is the newest addition to the Asterion platform of DC power testing solutions.
The new ASM Series features up to 3 independently controlled and isolated DC outputs in a 1U high chassis.
The Asterion DC ASM Series, just like the Asterion DC Series, offers complete remote programming and control via Virtual Panels™ GUI, and intuitive front panel touchscreen operation. Additionally, the instrument can be controlled via standard LXI Ethernet, USB, and RS232 control interfaces, as well as through the optional GPIB control interface or isolated analog programming.
View the Asterion DC ASM Infographic here.
Key Highlights:
- Three independent, isolated 1700W DC outputs, 5100W total
- 1U rack-mount chassis
- 9 output options
- Multi-language, intuitive, color touch panel control
- Global 3-Phase AC Input options for system phase balancing
- Active power factor correction (PFC)
- Multi-channel programmable sequencing, ramps, and delays
- Full remote control via Virtual Panels™ GUI
- Standard LXI Ethernet, USB, and RS232 control interfaces
- Optional GPIB control interface or isolated analog programming
Check out the ''Explore Related Resources'' section to discover our Asterion DC ASM Series collection — including Whitepapers, Application Notes, Guides, and Blogs designed to deepen your understanding and accelerate your journey.
Advanced Intelligent Control

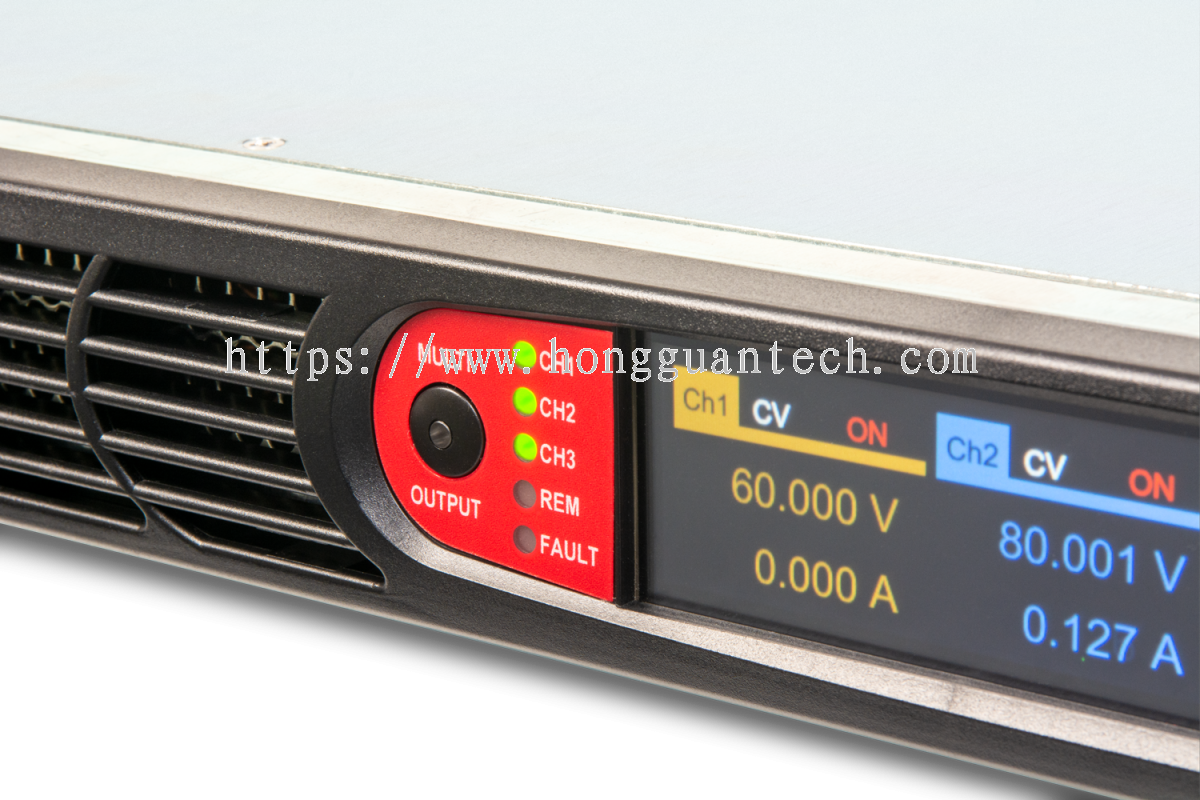

The Asterion DC Series DC Power Supply is operated from the intuitive, easy-to-use front panel touchscreen display. Quickly access output programming parameters, measurements, configuration, and system settings from the touchscreen interface. Functions and parameters can be directly selected from the touch screen or by using the encoder selector button.
The control resolution is adjusted by a dynamic rate change algorithm that combines the benefits of precise control over small parameter changes with quick sweeps through the entire range.
