Description

MAG FPG257
LiNE FLAP BARRIER

– Brushless motor drive
– Lane clearance: 550mm
– Fastest 0.65s opening speed
– MTBF > 5 mil cycle
– Control board with LCD screen

FPG257 LiNE flap barrier is a type of pedestrian gate typically installed at the
entrance of the building with an access control reader to restrict unauthorized access
while maintaining a welcoming atmosphere. FPG257 requires
the least maintenance among the pedestrian gates.

LiNE FPG257 is designed to achieve the right balance of cost-effectiveness and consistent quality.
With its streamlined design, LiNE FPG257 simply add value to any building entrance
by tightening pedestrian security without looking out of place.

Optimized for best value
We optimized to only include the most essential feature while maintaining durability for LiNE.
This made LiNE FPG257 a minimalist flap barrier with durability,
all without the expensive price of European brand.

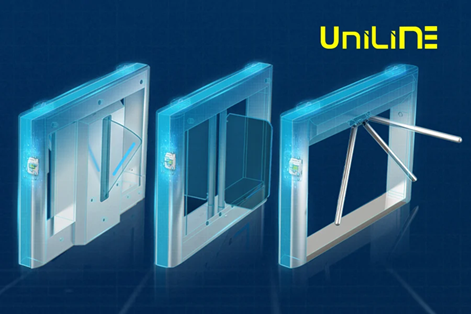

UniLiNE concept standardized the design of all types of gate and leverage bigger economy
of scale to make LiNE series more affordable.

Features	Swing Barrier FPG257
Consecutive Access Memory	✓
Bi-directional Access	✓
Time-out Auto-close	✓
LED Indicator	✓
Safety Sensor Auto-reverse	✓
Buzzer Alarm	✓
Emergency Auto-open	✓

Efficient

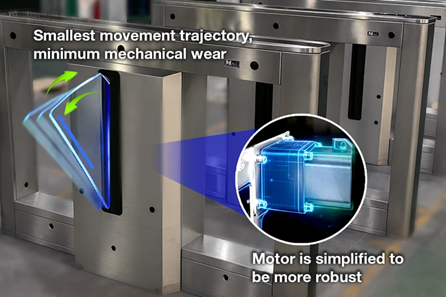

FPG257 uses a DC Brushless motor which requires virtually ZERO maintenance.
The movement trajacteory is designed to be smallest to ensure efficient pass-thru,
while minimizing the mechanical wear, thereby lowering the long-term cost of ownership.

Safety and security when it matters
The flap panels will auto reverse to avoid pinching user.

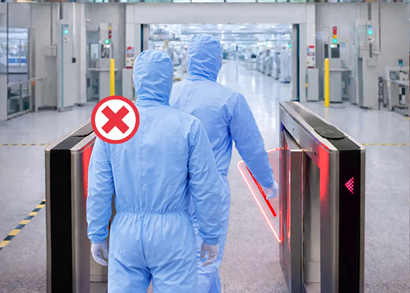

Flap panels will turn red with an alarm buzzer to alert unauthorized user,
tailgating or incorrect access direction attempt so that the security guard can react immediately on the spot.

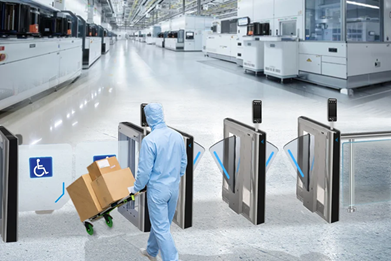

Wider access for special needs

To provide secured and comfortable access alongside your flap barrier,
you no longer need to mix and match different product at the same entrance.
Our swing barrier, with the same UniLINE housing can provide 900mm wide passage
width and fit in seamlessly next to multiple lane of LINE flap barrier.

Easier to accommodate project schedule
Unforeseen delay is common in most projects. You are worried about the extra
storage/penalty cost if the gate arrives too early or too late.
Let us know your project date forecast so that we can plan the production to meet your dateline.

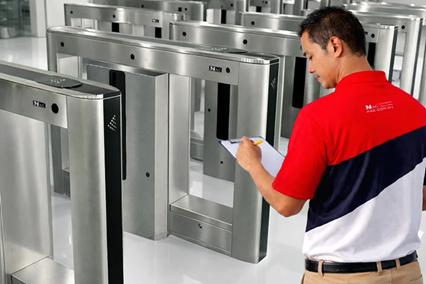

All gate is 100% QC tested as per our ISO9001 procedure just before your collection.

Specification:

Description	Parameters
Body Material	Stainless Steel SUS304
Passage Width	550mm
Door Opening / Closing speed	Programmable, >0.6s.
Optimal Flow Rate	Up to 35 person per minute
Power Supply	AC220/110V±10%, 50/60Hz
Power Consumption	<150W (Operational)
Motor	DC Brushless Motor, 24V
Input Connection	Dry contact pulse
Working Environment	Indoor and sheltered outdoor
Working Temperature	-20°C - 70°C
Relative Humidity	≤ 90%, non-condensing
Door Material	Acrylic
IP Rating	IP 4X
MTBF	>5 million cycles
