Description

MAG SPG431
NEO SWING BARRIER

SPG431 NEO swing barrier is a type of pedestrian gate typically installed at the

entrance of the building with an access control reader to restrict unauthorized access
while maintaining an elegant atmosphere. Users with luggage or wheelchair can pass through easily.
The NEO is the most elegant among all our pedestrian gate.

NEO SPG431 immediately impress all visitors and make the tenant feel proud.
All this is achievable without the expensive cost of a european
brand. NEO SPG431 stunning outlook can enhance any interior design to the
next level of elegance thus increasing the preceived sales or rental value of any building.

Premium and Fitting Design
We streamline NEO’s design to achieve an elegant and premium anodized aluminum finish,

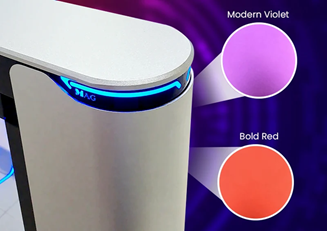

all without the expensive price tag. Bold Red and Modern Violet variant
are also available to match your interior design.

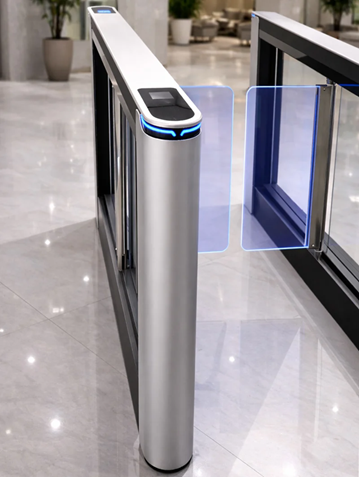

Slimmer is definitely better
The slim form factor saves space thus allowing more gates to be installed.
We design the NEO swing barrier to have rounded ends so it immediately look elegant
and blend well into any building. SPG431 can add a refreshing touch to the otherwise
dull atmosphere or accomplish an already amazing building interior.

Swift and Strong

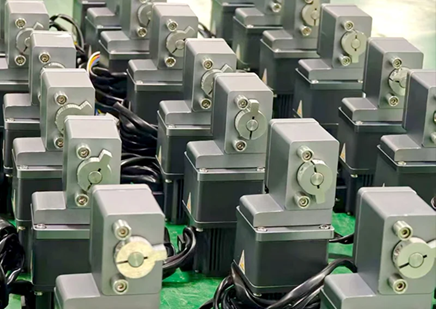

SPG431 uses a durable DC servo brushless motor to achieve almost
ZERO maintenance while efficiently handle high traffic swiftly
to avoid long stressful queues during peak hours.

Safety and security when it matters

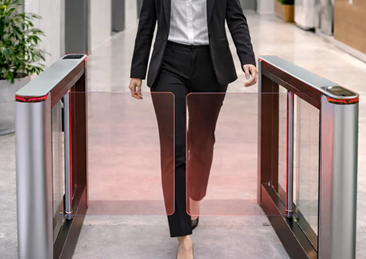

The door panel will auto reverse to avoid hitting elderly, pregnant or handicapped
user that might need more effort to pass through. Door panels will turn red
with an alarm buzzer to alert unauthorized user, tailgating or incorrect access direction
attempt so that the security guard can react immediately on the spot.

Comfortable access for all

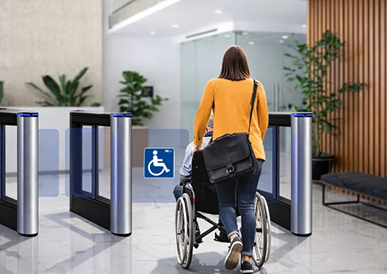

The door panel of any selected lane can be wider up to 1100 mm to accommodate
a handicapped wheelchair or goods travelling on a trolley.

Easier to accommodate project schedule
Unforeseen delay is common in most projects.
You are worried about the extra storage/penalty cost if the gate arrives too early or too late.
Let us know your project date forecast so that we can plan the production to meet your dateline.

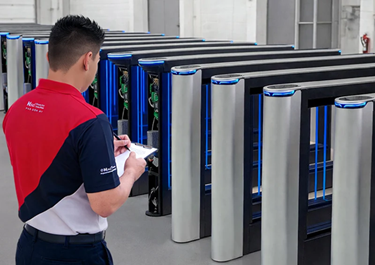

All gate is 100% QC tested as per our ISO9001 procedure just before your collection.

Specification:

Description

Parameters

Body material

Powder coated mild steel (SPCC)

Aluminium alloy top and side cover

Tempered glass body panel

Passage Width

Standard 600mm, Maximum 1100mm

Door opening / closing speed

Programmable, min 0.5s

Optimal flow rate

Up to 30 people per minute (NC)

Up to 50 people per minute (NO)

Power supply

AC110V to 240V, 50/60Hz

Power consumption

<24W (Standby), <150W (Operational)

Motor

DC Brushless Servo Motor, 24V

Input connection

Dry contact

Working environment

Indoor only

Working temperature

-15℃ - 55℃

Relative humidity

≤ 90%, non-condensing

Gate door material

Acrylic, 10.0 ± 0.6 mm thick

Cabinet dimension

1500(L) x 120(W) x 980(H) mm

MTBF

10 million cycles
