Evocus Digital HDMI (Full HD) Microscope Camera with Measurement Function – H.10.002 Series

Evocus H10.002 – Digital HDMI (Full HD) Microscope Camera with Measurement Function for Inspection and Measurement by MSP Metrology (M) Sdn Bhd from Evocus Korea.

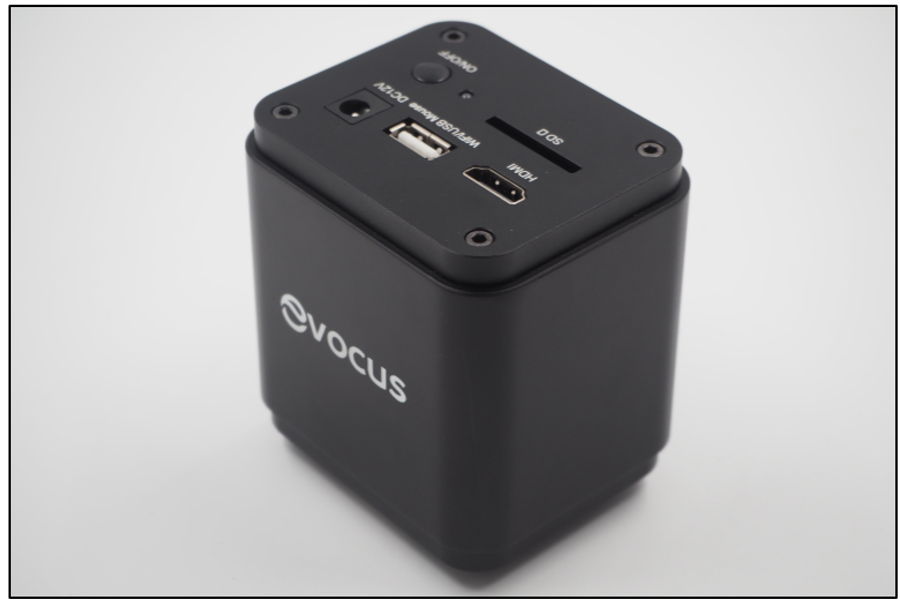

Evocus HDMI Industrial Digital Camera

All in 1 (HDMI+WIFI+SD card) C-mount camera with high sensitivity CMOS sensor
Simultaneous HDMI & WIFI output
Built-in mouse control
Built-in image capture & video record to SD card
Built-in camera control panel for mouse control
Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions
Built-in image & video browsing, display & play
Ultra-Fine color engine with perfect color reproduction capability (USB)
With advanced video & image processing application ToupView
Support standard SDK for Windows/Linux/macOS/Android (USB)
CNC shell molding design

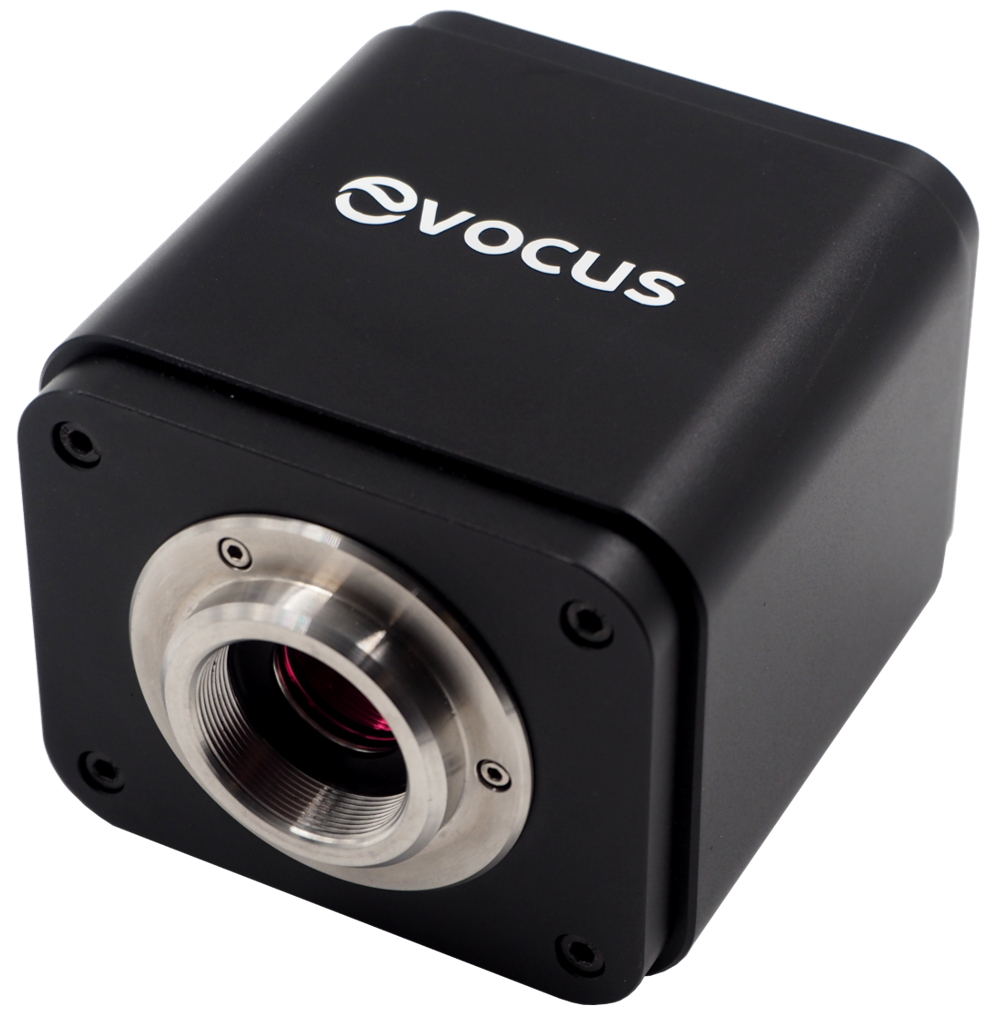

Ultra High Performance

Evocus H10.002 camera is a multiple interfaces (HDMI+USB2.0+SD card) CMOS camera and it adopts an ultra high performance CMOS sensor as the image picking device. USB2.0 is used as the data transfer interface.

USB Features

For USB2.0 output, unplug the mouse and plug in the USB2.0 cable, then the video stream can be transferred to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as other camera series.

Smart Built in Software Layout (HDMI Output)

For HDMI output, a camera control panel and toolbar are overlayed on the HDMI screen. In this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video, and more.

Specifications

Model	Sensor & Size (mm)	Pixel (µm)	G Sensitivity / Dark Signal	FPS / Resolution	Binning	Exposure
EVS-H10.002	1080P / 2M Sony IMX185(C) 1/1.9" (7.20 × 4.05)	3.75 x 3.75	1120 mV with 1/30s 0.15 mV with 1/30s	30 @ 1920×1080 (HDMI) 25 @ 1920×1080 (WiFi)	1×1	0.06ms ~ 918ms

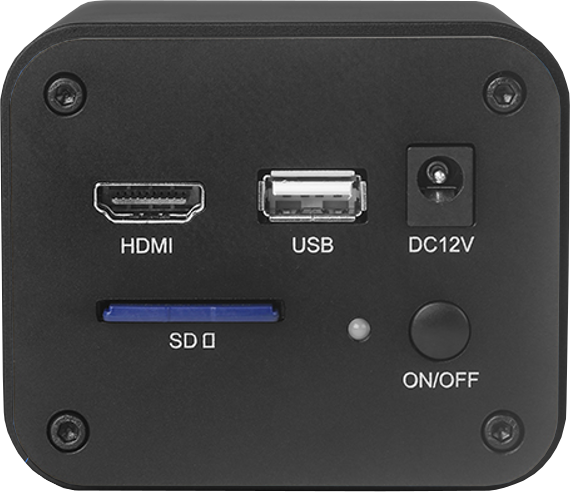

Interface & Button Functions
USB	USB Camera or USB Mouse
HDMI	HDMI Output
DC12V	12V Power in
SD	SD Card Slot
ON/OFF	Power On/Off Switch
LED	Power On Indicator

Other Specification for HDMI Output
UI Operation	With USB Mouse
Image Capture	JPEG Format with 2M Resolution in SD Card
Video Record	ASF Format 1080P 30fps in SD Card
Camera Control Panel	Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
Toolbar	Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function

Other Specification for USB Output
White Balance	Auto White Balance
Color Technique	Ultra-Fine Color Engine (USB)
Capture/Control SDK	Standard UVC for Windows/Linux/Mac(USB)
Recording System	Still Picture or Movie (USB)

Software Environment (for USB2.0 Connection)
Operating System	Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit) OSx(Mac OS X), Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 4GB or More
	USB port: USB2.0 High-speed Port
	Display: 19″ or Larger
	CD Rom

Operating Environment
Operating Temperature	-10 °C~ 50 °C
Storage Temperature	-20 °C~ 60 °C
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 12V/2A Adaptor

Overall Dimension
Width x Depth x Height	78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”)
Packing Weight	0.47 kg

Contact us today to upgrade your inspection and measurement capabilities with Evocus HDMI Digital Camera!
