SU LEE/SL1301 PNEUMATIC CLAMPING & PULLING MACHINE

(P) - Pre-order, delivered within 45-60 days.

T&C apply. Price Exclude Shipping Fee.

SU LEE/SL1301
PNEUMATIC CLAMPING & PULLING MACHINE

Warranty: 1 year carry-in warranty against manufacturing defects but not including consumable parts and caused by inappropriate use by user.(Excluded technician accommodation and transportation charges) (Whole Malaysia service center)

Call/WhatsApp:

CUSTOMER SERVICE:

  016-723 0908         wasap.my/60167230908         tiktok/tarmahsdnbhd

It is suitable for various types of fabric, as like woven fabrics, non-woven fabrics, handcrafts, workwear, denim and umbrellas etc.

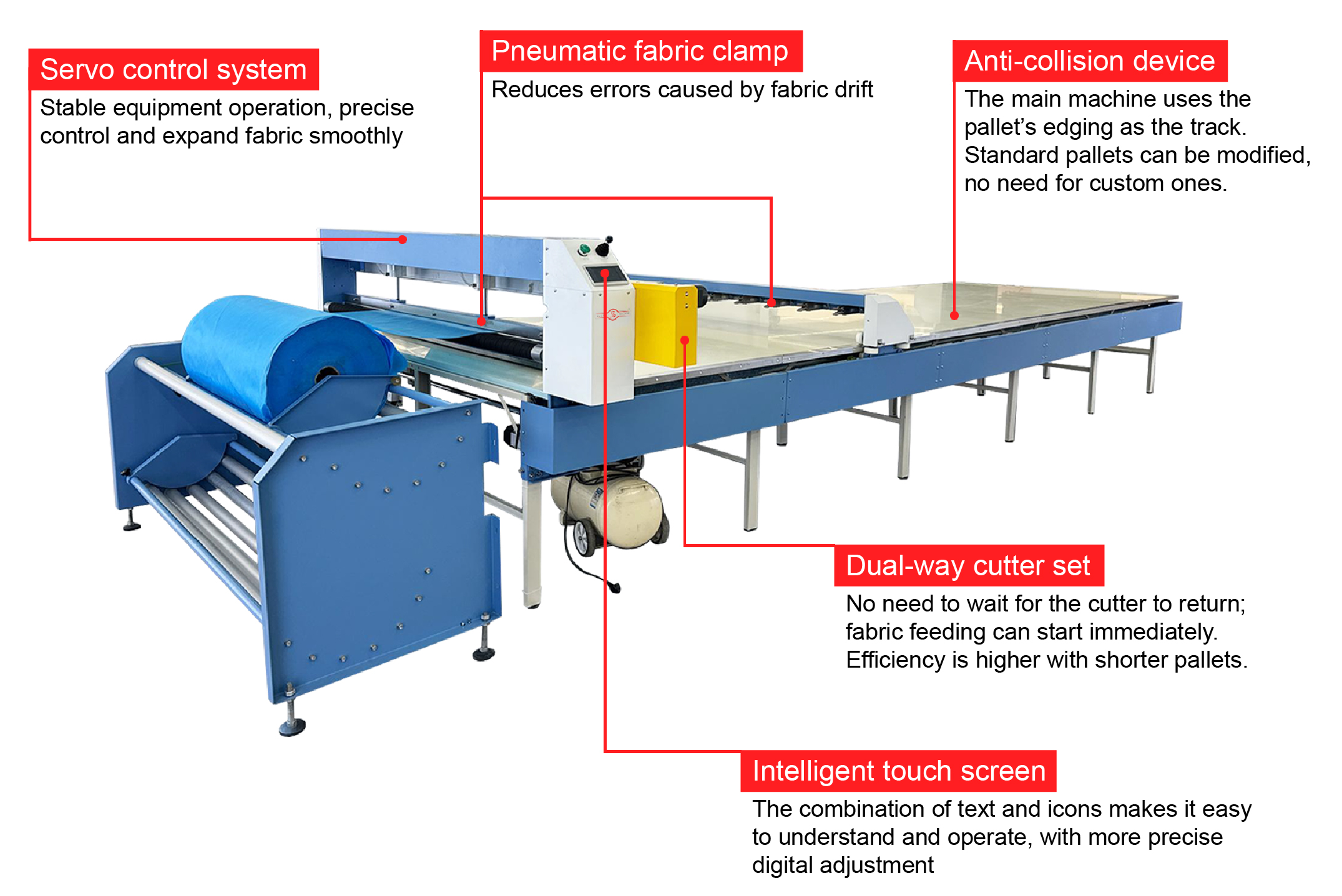

INTRODUCTION :

• The clamping cutting machine is equipped with dual cutting heads. After the fabric is cut, there is no need to wait for the cutter to return to the starting point;  feeding can be initiated immediately, improving efficiency when laying shorter board lengths.
• Additionally, multiple rolls of fabric can be laid, with the number of rolls adjustable based on production requirements.
• The machine operates at high speeds without slipping, achieving a maximum walking speed of 150 meters per minute.
• The main drive is powered by a servo motor, with synchronization provided by a belt drive system, ensuring positioning accuracy within 1mm.

CUSTOMIZED CLOTH BUCKET CASE :

• According to the different characteristics of the factory's fabrics and production needs, site size, fabric loading, staffing, cloth bucket customization, to achieve the efficiency of production requirements in line with the factory as well as the effect of tailor-made services.

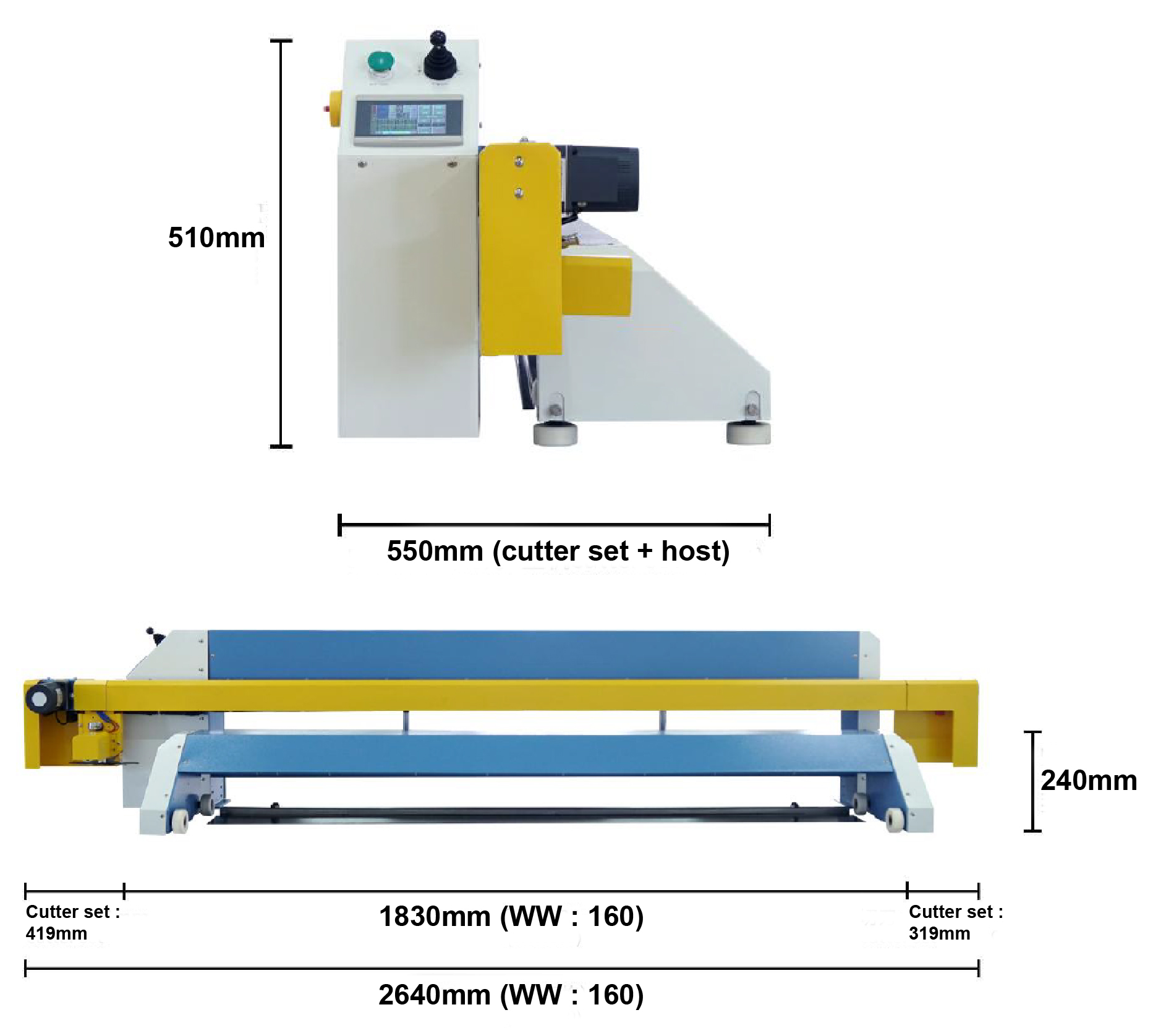

EQUIPMENT SIZE :

EQUIPMENT :

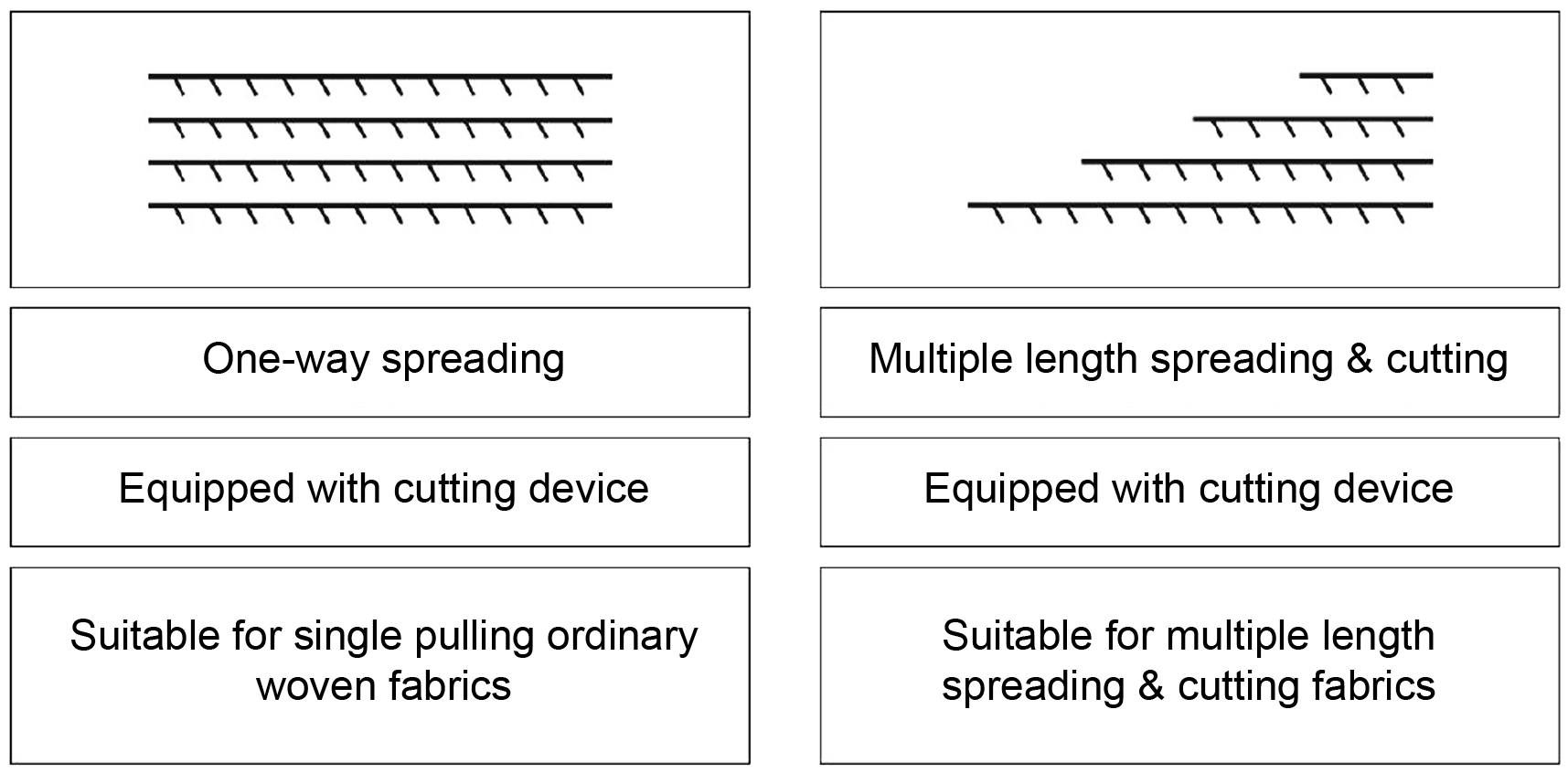

SPREADING MODE :
