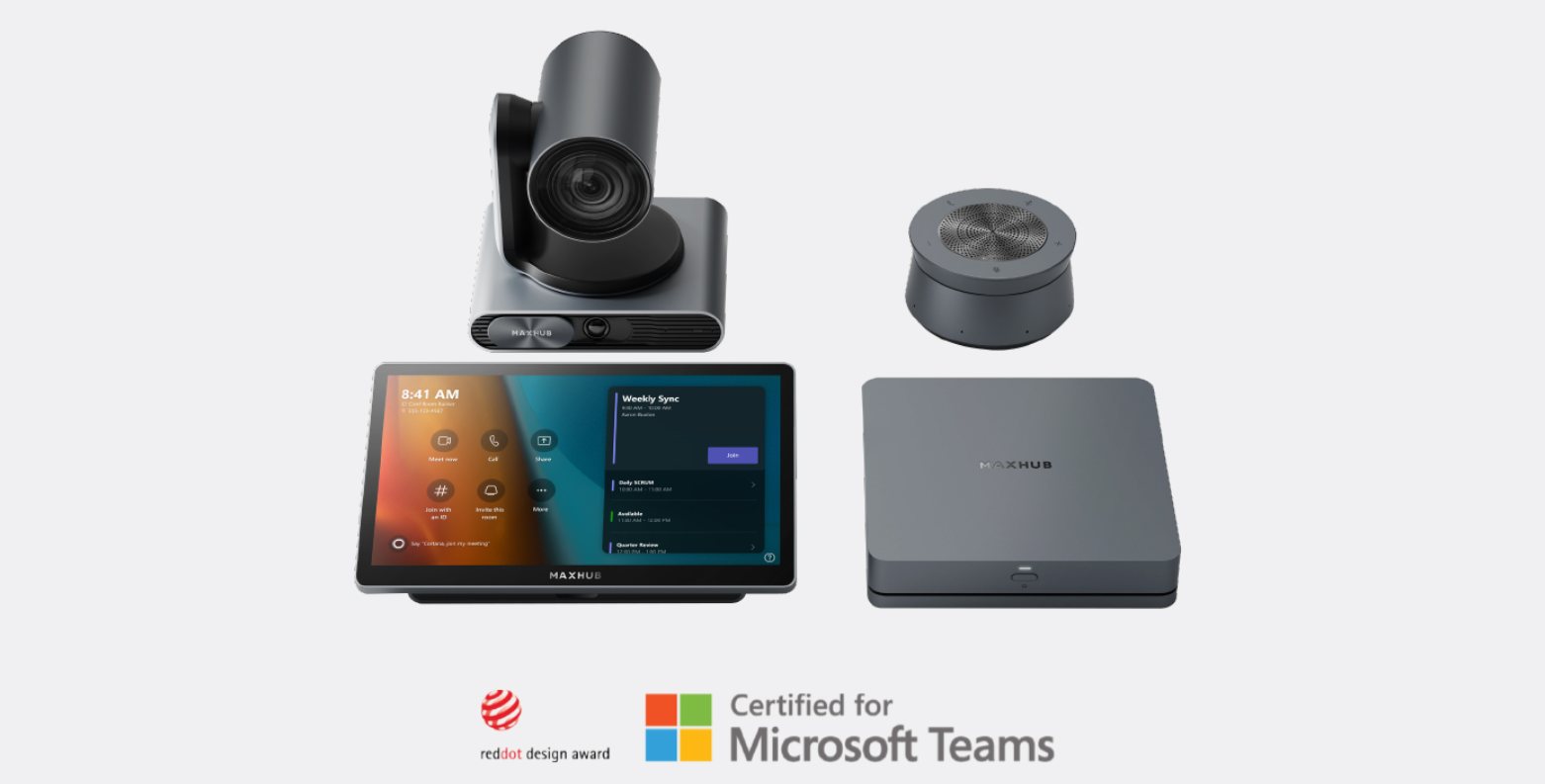

MAXHUB XT20-PS Kit

Designed for medium to large meeting rooms, this solution integrates advanced video, audio, and control features for an enhanced Microsoft Teams Rooms experience.

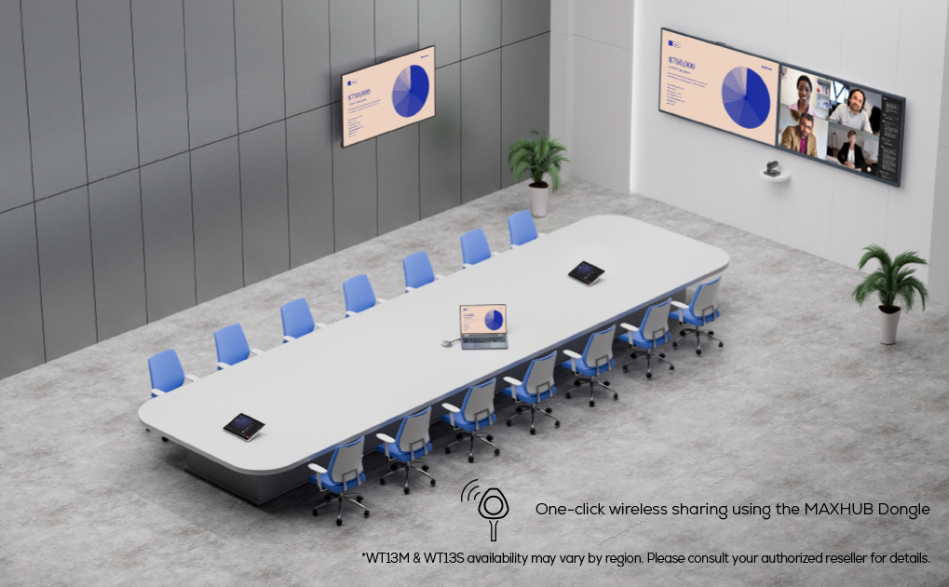

Effortless Video Conferencing with Dual Display & Wireless Sharing
The new bundle facilitates a seamless dual-screen display for meeting spaces. Easily initiate wireless content sharing with a single click using the MAXHUB Wireless Dongle,or enjoy exclusive 4K sharing cia wired connections.

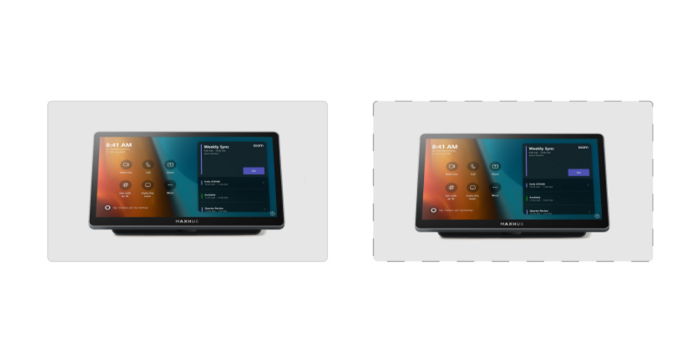

Additional Console for Extra Flexibility
In addition to the default console included in the bundle kit, you can extend the setup by adding another console. The is ideal for larger meeting rooms and ensures easier access to meeting controls for all participans.


A Single Cable Deployment Fits Rooms of All Sizes
Just one Cat5e/Cat6a cable connects the touch console to the Microsoft Teams Rooms mini PC, enabling flexible placement on the table without distance limits.




Capture Every Detail

With a dual-eye 4K camera design, the panoramic camera detects every movement in the meeting room, while the PTZ camera ensures accurate capture of attendees at all times.





Plug-and-Play Simplicity

Featuring POE+ technology, this device can be powered using a Cat5e cable. Additionally, it includes an integrated mounting kit for effortless installation. Thanks to its USB plug-and-play setup, it is instantly ready for your meetings.



Enhance Zoom Clarity
The UC P30, equipped with a 12x optical zoom and a 90° Field of View (FOV), guarantees clear and high-definition image quality for every participant, even when zoomed in.



AI-Powered Tracking Features

Auto Framing
Automatically adjusts the camera view to center all participants in a room. This is achieved via real-detection and tracking of the number and positions of participants.


Speaker Tracking
Speaker Tracking dynamically follows the active speaker in real time, elevating engagement with a lifelike meeting experience.

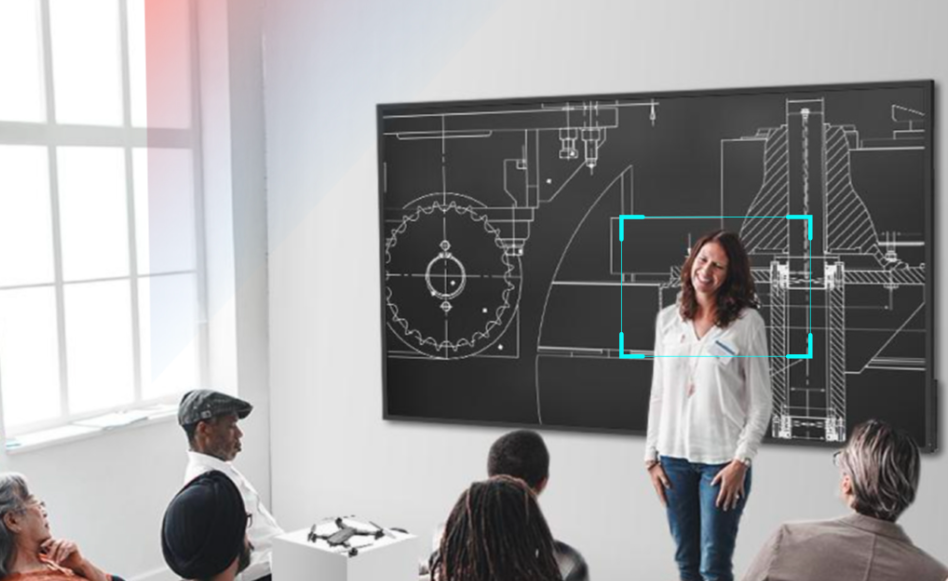

Presenter Tracking
Presenter Tracking ensures the presenter remains centered by dynamically following them during a presentation, providing remote participants with an immersive experience.

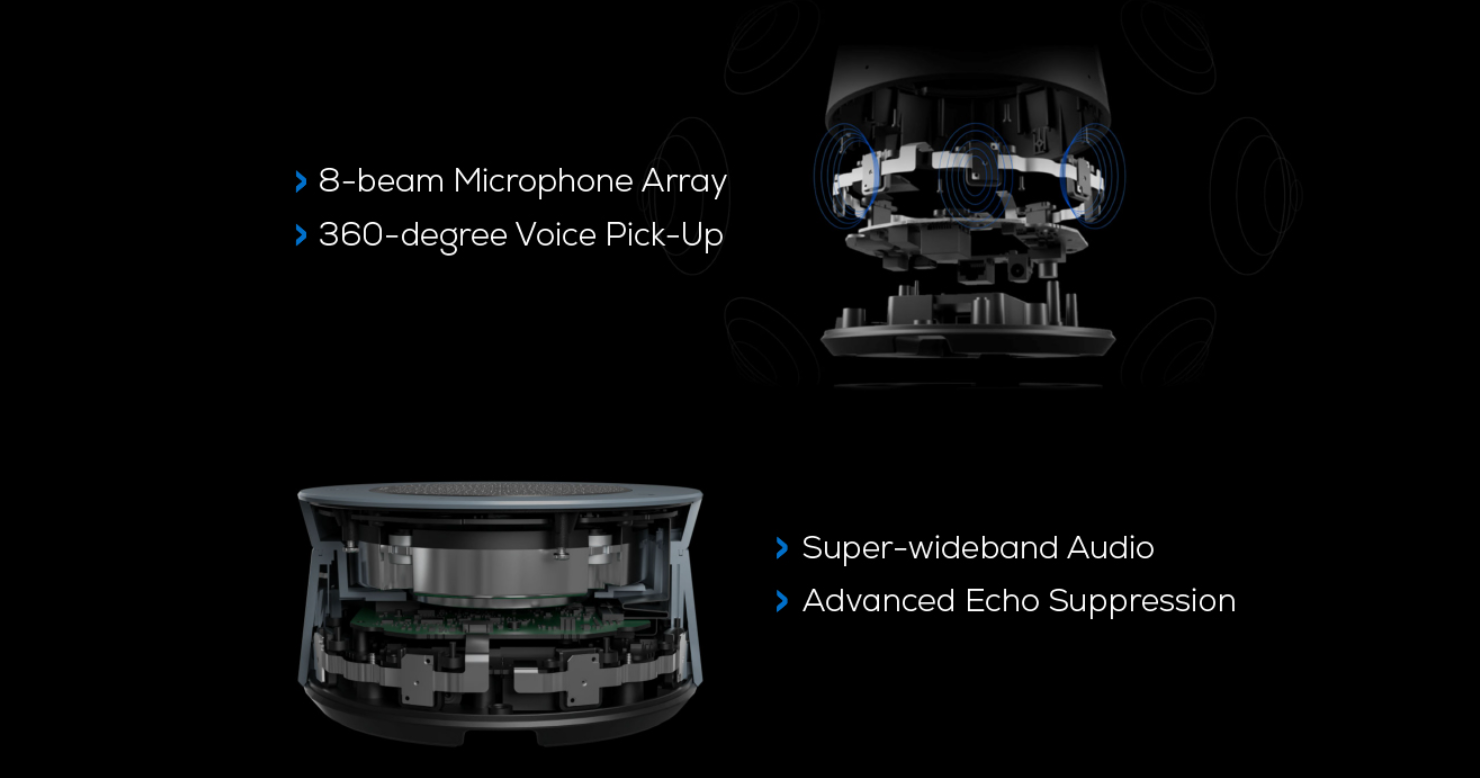

360° Voice Pick-Up and Natural Sound

The UC BM45 features an 8-beam microphone array and advanced speakers for 360-degree voice pick-up and natural sound. With super-wideband audio and advanced echo suppression, it ensures clear communication.

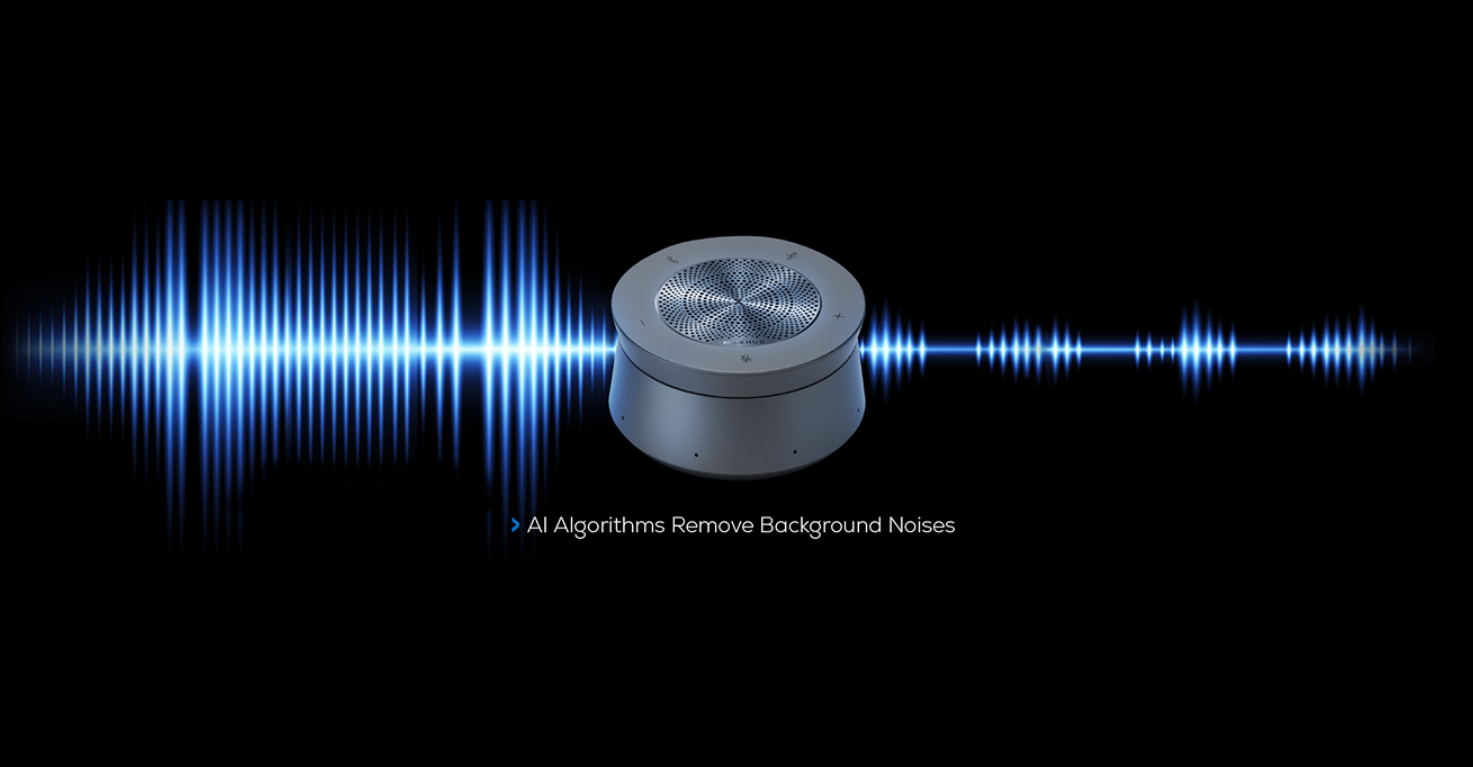

AI Noise Suppression

AI algorithms remove background noises like keyboard clicks and air conditioning, focusing solely on human voices. Combined with AI noise cancellation and AEC, it enhances focus and collaboration.

Flexible Coverage
Cover large meeting spaces effortlessly by connecting multiple UC BM45 units in a daisy chain via a Cat5e cable. This flexible deployment option accommodates various room sizes, ensuring comprehensive audio coverage.



Full-Duplex Audio
Say goodbye to interruptions during discussions. Full-duplex audio allows for simultaneous conversations, making collaboration seamless and efficient.

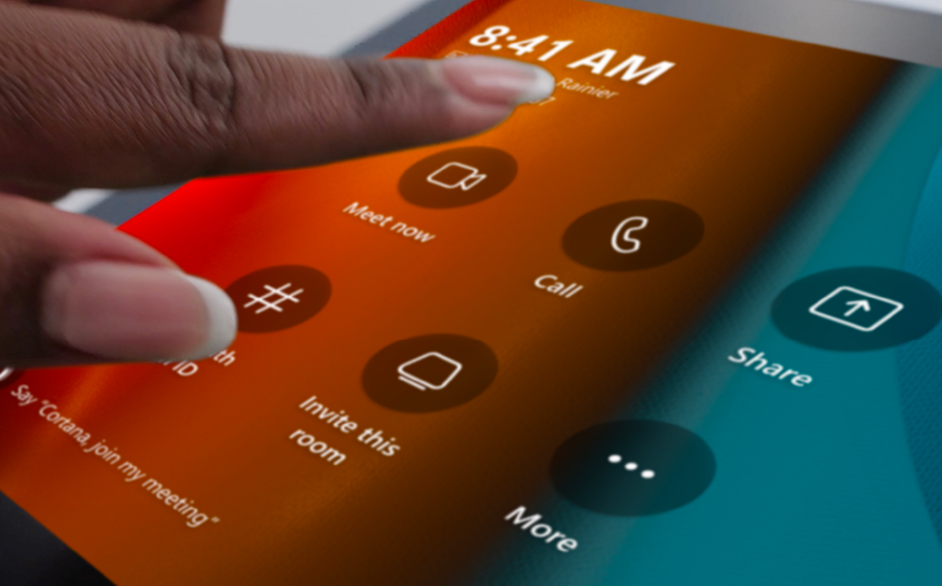

Instant Access with One Click
Just one click on the touch screen to join the meeting and directly control Teams meetings, making it simple and efficient, allowing participants to focus more on the meeting content.

Remote Management

With MAXHUB Pivot, IT managers can easily monitor, control, and update all your room devices remotely.

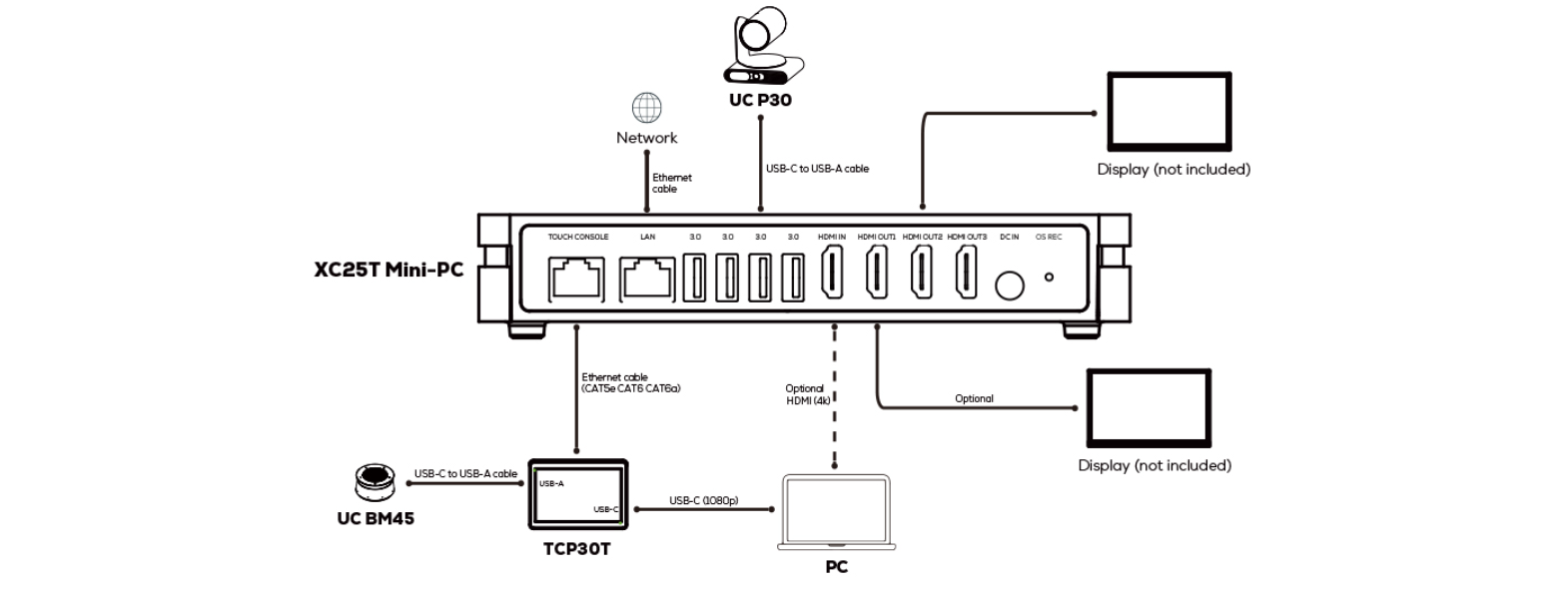

Connection



Statement

Size and weight vary by configuration and manufacturing process, please refer to the actual  product. The product images are for illustratuve purposes only and may slightly differ in appearance, colour, size, etc, from the actual product. The description, illustrations, etc. in this document may subject to change in accordance with the latest product specification and performance. Should the above-mentioned change in the document become necessary, the document may be updated without written notice.



XT20-PS Kit

Model	XT20-PS Kit
XT20-PS Kit Package Includes:
XC25T Mini-PC	X1
TCP30T Touch Console	X1
UC P30 Camera	X1
UC BM45 Speakerphone	X1
Optional Accessory
Wireless Dongle (Content Share )	WT13M or WT13S
Wall Mount Bracket	TCP30WM
Speakerphone (Daisy Chain)	UC BM45
Package Physical Specification
Package Dimension (W*H*D)	660 × 360 × 325 mm / 26 × 14.2 × 12.8 inch
Gross Weight	10.8 kg / 23.8 lbs
Environmental Conditions
Operation Temperature	0°-40°C / 0°F-104°F
Operation Humidity	10%~90%RH
Storage Temperature	-20°C-60°C / -4°F-140°F
Storage Humidity	10%~90%RH
Altitude	Below 5000 m/ 3.1 miles



Mini-PC XC25T



Model	Mini-PC XC13T
General Information
Device Type	Mini-PC
CPU	Intel® CoreTM i5-1240P Processor
Memory	16GB DDR4
Storage	256GB
Graphics	Intel® UHD Graphics for 12th Gen Intel® Processors
Network	1000Mbps RJ45
Wi-Fi	Wi-Fi 6
Support Bluetooth	5.1
Operating System	Windows 11 loT Enterprise SAC
Application	Microsoft Teams Room
Accessories (included in the package)
Wall Mount Kits	X1
HDMI Cable (3m / 9.8ft)	X2
Power Adapter	X1
Power Cable	X1



I/O Port
USB-A 3.0	X4
RJ45 (LAN)	X1
RJ45 (Touch Console)	X1
HDMI Out	X3
HDMI In (Content Share)	X1
AC Power	X1
Kensington Slot	X1
Power
Power Supply Model	DC Power In
Power Requirements	19.5V 6.15A
Max Power Consumption	120W
Physical Specification
Product Dimension	196 × 196 × 40 mm / 7.7 × 7.7 × 1.57 inch
Product Weight	1.12 kg / 2.47 lbs

Touch Console TCP30T



Model	Touch Console TCP30T
Display
Size	11.6 inch
Resolution	1920 x 1080
Frequency Refresh Rate	60Hz
Back Light Unit	ELED
Brightness with Glass	Min.250cd/m2, Typ.300cd/m2
Life Time	≥ 20000 Hours
Touch System
Type	Capacitive Touch
Surface Treatment	Anti-fingerprint, Anti-glare
I/O Port
USB-C (Content Sharing)	X1
USB-A 2.0 (Table Audio Devices)	X1
RJ45 (to connect XC25T mini-PC)	X1
RJ45 ( for optional 2nd touch console)	X1
Audio Out (headphones, without mic)	X1
USB-A 2.0 (for wireless dongle pairing)	X1



Sensor
Motion Sensor	PIR Sensor for Auto Wake-up
Accessories (included in the package)
USB-C Cable (1.8m / 5.9 feet)	X1
Ethernet Cable (7.5m / 24.6 ft)	X1
Physical Specification
Product Dimension	278 x 164 x 82 mm /11 x 6.4 x 3.2 inch
Product Weight	1.16 kg / 2.56 lbs



UC P30

Model	UC P30
Dual Camera
PTZ Camera
Image Sensor	Sony 4K , 8.42M pixel
Video Outputs (USB 3.0)	H.264/MJEPG up to 2160p@30fps, YUV up to 1080p@30fps
Video Outputs (USB 2.0)	H.264/MJEPG up to 1080p@30fps
Optical Zoom	12 x
Digital Zoom	16 x
FOV	DFOV 90°/ HFOV 80°/ VFOV 49.2°
Motorized Pan & Tilt	Pan: ±170°, Tilt: ±90°
Power
Power Supply	DC in 12V, 2A / POE+ in (Max 25W)
Power Consumption	≤ 22W



Accessories (included in the package)
USB Cable C-A (5m)	X1
Power Adapter	X1
Remote Control	X1
Mounting Kits	X1
Quick Start Guide	X1
Panoramic Camera
Image Sensor	8MP, Sony Sensor
FOV	120° DFOV
Manual Tilt	±10°
Privacy Cover	Electric Privacy Cover
Camera LED Indicator	Yes



IO Ports
USB 3.0 Type-C (Device)	X1
USB 2.0 Type-A (host)	X1
Mic In (3.5mm)	X1
HDMI 1.4 out	X1
RJ45 (IP Stream, POE+)	X1
RS232 (VISCA/Pelco-D/ Pelco-P protocol)	X1
Security Lock Slot	X1
AI Feature
Auto Framing
Speaker Tracking
Presenter Tracking
Intelligent Focus



UC BM45

Model	UC BM45
Audio
Microphone Quantity	X8
Voice Pick-up Range	Best 4 m (13.1 ft) ,maxium 8 m (26.2 ft)
Microphone Frequency Range	100-10 kHz
Speaker Output Power (Maxium)	5W
Sound Pressure Level	82db@1m
Speaker Bandwidth	100Hz~20kHz
AI Noise Reduction	Yes
Full Duplex Communication	Yes
Auto Gain Control (AGC)	Yes
Auto Echo Cancellation (AEC)	Yes
Physical Specification
Product Dimension	122 mm (Diameter) x 65 mm/ 4.8 inch (Diameter) x 2.6 inch
Product Weight	472 g / 1 lbs
Package Dimension	TBD
Package Weight	1.2 Kg



Connectivity
USB-C	X1
RJ45 (POE in)	×1 To connect to a POE switch To connect the previous UC BM45 in a cascading mode To connect MAXHUB V7 XBoard (Mic in)
RJ45 (POE out)	×1 To connect the next UC BM45 in a cascading mode
DC In	54V / 0.925A
Easy of Use
Hot Key	Mute / Unmute, Volume +, Volume -, Answer, Hand up
LED Indicator	Yes
Compatible Software	MAXHUB Aglin MAXHUB Pivot
Room Certification	Microsoft Teams Rooms Certified
Accessories (included in the package)
Table Bracket	X1
Power Adapter	X1
USB-C to USB-A Cable	X1
Ethernet Cable	X1
