PRODUCT FEATURES
FREE WIRING
HyperLink communication technology supports any wiring pattern rather than just daisy chain connection, reducing the installation cost and the possibility of incorrect connection. It has stronger anti-interference ability, achieving a communication distance of up to 2000m.
.png)

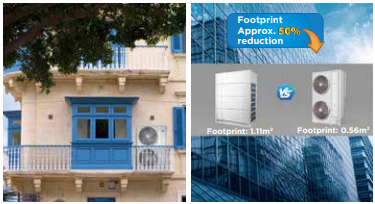

SPACE SAVING
The compact, slim designed outdoor unit can easily be installed on a balcony, realizing complete system installation within each floor. Which release more useful utilization of the space on the building rooftop.
.png)
EXTERNAL STATIC PRESSURE UP TO 80PA*
The static pressure of the outdoor unit can be up to 80Pa which facilitates installation of the unit on each floor of high-rise buildings or on balconies.
.png)
FOUR-WAY PIPING CONNECTION
A four-direction space is available for connecting pipes and wiring in various installation sites.
.png)

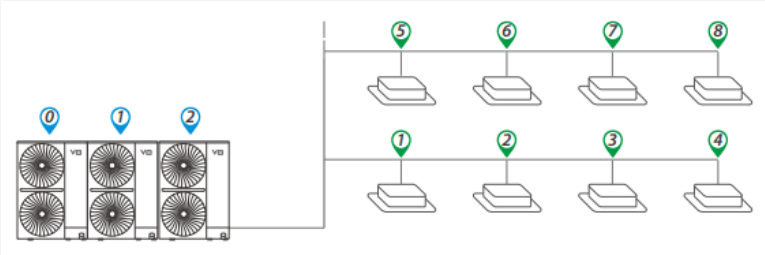

AUTO ADDRESSING
Addresses for all indoor units and combined outdoor units can be assigned automatically by the V8S system, further simplifying installation.
.png)

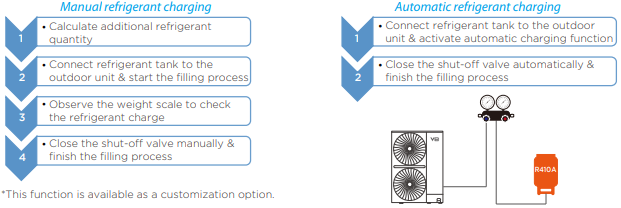

AUTOMATIC REFRIGERANT CHARGING*
Compared to manual refrigerant charging, automatic refrigerant charging greatly simplifies the process, making installation and maintenance easier and more efficient.
.png)

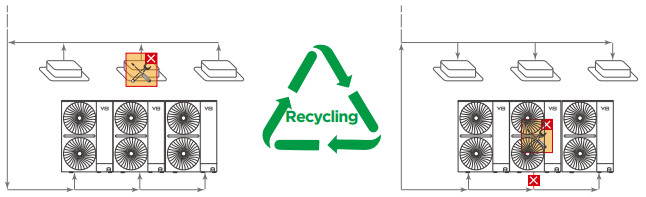

AUTOMATIC REFRIGERANT RECYCLING
When an indoor unit fails, the refrigerant can be recycled into the outdoor units. When part of the outdoor unit fails, the refrigerant can be recycled into the indoor units and the normal outdoor unit. Two types of refrigerant recycling make the maintenance process easier and more efficient.
.png)

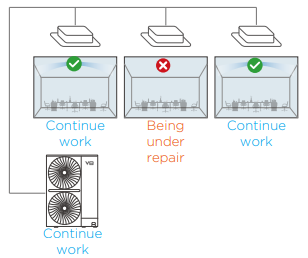

MAINTENANCE MODE
The maintenance mode allows the shutdown of some indoor units without shutting down the whole VRF system, and it can be activated on site during the maintenance period as the remaining indoor units continue to operate.
.png)

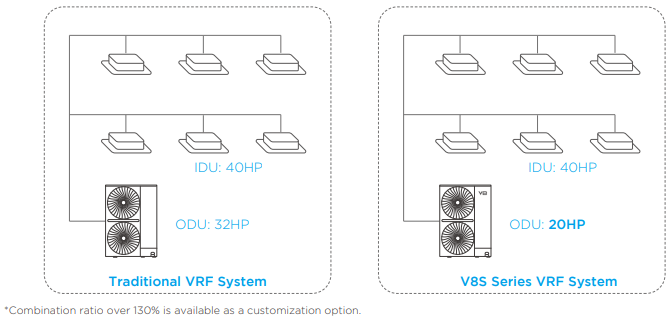

WIDE COMBINATION RATIO
Compared to traditional VRF with combination ratio of 50-130%, the V8S Series VRF can be extended to 50-200%, and the wider combination ratio allows for more flexible system configuration. The larger combination ratio can be applied to long-term part-load operation scenarios, allowing for further reduction in installation costs.
.png)
EASY SOFTWARE PROGRAM UPDATE
In addition to upgrading the program of outdoor and indoor units through USB and burner, the new product can also remotely upgrade all the programs of indoor and outdoor units through the data cloud gateway, making system upgrades very convenient and ensuring that the system program is always up to date.
*The data cloud gateway is still under development and needs to be purchased separately
.png)

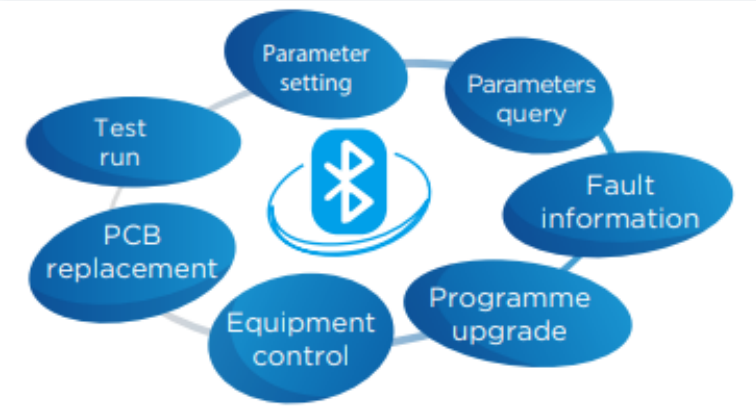

SMART COMMISSIONING/MAINTENANCE TOOL
With the newly developed smart tool (Bluetooth module and special Bluetooth after-sales kit), system settings, operating parameter queries, trial runs and programme upgrades are all possible without opening the cabinet.
Useful in the following situations：
.png)
.png)
