| Capabilities | Repeatability (mm) | ±0.1 | |
| Gear Lead (mm) | 166.6mm | ||
| Load (kg) | 15 | ||

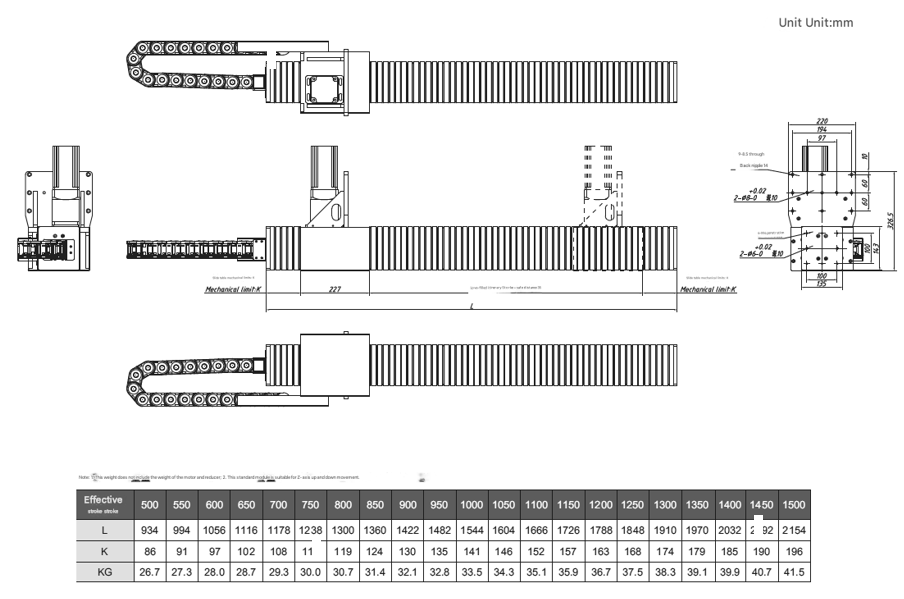

| Stroke Pitch (mm) | 500-2550mm / 50mm pitch | ||
| Parts | Gearbox Number (mm) | 90 | |
| Gear Specification (M) | 2M | ||
| High Rigidity Linear Guide (mm) | 20X15.5 | ||

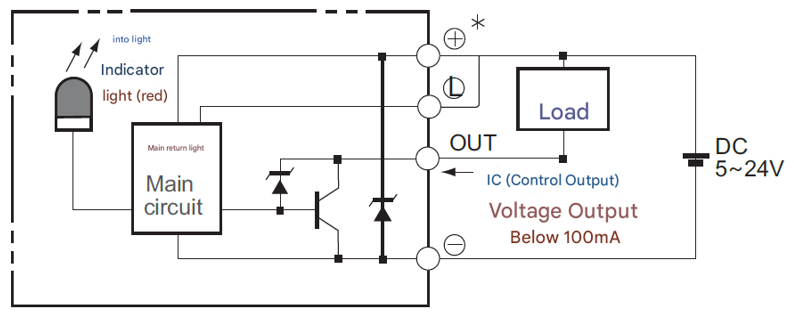

| Home Sensor | Outside | EE-SX674 (NPN) | |
