KF-300S/KW-316L Saw Wire & Flux

Description

KF-300S/KW-316L
Basicity: 2.5
The weld metal has a low-carbon austenitic structure containing 18.5% Cr, 12.5% Ni, and 2.5% Mo

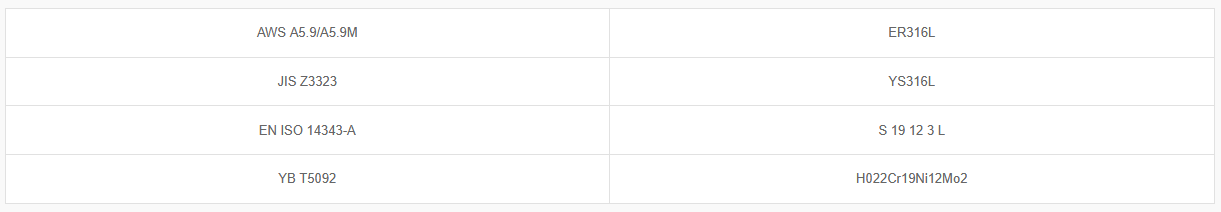

Classification


Application and Features

• The weld metal has a low-carbon austenitic structure containing 18.5% Cr, 12.5% Ni, and 2.5% Mo
• KF-300S provides good operability and slag detachability, producing welds with an excellent bead appearance. It also offers outstanding mechanical properties and corrosion resistance
• It is suitable for welding critical chemical containers, and is particularly effective for LNG vessels where low-temperature impact toughness is required

Welding Position


Welding Instruction

- Please refer to the precautions for submerged arc welding (SAW)

Application
- It is suitable for welding critical chemical containers, and is particularly effective for LNG vessels where low-temperature impact toughness is required

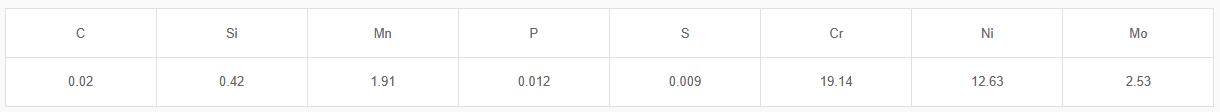

Typical Chemical Composition of  Weld Metal (wt%)

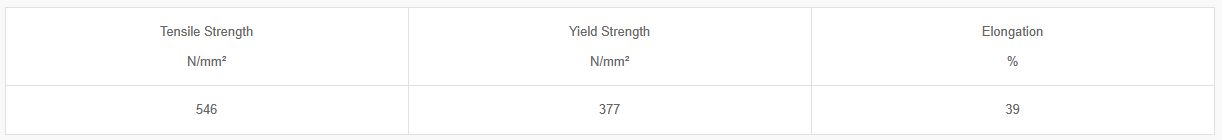

Typical Mechanical Properties of Weld Metal

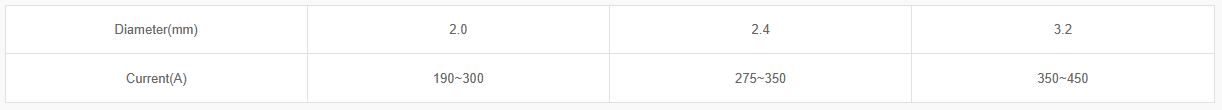

Size and Polarity (DC+)
