UNIVERSAL LINEAR MANIPULATOR
Universal Linear Manipulator QTH22 Series
Universal Linear Manipulator QTH22 Series



Universal Linear Manipulator QTH22 Series

SEM Equipment Sdn. Bhd. flag
Category: UNIVERSAL LINEAR MANIPULATOR Available
For more information, visit our official website at sem-eq.com
Visit Official Site Contact Us
Description



Model :




Features :

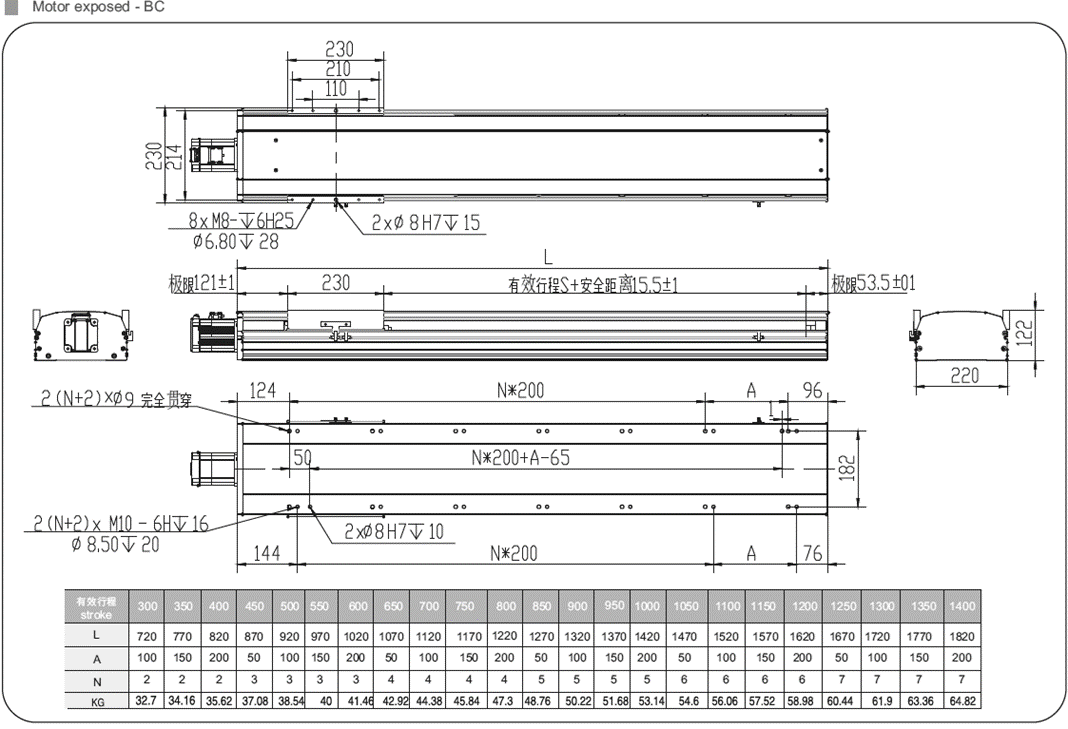

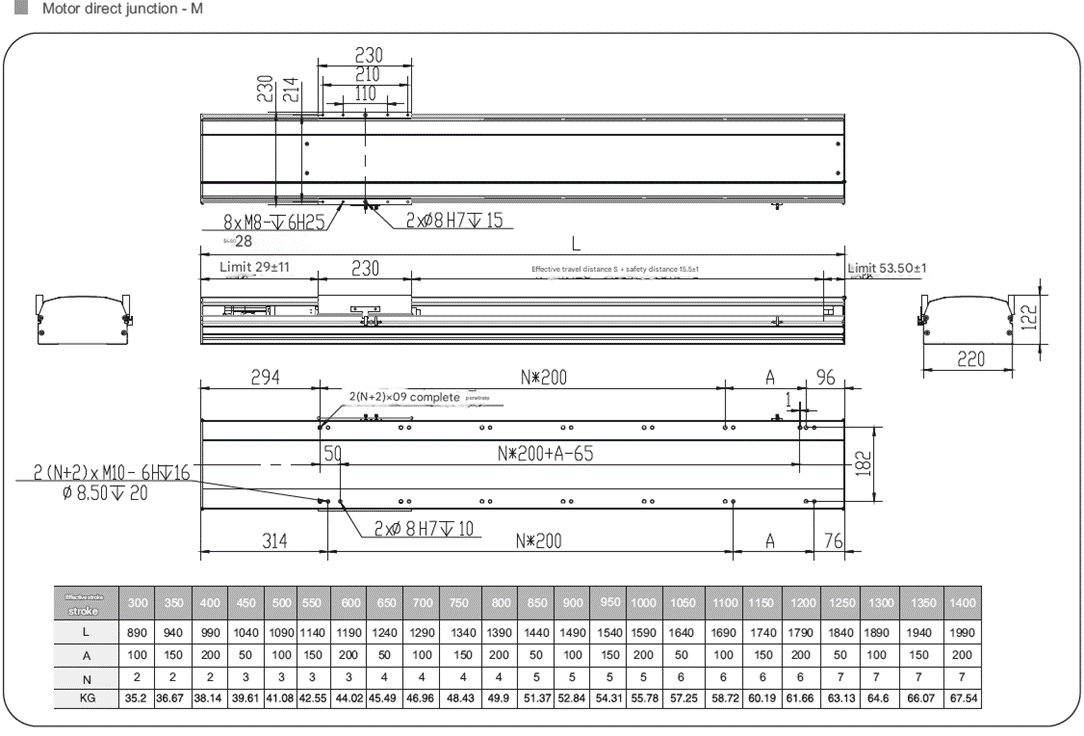

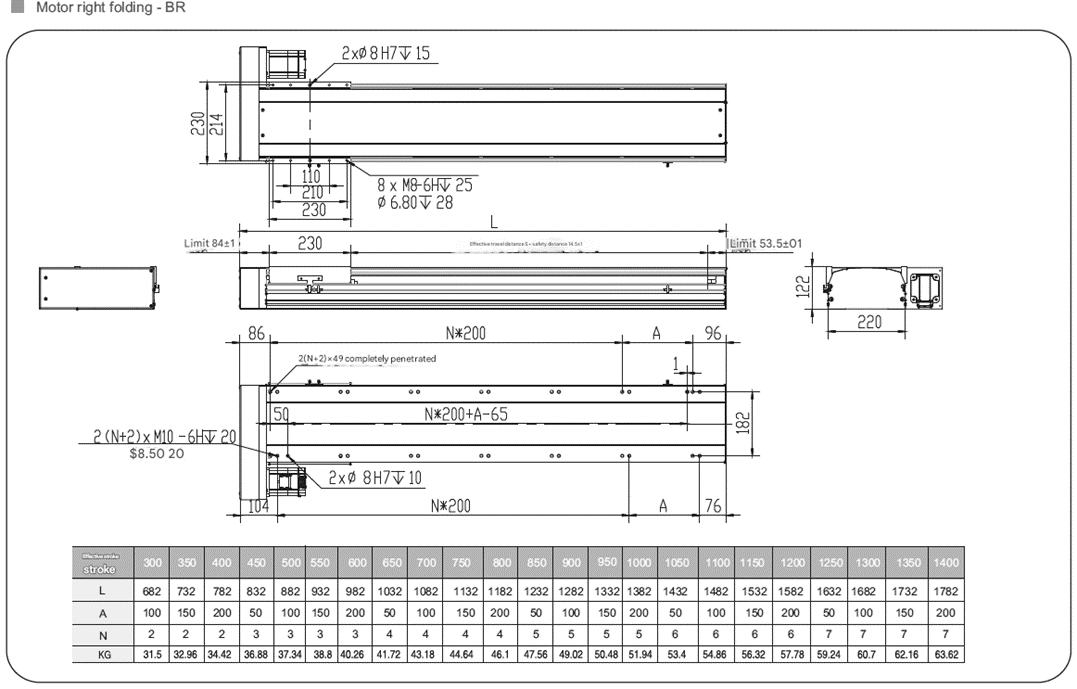

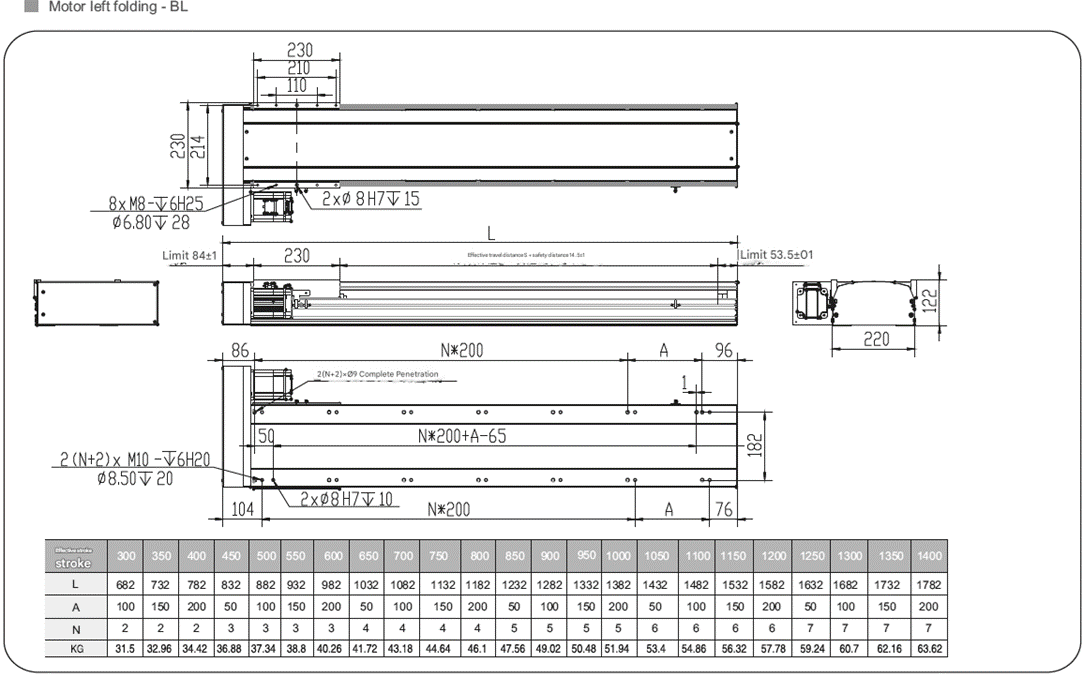

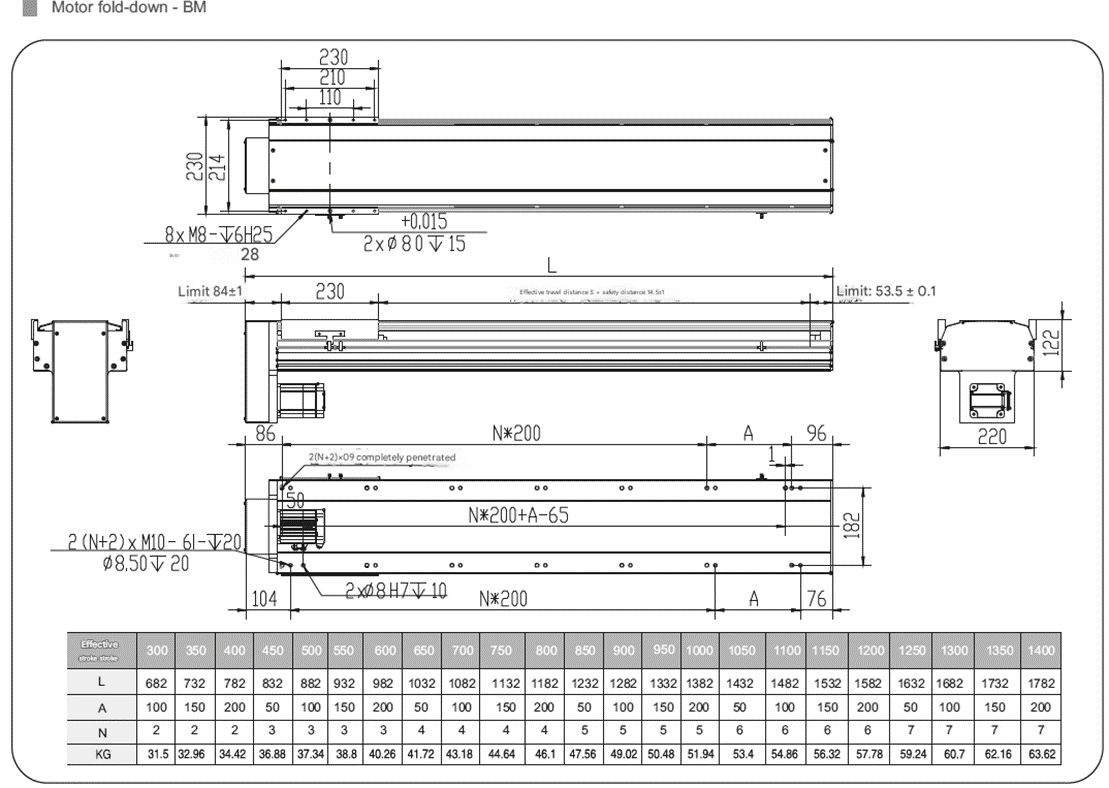

Dimension :


















Sensor layout :






Specifications :


Performance Capability Position repeatability (mm) ±0.01
Screw lead (mm) 5 10 20 32
Maximum Speed (mm/s) 250 500 1250 1600
Maximum Payload Horizontal use of Horizontal (kg) 150 150 105 43
Vertical (kg) 55 45 20 12
Rated Thrust (N) 2565 1281 640 320
Standard Stroke Pitch (mm) 100-10500mm/50 interval 50mm pitch
Parts AC Servo Motor Output (W) 750
Ball screw outer diameter Ø (mm) C7 Ø25 C7 Ø32
High Rigidity Linear Guide (mm) 23X18
Coupling (mm) 17X19  12X19

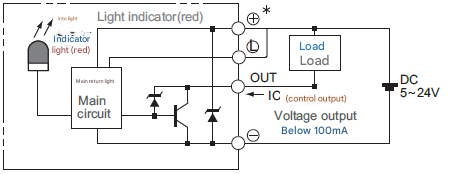

Home Sensor Outside EE-SX672 (NPN)
Built in EE-SX674 (NPN)
