Features
All ball and needle bearings for longer life
Built-in thickness gauge for operator convenience
Easy punch and die replacement for less down time
Lock-On Button enables easy continuous operation
Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

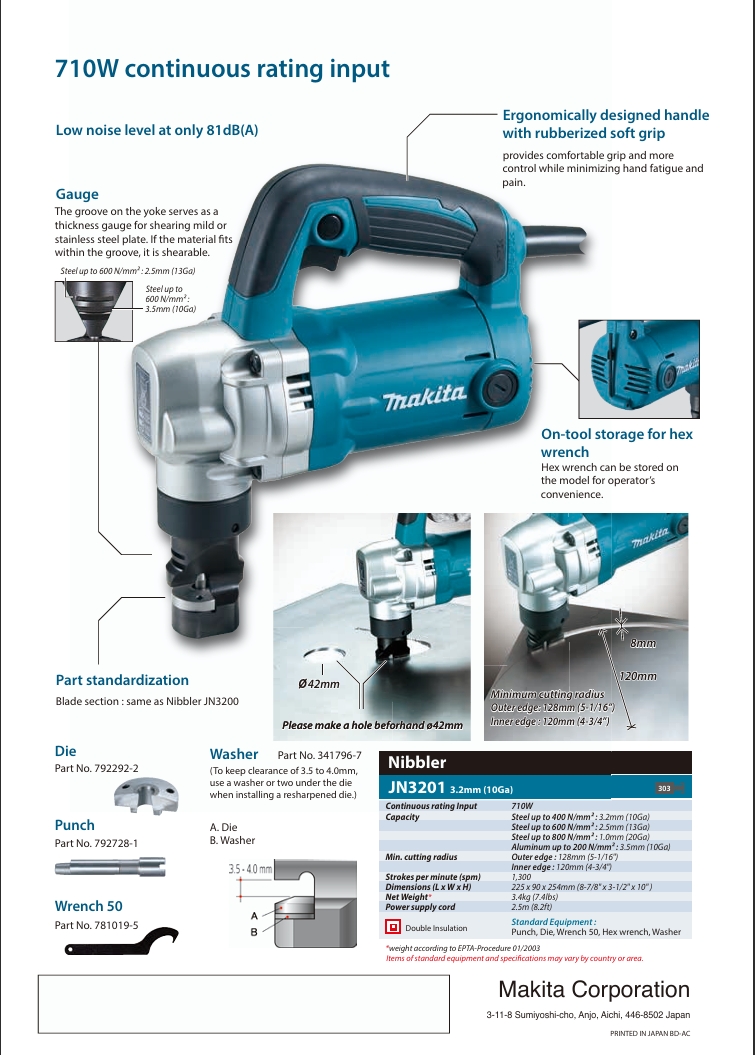

Specification
Continuous Rating Input: 710 W
CapacitySteel up to 400 N/mm²: 3.2 mm
Steel up to 600 N/mm²: 2.5 mm
Steel up to 800 N/mm²: 1.0 mm
Aluminum up to 200 N/mm²: 3.5 mm
Min Cutting RadiusOutside edge : 128 mm (5 - 1/16")
Inside edge : 120 mm (4 - 3/4")
Strokes Per Minute (SPM) : 1,300
Dimensions (L x W x H) : 225 x 90 x 254 mm (8-7/8 x -1/2 x 10")
Net Weight : 3.4 kg (7.5 lbs.)
Power Supply Cord : 2.5 m (8.2 ft)
Standard Equipment
Punch, Die, Wrench 50, Hex Wrench, Washer
